Linear - Mini Rail Carriages

Linear -> Mini Rail Carriages

There is only 1 product in the sub-categories of Linear - Mini Rail Carriages. Browse the Linear - Mini Rail Carriages products table.

Category Details

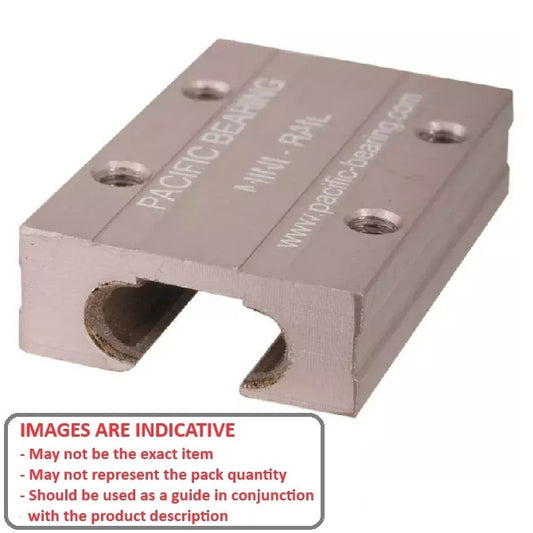

A selection of Mini Rail Carriages Linear. Carriages for the Mini-Rail system. Match by rail width. Rail sold separately.

  • Low profile self-lubricating linear guide system with one piece carriage design. Excellent alternative to linear ball bearing systems. Precision series made from RC70 ceramic coated rail with self lubricating Frelon Gold.
  • Dampens vibration and tolerates shock loads. Will not rust. No metal to metal contact. No balls or rolling elements to trap contamination, skid or damage rail.
  • Operation is consistent, smooth and quiet. Maintenance free. Used in packaging machines, medical equipment, wash-down and harsh environments.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Mini Rail Carriages category on the MBA Minibearings main store.
Suitable Rail Width Carraige Width (C) Carriage Length (D) Carriage Bolt Size (E) Carriage Bolt Distances Length Carriage Bolt Distances Width Indicative
Suitable Rail Width
12.00
mm

(Equiv. 0.472 in.)
Carraige Width (C)
27.00
mm

(Equiv. 1.063 in.)
Carriage Length (D)
34.00
mm

(Equiv. 1.339 in.)
Carriage Bolt Size (E)
M3
Carriage Bolt Distances Length
15.00
mm
Carriage Bolt Distances Width
20.00
mm

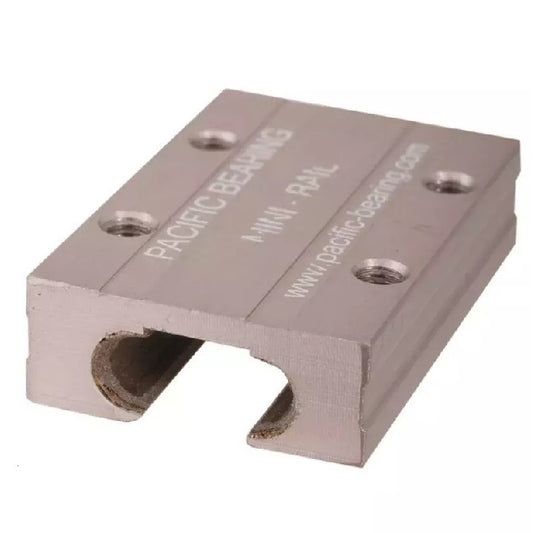

Mini Rail Carriages Linear - 12x27x34 mm - Aluminium
Material: Aluminium    K: 10.70 mm    N: 3.50 mm
Part Number: PBC-1214RS (Each)
Mini Rail Carriages Linear - 12x27x34 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026
$152.95 AUD
$152.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Suitable Rail Width Carraige Width (C) Carriage Length (D) Carriage Bolt Size (E) Indicative
Suitable Rail Width
12.00
mm

(Equiv. 0.472 in.)
Carraige Width (C)
27.00
mm

(Equiv. 1.063 in.)
Carriage Length (D)
34.00
mm

(Equiv. 1.339 in.)
Carriage Bolt Size (E)
M3
Mini Rail Carriages Linear - 12x27x34 mm - Aluminium
Material: Aluminium    Carriage Bolt Distances Length: 15.00 mm    Carriage Bolt Distances Width : 20.00 mm    K: 10.70 mm    N: 3.50 mm
Part Number: PBC-1214RS (Each)
Mini Rail Carriages Linear - 12x27x34 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026
$152.95 AUD
$152.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
