Linear - Guide System Two Piece

Linear -> Guide System Two Piece

There is only 1 product in the sub-categories of Linear - Guide System Two Piece. Browse the Linear - Guide System Two Piece products table.

Category Details

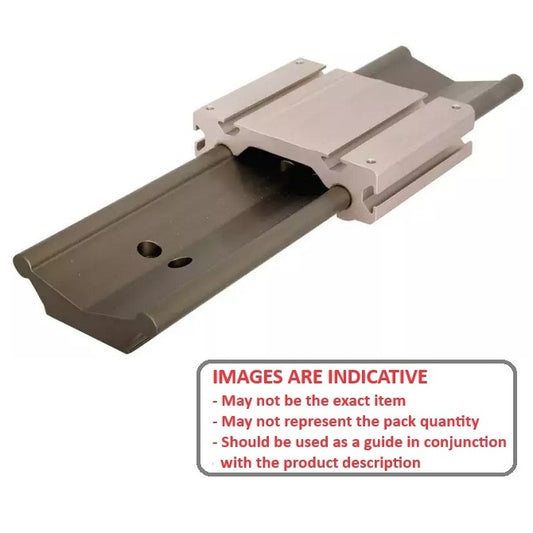

A selection of Guide System Two Piece Linear. Using Frelon Gold plain bearing technology. Rail and carriage are made from 6063-T6 aluminium and come as a set.

  • Rails are ceramic coated to resist corrosion and repel weld spatter and contaminants.
  • Smooth running. Dampens vibration. Guide has slots for T nuts or bolts. Two component system allows for easier installation than traditional rail systems.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Guide System Two Piece category on the MBA Minibearings main store.
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Carriage Width (G) Carriage Length (H) Indicative

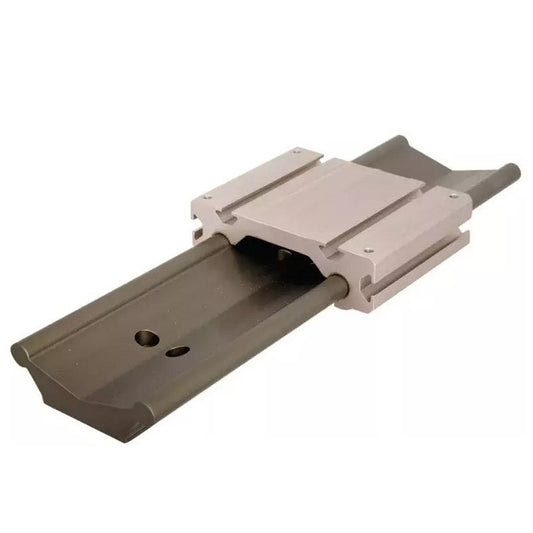

Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm

(Equiv. 2.95 in.)
C
19.050
mm

(Equiv. 0.75 in.)
Rail Bolt Centres (D)
101.600
mm

(Equiv. 4 in.)
Rail Height (F)
41.275
mm
Carriage Width (G)
116.840
mm
Carriage Length (H)
88.900
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,519.41 AUD
$1,519.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Indicative
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm

(Equiv. 2.95 in.)
C
19.050
mm

(Equiv. 0.75 in.)
Rail Bolt Centres (D)
101.600
mm

(Equiv. 4 in.)
Rail Height (F)
41.275
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 116.840 mm    Carriage Length (H): 88.900 mm    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,519.41 AUD
$1,519.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
