Linear - Cross Roller Slide Tables Low Profile - Aluminium

Linear -> Cross Roller Slide Tables Low Profile -> Aluminium

There is only 1 product in the sub-categories of Linear - Cross Roller Slide Tables Low Profile - Aluminium. Browse the Linear - Cross Roller Slide Tables Low Profile - Aluminium products table.

Category Details

A selection of Aluminium Cross Roller Slide Tables Low Profile Linear. Crossed roller slide tables are factory assembled and ready to install. They use crossed roller bearings to provide very precise linear motion with low friction and high support stiffness for the load.

  • Applications include precision instruments, office and communications equipment, surface grinders, tool grinders, assembly fixtures and anywhere precise linear positioning is required.
  • Precision ground v grooved ways and rollers provide high accuracy and load capacity. Withstands force in any direction from alternately crossed rollers at 45 deg angles.
  • Straight line accuracy 0.0025mm per 25mm travel (0.0001 inch per inch). 0.0025mm position repeatability.
  • Each table consists of a one piece base, a one piece table and a pair of linear bearings.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Cross Roller Slide Tables Low Profile - Aluminium category on the MBA Minibearings main store.
Travel Load Capacity Length (L) Height (A) / Width (B) Rail Height (C) Number of Holes(Base/Carriage) Indicative

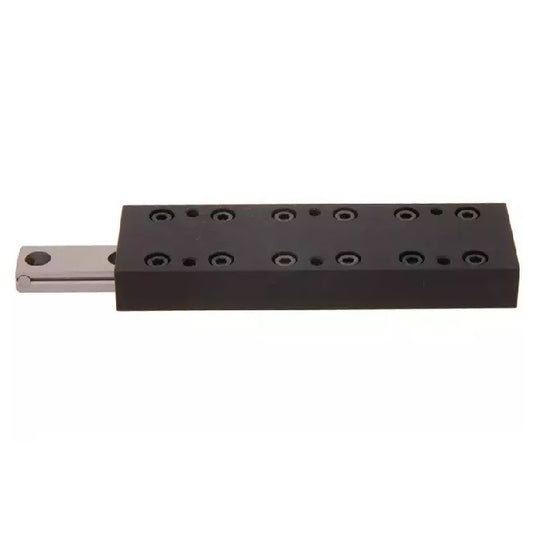

Cross Roller Slide Tables Low Profile Linear - 12.014 mm - 22.68 Kg - 24.994 mm - Aluminium
Travel
12.014
mm

(Equiv. 0.473 in.)
Load Capacity
22.680
Kg
Length (L)
24.994
mm

(Equiv. 0.984 in.)
Height (A) / Width (B)
8.00 / 20.02
mm
Rail Height (C)
4.013
mm
Number of Holes(Base/Carriage)
2 / 4
Cross Roller Slide Tables Low Profile Linear - 12.014 mm - 22.68 Kg - 24.994 mm - Aluminium
Material: Aluminium    Rail Bolt Spacing (U/W): 18.0 / -    R: 3.505 mm    Thread Size (Base): 3.94x2.57    Thread Size (Carriage): 2-56UNCx3.51 mm    Carriage Spacing (M / P): 14.0 mm    Bolt From Carriage End (N): 3.5 mm
Part Number: DT-401RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$888.86 AUD
$888.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Travel Load Capacity Length (L) Height (A) / Width (B) Indicative

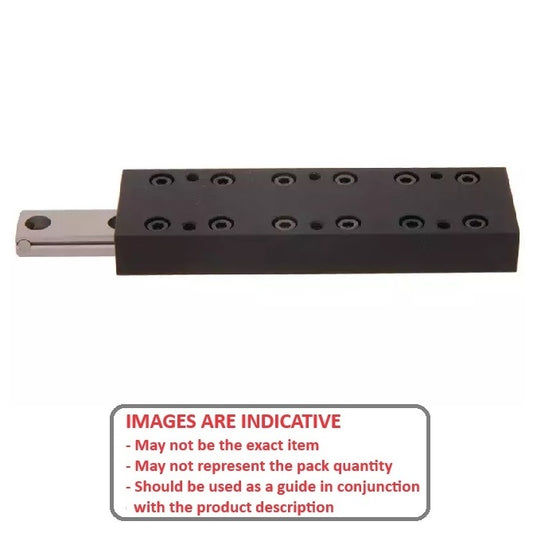

Cross Roller Slide Tables Low Profile Linear - 12.014 mm - 22.68 Kg - 24.994 mm - Aluminium
Travel
12.014
mm

(Equiv. 0.473 in.)
Load Capacity
22.680
Kg
Length (L)
24.994
mm

(Equiv. 0.984 in.)
Height (A) / Width (B)
8.00 / 20.02
mm
Cross Roller Slide Tables Low Profile Linear - 12.014 mm - 22.68 Kg - 24.994 mm - Aluminium
Material: Aluminium    Rail Height (C): 4.013 mm    Number of Holes(Base/Carriage): 2 / 4    Rail Bolt Spacing (U/W): 18.0 / -    R: 3.505 mm    Thread Size (Base): 3.94x2.57    Thread Size (Carriage): 2-56UNCx3.51 mm    Carriage Spacing (M / P): 14.0 mm    Bolt From Carriage End (N): 3.5 mm
Part Number: DT-401RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$888.86 AUD
$888.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
