Linear - Ball Spline Bearings Unflanged

1 Item Available

A selection of Ball Spline Bearings Unflanged Linear. Use with Linear Ball Spline Shaft.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Linear - Ball Spline Bearings Unflanged.
Suitable Shaft Diameter (d) Bearing OD (D) Bearing Length (L1) Main Body Length (L2) Indent Width (d2) Basic Load Rating (Dyn/Stat.) Indicative
Suitable Shaft Diameter (d)
2.00mm (Includes 50mm Length)
Bearing OD (D)
6.00
mm
Bearing Length (L1)
8.50
mm
Main Body Length (L2)
4.70
mm
Indent Width (d2)
1.20
mm
Basic Load Rating (Dyn/Stat.)
222 / 237
CN / CoN

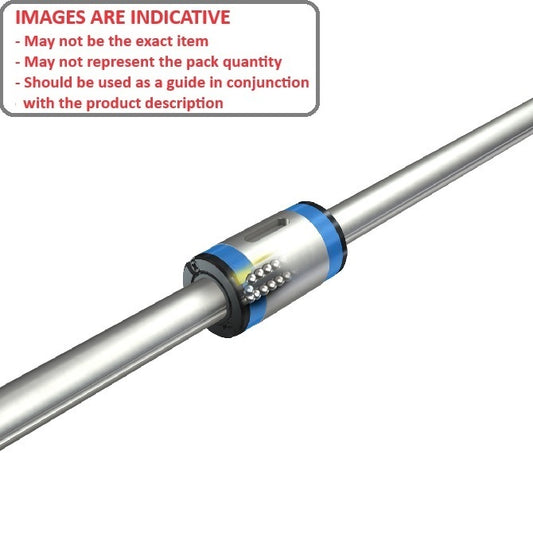

Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
Seals: None    Keyway ( W x t x k ): t = 0.7 mm
Part Number: LSAG2-C (Each) Ball Spline Bearings Unflanged Linear - Suitable Shaft Diameter - d - 2.00mm - Includes 50mm Length - 6x8.5 mm
9 Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$35.00 AUD
$66.50 AUD $35.00 AUD
Each
Suitable Shaft Diameter (d) Bearing OD (D) Bearing Length (L1) Main Body Length (L2) Indicative
Suitable Shaft Diameter (d)
2.00mm (Includes 50mm Length)
Bearing OD (D)
6.00
mm
Bearing Length (L1)
8.50
mm
Main Body Length (L2)
4.70
mm
Ball Spline Bearings Unflanged Linear - 2x6x8.5 mm
Indent Width (d2): 1.20 mm    Basic Load Rating (Dyn/Stat.): 222 / 237 CN / CoN    Seals: None    Keyway ( W x t x k ): t = 0.7 mm
Part Number: LSAG2-C (Each) Ball Spline Bearings Unflanged Linear - Suitable Shaft Diameter - d - 2.00mm - Includes 50mm Length - 6x8.5 mm
9 Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$35.00 AUD
$66.50 AUD $35.00 AUD
Each
