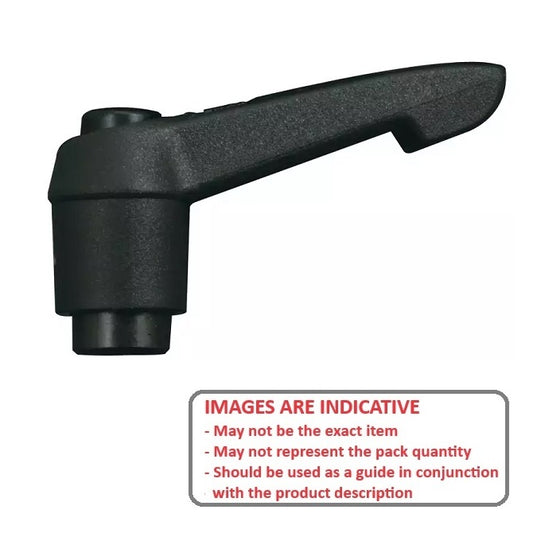

Levers - Clamp Standard

1 Item Available
  • Steel Parts: Quality class 5.8.
  • Handle: Diecast zinc to DIN 1743 or Glass fibre reinforced plastic with toothed wheel in diecast zinc.
  • Surface Finish: Handle plastic coated. Steel parts black oxide finish.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Levers - Clamp Standard.
Thread Size Lever Centre Length (C) - Colour Lever Length (A1) Lever Width (B) Indicative
M6 (6x1mm)
40.00
40.00
Black
47.00
mm 		7.50

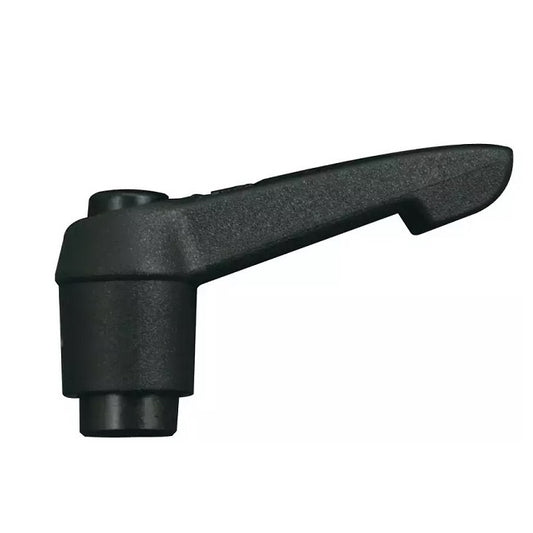

mm 		1066417 | CLB01M6-OUK --- Clamp Standard Levers - M6 -6x1mm- 40 - 40 - Steel with Plastic Coat
Material: Steel with Plastic Coat    Thread Length: 9.00 mm    Base Diameter (D / D1 / D2): 10 / 13 / 14.5 mm    Base Height (H): 24 mm    Base Height ( H1 / H2): 4 / 15 mm    Centre Height (H3): 29.5 mm    Centre Height (H4): 33.5 mm
Part Number: CLB01M6-OUK Clamp Standard Levers - M6 -6x1mm- 40 - 40 - Steel with Plastic Coat
2 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
Thread Size Lever Centre Length (C) - Colour Indicative
M6 (6x1mm)
40.00
40.00
Black
1066417 | CLB01M6-OUK --- Clamp Standard Levers - M6 -6x1mm- 40 - 40 - Steel with Plastic Coat
Material: Steel with Plastic Coat    Lever Length (A1): 47.00 mm    Lever Width (B): 7.50 mm    Thread Length: 9.00 mm    Base Diameter (D / D1 / D2): 10 / 13 / 14.5 mm    Base Height (H): 24 mm    Base Height ( H1 / H2): 4 / 15 mm    Centre Height (H3): 29.5 mm    Centre Height (H4): 33.5 mm
Part Number: CLB01M6-OUK Clamp Standard Levers - M6 -6x1mm- 40 - 40 - Steel with Plastic Coat
2 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
