Collection: Knobs - Lobe - Three Lobe - Female
Knobs -> Lobe -> Three Lobe -> FemaleThere are 6 products in the sub-categories of Knobs - Lobe - Three Lobe - Female. Browse the Knobs - Lobe - Three Lobe - Female products table. To narrow down the selection, please choose a sub-category from the links below.
Knobs - Lobe - Three Lobe - Female - Arched
A selection of Arched Female Three Lobe Lobe Knobs. Also see star...
Knobs - Lobe - Three Lobe - Female - Blind Hole Solid Top
A selection of Blind Hole Solid Top Female Three Lobe Lobe Knobs....
Knobs - Lobe - Three Lobe - Female - Soft Touch
A selection of Soft Touch Female Three Lobe Lobe Knobs. Also see...

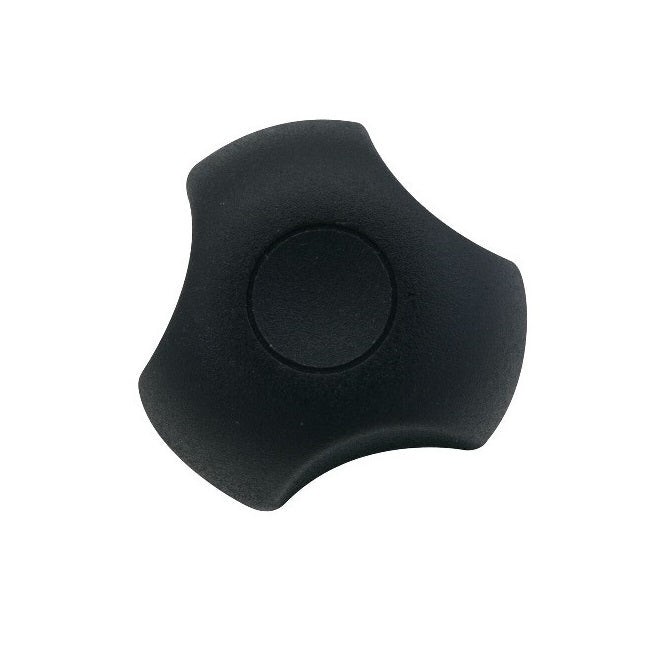

Knobs - Lobe - Three Lobe - Female - Standard
A selection of Standard Female Three Lobe Lobe Knobs. Also see star...
Knobs - Lobe - Three Lobe - Female - Through Hole
A selection of Through Hole Female Three Lobe Lobe Knobs. Also see...
Category Details
This category includes various types of lobe knobs.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Knobs - Lobe - Three Lobe - Female category on the MBA Minibearings main store.
| Thread Size | Head Diameter (A) | Thread Length | Colour | Hub Diameter (C) | Hub Length (D) |
Indicative Image |
|---|---|---|---|---|---|---|
| Lobe Knobs - 10-24 UNC - 4.76mm - 24.89x8.9 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
10-24 UNC (4.76mm)
|
Head Diameter (A)
24.89
mm (Equiv. 0.98 in.) |
Thread Length
8.9
mm (Equiv. 0.35 in.) |
Colour
Black
|
Hub Diameter (C)
12.95
mm |
Hub Length (D)
5.08
mm |
|
|
Material: Brass
Recess Diameter (E): 16.00 mm
Category: Knobs - Lobe - Three Lobe - Female - Standard |
||||||
|
Part Number: KF048C-025-3L (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size | Head Diameter (A) | Thread Length | Colour |
Indicative Image |
||
| Lobe Knobs - 10-24 UNC - 4.76mm - 24.89x8.9 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
10-24 UNC (4.76mm)
|
Head Diameter (A)
24.89
mm (Equiv. 0.98 in.) |
Thread Length
8.9
mm (Equiv. 0.35 in.) |
Colour
Black
|
|
||
|
Material: Brass
Hub Diameter (C): 12.95 mm
Hub Length (D): 5.08 mm
Recess Diameter (E): 16.00 mm
Category: Knobs - Lobe - Three Lobe - Female - Standard |
||||||
|
Part Number: KF048C-025-3L (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

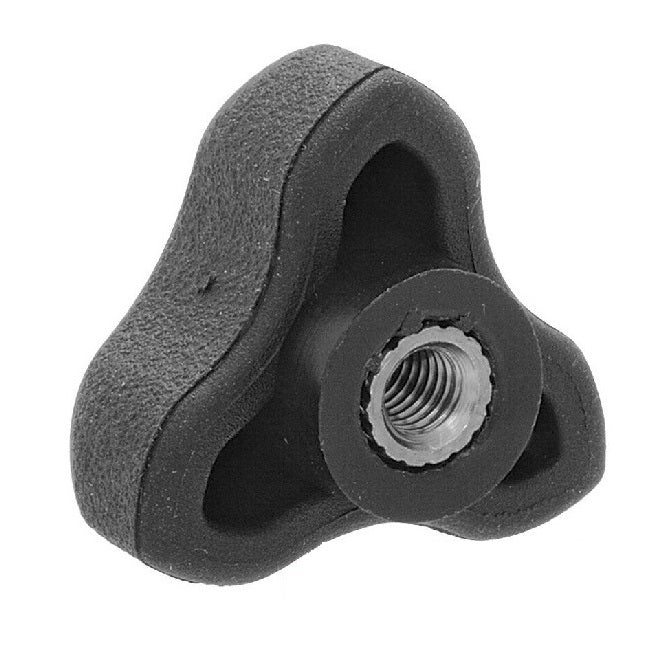

| Lobe Knobs - 10-32 UNF - 4.76mm - 29.97x14 mm Three Lobe - Zinc Plated Brass Knob | ||||||
|
Thread Size
10-32 UNF (4.76mm)
|
Head Diameter (A)
29.97
mm (Equiv. 1.18 in.) |
Thread Length
14.0
mm (Equiv. 0.551 in.) |
Colour
Black
|
Hub Diameter (C)
12.70
mm |
Hub Length (D)
3.81
mm |
|
|
Material: Zinc Plated Brass
Knob Height (B): 17.02 mm
Category: Knobs - Lobe - Three Lobe - Female - Soft Touch |
||||||
|
Part Number: KF048F-030-3L-SFT (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$3.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Lobe Knobs - 10-32 UNF - 4.76mm - 29.97x14 mm Three Lobe - Zinc Plated Brass Knob | ||||||
|
Thread Size
10-32 UNF (4.76mm)
|
Head Diameter (A)
29.97
mm (Equiv. 1.18 in.) |
Thread Length
14.0
mm (Equiv. 0.551 in.) |
Colour
Black
|
|
||
|
Material: Zinc Plated Brass
Hub Diameter (C): 12.70 mm
Hub Length (D): 3.81 mm
Knob Height (B): 17.02 mm
Category: Knobs - Lobe - Three Lobe - Female - Soft Touch |
||||||
|
Part Number: KF048F-030-3L-SFT (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$3.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Lobe Knobs - 1/4-20 UNC - 6.35mm - 19.05x9.5 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
19.05
mm (Equiv. 0.75 in.) |
Thread Length
9.5
mm (Equiv. 0.374 in.) |
Colour
Black
|
Hub Diameter (C)
11.11
mm |
Hub Length (D)
11.51
mm |
|
|
Material: Brass
Knob Height (B): 7.14 mm
Recess Diameter (E): 7.52 mm
Category: Knobs - Lobe - Three Lobe - Female - Blind Hole Solid Top Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: KF064C-019-3L-BHST (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||

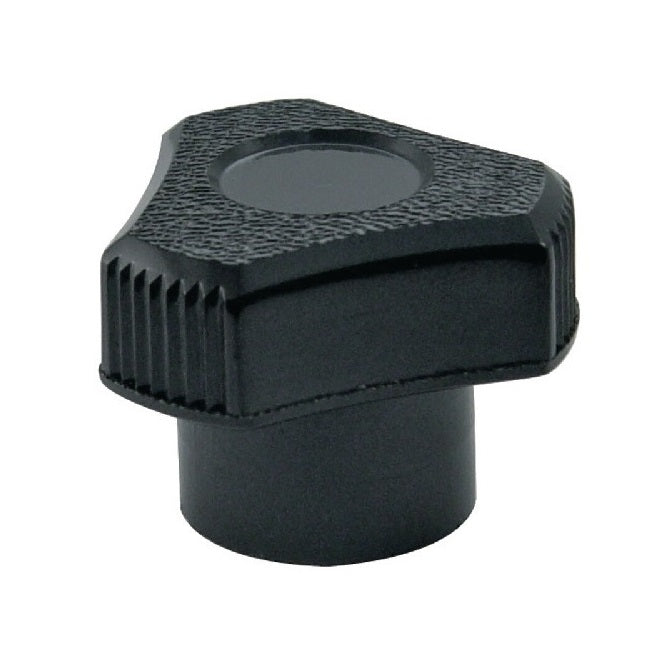

| Lobe Knobs - 1/4-20 UNC - 6.35mm - 19.05x9.5 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
19.05
mm (Equiv. 0.75 in.) |
Thread Length
9.5
mm (Equiv. 0.374 in.) |
Colour
Black
|
|
||
|
Material: Brass
Hub Diameter (C): 11.11 mm
Hub Length (D): 11.51 mm
Knob Height (B): 7.14 mm
Recess Diameter (E): 7.52 mm
Category: Knobs - Lobe - Three Lobe - Female - Blind Hole Solid Top Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: KF064C-019-3L-BHST (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

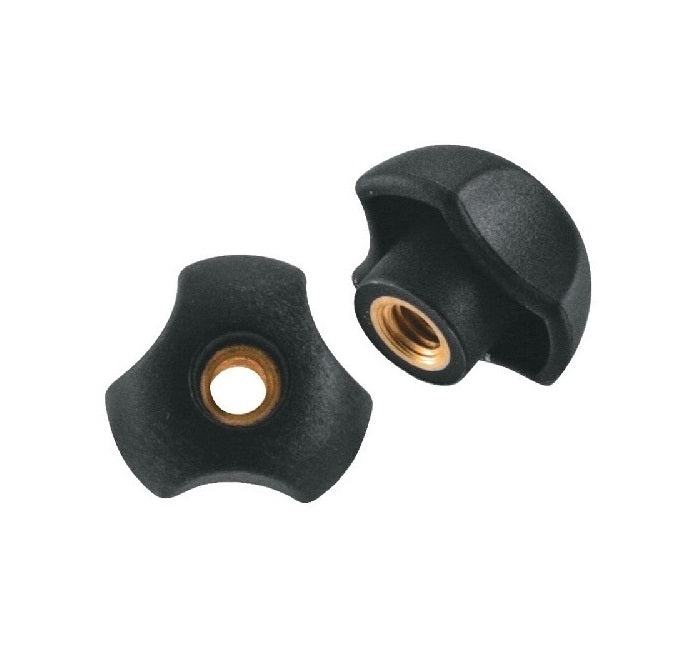

| Lobe Knobs - 1/4-20 UNC - 6.35mm - 24.89x10.9 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
24.89
mm (Equiv. 0.98 in.) |
Thread Length
10.9
mm (Equiv. 0.429 in.) |
Colour
Black
|
Hub Diameter (C)
12.95
mm |
Hub Length (D)
5.08
mm |
|
|
Material: Brass
Recess Diameter (E): 16.00 mm
Category: Knobs - Lobe - Three Lobe - Female - Through Hole |
||||||
|
Part Number: KF064C-025-3L-P (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$36.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Lobe Knobs - 1/4-20 UNC - 6.35mm - 24.89x10.9 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
24.89
mm (Equiv. 0.98 in.) |
Thread Length
10.9
mm (Equiv. 0.429 in.) |
Colour
Black
|
|
||
|
Material: Brass
Hub Diameter (C): 12.95 mm
Hub Length (D): 5.08 mm
Recess Diameter (E): 16.00 mm
Category: Knobs - Lobe - Three Lobe - Female - Through Hole |
||||||
|
Part Number: KF064C-025-3L-P (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$36.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Lobe Knobs - 1/4-20 UNC - 6.35mm - 31.75x9.5 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
31.75
mm (Equiv. 1.25 in.) |
Thread Length
9.5
mm (Equiv. 0.374 in.) |
Colour
Black
|
Hub Diameter (C)
19.05
mm |
Hub Length (D)
11.11
mm |
|
|
Material: Brass
Knob Height (B): 11.11 mm
Recess Diameter (E): 12.95 mm
Category: Knobs - Lobe - Three Lobe - Female - Blind Hole Solid Top |
||||||
|
Part Number: KF064C-032-3L-BHST (Each)
6 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$3.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Lobe Knobs - 1/4-20 UNC - 6.35mm - 31.75x9.5 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
1/4-20 UNC (6.35mm)
|
Head Diameter (A)
31.75
mm (Equiv. 1.25 in.) |
Thread Length
9.5
mm (Equiv. 0.374 in.) |
Colour
Black
|
|
||
|
Material: Brass
Hub Diameter (C): 19.05 mm
Hub Length (D): 11.11 mm
Knob Height (B): 11.11 mm
Recess Diameter (E): 12.95 mm
Category: Knobs - Lobe - Three Lobe - Female - Blind Hole Solid Top |
||||||
|
Part Number: KF064C-032-3L-BHST (Each)
6 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$3.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

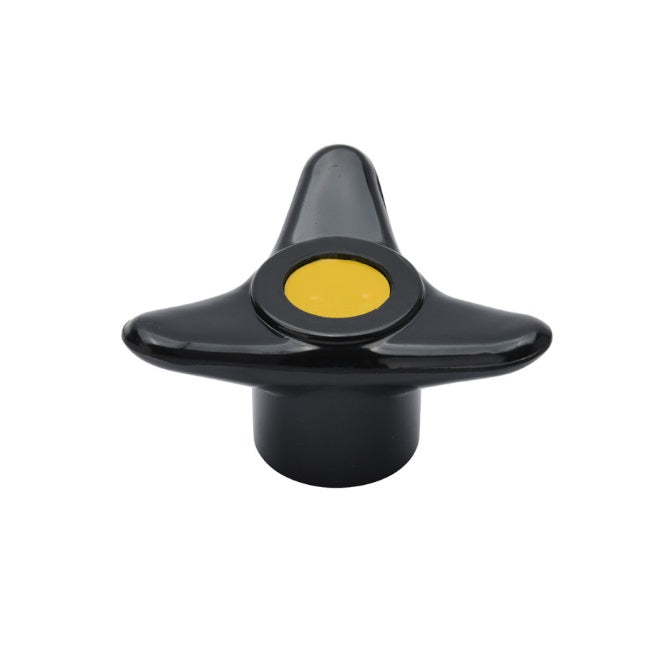

| Lobe Knobs - M10 - 10x1.5mm - 80x17 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
M10 (10x1.5mm)
+ 0.10 / - 0.00
|
Head Diameter (A)
80.0
mm + 0.00 / - 0.10 (Equiv. 3.15 in.) |
Thread Length
17.0
mm + 0.00 / - 0.12 (Equiv. 0.669 in.) |
Colour
Black
|
Hub Diameter (C)
30.00
mm |
Hub Length (D)
17.00
mm |
|
|
Material: Brass
Knob Height (B): 38.0 mm
Category: Knobs - Lobe - Three Lobe - Female - Arched |
||||||
|
Part Number: KF100M-080-3LA (PK-4)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$60.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Lobe Knobs - M10 - 10x1.5mm - 80x17 mm Three Lobe - Brass Knob | ||||||
|
Thread Size
M10 (10x1.5mm)
+ 0.10 / - 0.00 |
Head Diameter (A)
80.0
mm + 0.00 / - 0.10 (Equiv. 3.15 in.) |
Thread Length
17.0
mm + 0.00 / - 0.12 (Equiv. 0.669 in.) |
Colour
Black
|
|
||
|
Material: Brass
Hub Diameter (C): 30.00 mm
Hub Length (D): 17.00 mm
Knob Height (B): 38.0 mm
Category: Knobs - Lobe - Three Lobe - Female - Arched |
||||||
|
Part Number: KF100M-080-3LA (PK-4)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$60.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
