Collection: Inserts - Tapered Fit Finserts For Wood and Plastics
- Inserts (With Images)
- Tapered Fit Finserts For Wood and Plastics
2 Products in this selection

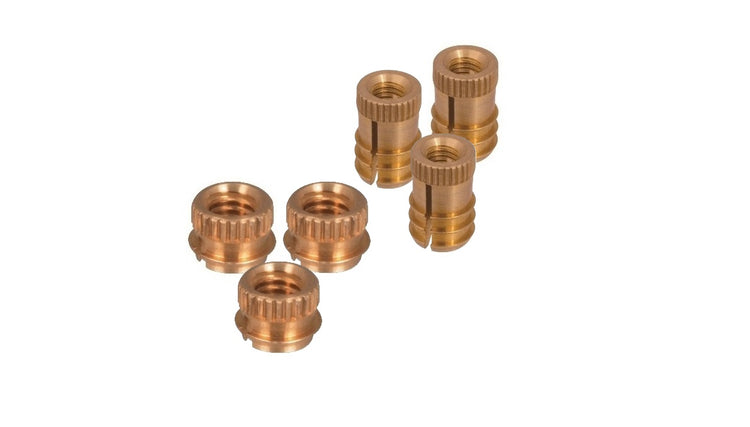

- Finserts provide strong metal threads in wood, composition board and thermoplastics such as nylon, polystyrene, cellulose acetate and cycolac. By distributing stress over a greater surface area, firm permanent fastening is ensured.
- The fins give higher holding strength in softer materials
- Available with one, two or three fins for varying material thickness
- Finserts prevent splintering, splitting and thread pullout.
Additional resources:
A more comprehensive listing may be found on the MBA Minibearings main store at Inserts - Tapered Fit Finserts For Wood and Plastics.
A more comprehensive listing may be found on the MBA Minibearings main store at Inserts - Tapered Fit Finserts For Wood and Plastics.
| Internal Thread | Hole Size | Length | A | B | C |
Indicative Image |
|---|---|---|---|---|---|---|
|
10-32 UNF (4.76mm)
|
8.74
mm |
14.3
mm |
8.814
mm |
9.347
mm |
8.077
mm |
|
| Number of Fins: 3 | ||||||
|
Part Number: IN-PF-0476F-143-W (2 Pcs) Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 8.74x14.3 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Apr 30, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
| Internal Thread | Hole Size | Length | A |
Indicative Image |
||
|
10-32 UNF (4.76mm)
|
8.74
mm |
14.3
mm |
8.814
mm |
|
||
| B: 9.347 mm C: 8.077 mm Number of Fins: 3 | ||||||
|
Part Number: IN-PF-0476F-143-W (2 Pcs) Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 8.74x14.3 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Apr 30, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
1/4-20 UNC (6.35mm)
|
10.31
mm |
10.947
mm |
10.389
mm |
10.947
mm |
9.677
mm |
|
| Number of Fins: 3 | ||||||
|

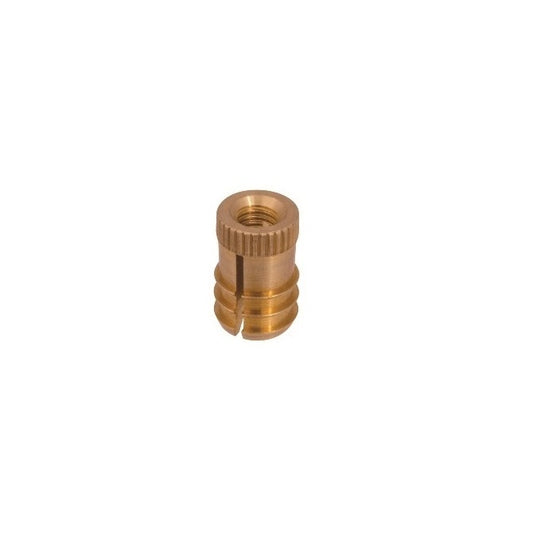

Part Number: IN-PF-0635C-143-W (2 Pcs) Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 10.31x10.947 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Apr 30, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
1/4-20 UNC (6.35mm)
|
10.31
mm |
10.947
mm |
10.389
mm |
|
||
| B: 10.947 mm C: 9.677 mm Number of Fins: 3 | ||||||
|
Part Number: IN-PF-0635C-143-W (2 Pcs) Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 10.31x10.947 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Apr 30, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
