Collection: Inserts - Self Tapping - For Plastics
Inserts -> Self Tapping -> For PlasticsThere are 3 products in the sub-categories of Inserts - Self Tapping - For Plastics. Browse the Inserts - Self Tapping - For Plastics products table. To narrow down the selection, please choose a sub-category from the links below.
Inserts - Self Tapping - For Plastics - Stainless Steel
A selection of Stainless Steel For Plastics Self Tapping Inserts. Threaded inserts...
Inserts - Self Tapping - For Plastics - Steel
A selection of Steel For Plastics Self Tapping Inserts. Threaded inserts are...
Category Details
This category includes various types of self tapping inserts.
- Threaded bushing with external threads that cuts its own internal threads into a pre-drilled hole.
- Creates a permanent, wear-resistant, and strong machine thread in materials such as aluminum, brass, cast iron, and plastics, without the need for a pre-tapped hole.
- Used for strengthening materials, providing durable fastening points for machine screws, and repairing damaged threads.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Inserts - Self Tapping - For Plastics category on the MBA Minibearings main store.
| Internal Thread | Rec. Hole Diameter | Length (L) | Outside Diameter (B) |
Indicative Image |
|---|---|---|---|---|
|
Internal Thread
10-24 UNC (4.76mm)
|
Rec. Hole Diameter
7.09
mm (Equiv. 0.279 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Outside Diameter (B)
8.001
mm |
|
|
Material: Steel
Required Hole Depth: 13.005 mm
Category: Inserts - Self Tapping - For Plastics - Steel |
||||
|
Part Number: IN-TP-048C-100-P (Each)
Self Tapping Inserts - 10-24 UNC - 4.76mm - 7.09x10 mm For Plastics - Steel Insert 10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$2.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Internal Thread | Rec. Hole Diameter | Length (L) | Outside Diameter (B) |
Indicative Image |
|
Internal Thread
10-24 UNC (4.76mm)
|
Rec. Hole Diameter
7.09
mm (Equiv. 0.279 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Outside Diameter (B)
8.001
mm |
|
|
Material: Steel
Required Hole Depth: 13.005 mm
Category: Inserts - Self Tapping - For Plastics - Steel |
||||
|
Part Number: IN-TP-048C-100-P (Each)
Self Tapping Inserts - 10-24 UNC - 4.76mm - 7.09x10 mm For Plastics - Steel Insert 10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$2.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
|
Internal Thread
1/4-20 UNC (6.35mm)
|
Rec. Hole Diameter
8.59
mm (Equiv. 0.338 in.) |
Length (L)
14.0
mm (Equiv. 0.551 in.) |
Outside Diameter (B)
10.00
mm |
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Required Hole Depth: 17.00 mm
Category: Inserts - Self Tapping - For Plastics - Stainless Steel |
||||
|
Part Number: IN-TP-064C-14-P-S3 (Each)

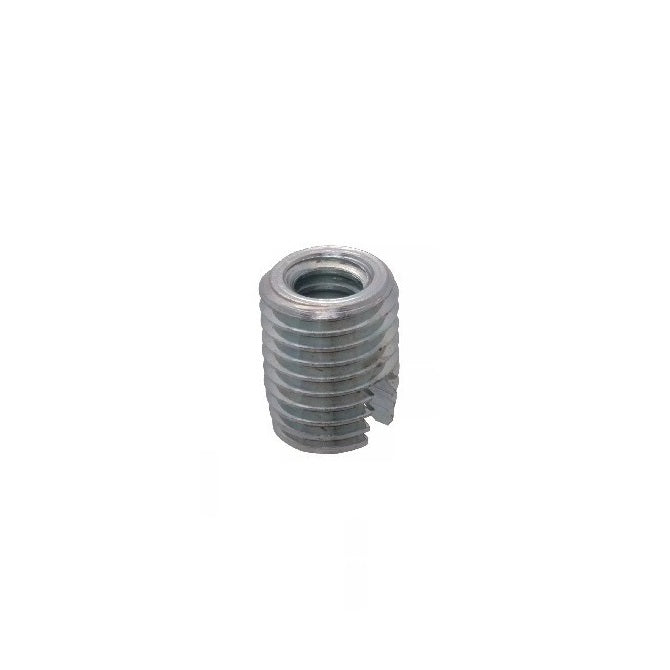

Self Tapping Inserts - 1/4-20 UNC - 6.35mm - 8.59x14 mm For Plastics - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Insert 10 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
Internal Thread
1/4-20 UNC (6.35mm)
|
Rec. Hole Diameter
8.59
mm (Equiv. 0.338 in.) |
Length (L)
14.0
mm (Equiv. 0.551 in.) |
Outside Diameter (B)
10.00
mm |
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Required Hole Depth: 17.00 mm
Category: Inserts - Self Tapping - For Plastics - Stainless Steel |
||||
|
Part Number: IN-TP-064C-14-P-S3 (Each)
Self Tapping Inserts - 1/4-20 UNC - 6.35mm - 8.59x14 mm For Plastics - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Insert 10 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
|
Internal Thread
1/4-20 UNC (6.35mm)
|
Rec. Hole Diameter
8.59
mm (Equiv. 0.338 in.) |
Length (L)
14.0
mm (Equiv. 0.551 in.) |
Outside Diameter (B)
10.008
mm |
|
|
Material: Steel
Required Hole Depth: 16.993 mm
Category: Inserts - Self Tapping - For Plastics - Steel |
||||
|
Part Number: IN-TP-064C-140-P (PK-100)
Self Tapping Inserts - 1/4-20 UNC - 6.35mm - 8.59x14 mm For Plastics - Steel Insert Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$636.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||
|
Internal Thread
1/4-20 UNC (6.35mm)
|
Rec. Hole Diameter
8.59
mm (Equiv. 0.338 in.) |
Length (L)
14.0
mm (Equiv. 0.551 in.) |
Outside Diameter (B)
10.008
mm |
|
|
Material: Steel
Required Hole Depth: 16.993 mm
Category: Inserts - Self Tapping - For Plastics - Steel |
||||
|
Part Number: IN-TP-064C-140-P (PK-100)
Self Tapping Inserts - 1/4-20 UNC - 6.35mm - 8.59x14 mm For Plastics - Steel Insert Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$636.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||
|
||||
