Housings - Square - Miniature

3 Products in this selection

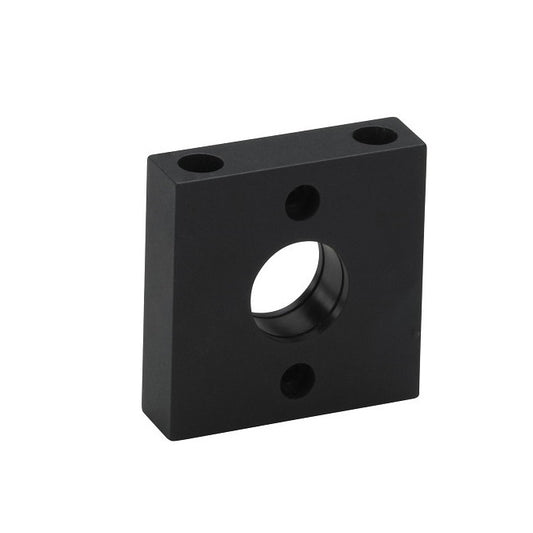

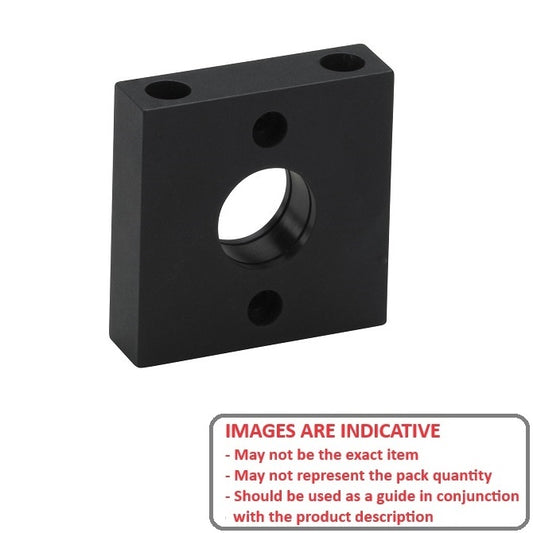

  • Aluminium housings to suit standard radial ball bearings.
  • Use with standard radial ball bearings.
  • Bearing not included.
  • Can be through screwed from the top using socket head cap screws.
  • Can be bolted from the bottom using the pre-tapped holes.
  • Made from Aluminium 6082-T6 Black Anodised.
To Suit Bearing OD (d H7) Width (L) Length (B and H) Through Screw Head (Px0) Through Screw Size Bottom Tapped Hole (TxN) Indicative
16.000
mm 		14.0
mm 		32.0
mm 		7.5 x 4.3
mm 		M4 (Hole is 4.3mm)
 M5 x 12
mm 		1114366 | HSGSQ-16.00X14.00 --- Housings - 16 mm x 14 mm x 32 mm
Screw Hole Centres (E): 22.0 mm    Weight: 0.03 kg
Part Number: HSGSQ-16.00X14.00 Housings - 16 mm x 14 mm x 32 mm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$0.00 AUD $20.00 AUD
Each
To Suit Bearing OD (d H7) Width (L) Length (B and H) Through Screw Head (Px0) Indicative
16.000
mm 		14.0
mm 		32.0
mm 		7.5 x 4.3
mm 		1114366 | HSGSQ-16.00X14.00 --- Housings - 16 mm x 14 mm x 32 mm
Through Screw Size: M4 (Hole is 4.3mm)    Bottom Tapped Hole (TxN): M5 x 12 mm    Screw Hole Centres (E): 22.0 mm    Weight: 0.03 kg
Part Number: HSGSQ-16.00X14.00 Housings - 16 mm x 14 mm x 32 mm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$20.00 AUD
$0.00 AUD $20.00 AUD
Each
19.000
mm 		16.0
mm 		38.0
mm 		9.0 x 5.3
mm 		M5 (Hole is 5.3mm)
 M6 x 14
mm 		1120006 | HSGSQ-19.00X16.00 --- Housings - 19 mm x 16 mm x 38 mm
Screw Hole Centres (E): 28.0 mm    Weight: 0.05 kg
Part Number: HSGSQ-19.00X16.00 Housings - 19 mm x 16 mm x 38 mm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$0.00 AUD $20.00 AUD
Each
19.000
mm 		16.0
mm 		38.0
mm 		9.0 x 5.3
mm 		1120006 | HSGSQ-19.00X16.00 --- Housings - 19 mm x 16 mm x 38 mm
Through Screw Size: M5 (Hole is 5.3mm)    Bottom Tapped Hole (TxN): M6 x 14 mm    Screw Hole Centres (E): 28.0 mm    Weight: 0.05 kg
Part Number: HSGSQ-19.00X16.00 Housings - 19 mm x 16 mm x 38 mm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$20.00 AUD
$0.00 AUD $20.00 AUD
Each
22.000
mm 		18.0
mm 		42.0
mm 		9.0 x 5.3
mm 		M5 (Hole is 5.3mm)
 M6 x 14
mm 		1128025 | HSGSQ-22.00X18.00 --- Housings - 22 mm x 18 mm x 42 mm
Screw Hole Centres (E): 30.0 mm    Weight: 0.07 kg
Part Number: HSGSQ-22.00X18.00 Housings - 22 mm x 18 mm x 42 mm
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$42.00 AUD
$0.00 AUD $42.00 AUD
Each
22.000
mm 		18.0
mm 		42.0
mm 		9.0 x 5.3
mm 		1128025 | HSGSQ-22.00X18.00 --- Housings - 22 mm x 18 mm x 42 mm
Through Screw Size: M5 (Hole is 5.3mm)    Bottom Tapped Hole (TxN): M6 x 14 mm    Screw Hole Centres (E): 30.0 mm    Weight: 0.07 kg
Part Number: HSGSQ-22.00X18.00 Housings - 22 mm x 18 mm x 42 mm
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$42.00 AUD
$0.00 AUD $42.00 AUD
Each
