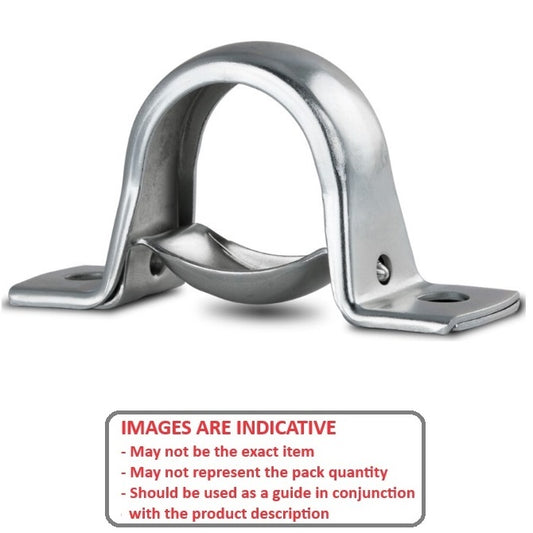

Housings - Pressed Metal Pillow Block

1 Item Available
  • Bearings sold separately.
  • Use with steel bearing inserts for pressed metal housings.
  • Larger sizes available on request.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Housings - Pressed Metal Pillow Block.
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Bearing Width (B) Centre Height (ch) Indicative
56.600
mm 		108.000
mm 		32.000
mm 		86.000
mm 		27.000
mm 		28.600
mm 		1167030 | PP5Z2 --- Pressed Metal Pillow Block Housings - 56.6x108x32 mm
To Suit Bearing: B5    Bolt Hole Size (s): 11.000 mm
Part Number: PP5Z2 Pressed Metal Pillow Block Housings - 56.6x108x32 mm
1 Available Now | Further orders can be expected around Tue, Apr 15, 2025
$10.23 AUD
$10.23 AUD
Each
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Indicative
56.600
mm 		108.000
mm 		32.000
mm 		86.000
mm 		1167030 | PP5Z2 --- Pressed Metal Pillow Block Housings - 56.6x108x32 mm
Bearing Width (B): 27.000 mm    Centre Height (ch): 28.600 mm    To Suit Bearing: B5    Bolt Hole Size (s): 11.000 mm
Part Number: PP5Z2 Pressed Metal Pillow Block Housings - 56.6x108x32 mm
1 Available Now | Further orders can be expected around Tue, Apr 15, 2025
$10.23 AUD
$10.23 AUD
Each
View the product page first if you are unsure.
