Housings - Flanged - Round Cast Iron

3 Products in this selection

Lubrication Groove.
Bearings sold separately.
Larger sizes available on request.
Use with steel bearing inserts for cast iron housings.

Height (H)	Ass. Width to Base (W)	Width of Spigot (a3)	Bolt Circle Diameter (J1)	Base Width (A1)	Bearing Width (B)
100 mm	28.300 mm	5.000 mm	78.000 mm	7.000 mm	31.000 mm
To Suit Bearing: UC201 - UC202 - UC203 - UC204 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 55.100 mm Hsg. Width (excl. Spigot hW): 20.50 mm
Part Number: FC204 Flanged Housings - 100 mm x 28.3 mm x 5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each View the product page first if you are unsure ->

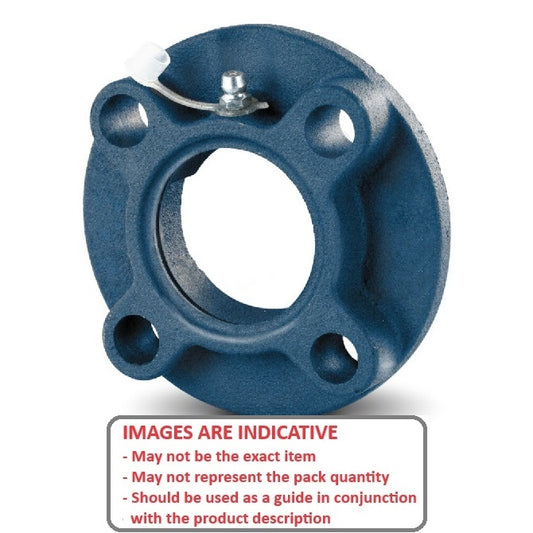

Height (H)	Ass. Width to Base (W)	Width of Spigot (a3)	Bolt Circle Diameter (J1)	Indicative Image
100 mm	28.300 mm	5.000 mm	78.000 mm
Base Width (A1): 7.000 mm Bearing Width (B): 31.000 mm To Suit Bearing: UC201 - UC202 - UC203 - UC204 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 55.100 mm Hsg. Width (excl. Spigot hW): 20.50 mm
Part Number: FC204 Flanged Housings - 100 mm x 28.3 mm x 5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each View the product page first if you are unsure.
FC204 --- Flanged Housings - 100 mm x 28.3 mm x 5 mm FC204 --- Flanged Housings - 100 mm x 28.3 mm x 5 mm Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Out of stock! Backorder Now
115.000 mm	29.700 mm	6.000 mm	90.000 mm	7.000 mm	34.000 mm
To Suit Bearing: UC205 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 63.600 mm Hsg. Width (excl. Spigot hW): 21.000 mm

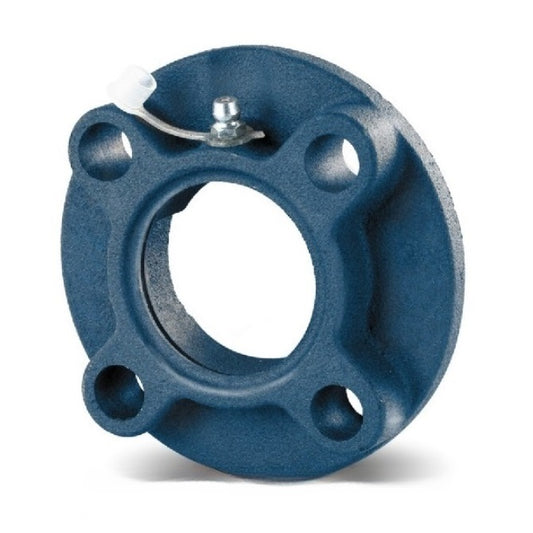

Part Number: FC205 Flanged Housings - 115 mm x 29.7 mm x 6 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure ->
115.000 mm	29.700 mm	6.000 mm	90.000 mm
Base Width (A1): 7.000 mm Bearing Width (B): 34.000 mm To Suit Bearing: UC205 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 63.600 mm Hsg. Width (excl. Spigot hW): 21.000 mm
Part Number: FC205 Flanged Housings - 115 mm x 29.7 mm x 6 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Each View the product page first if you are unsure.
FC205 --- Flanged Housings - 115 mm x 29.7 mm x 6 mm FC205 --- Flanged Housings - 115 mm x 29.7 mm x 6 mm Regular price $30.95 AUD Regular price Sale price $30.95 AUD Unit price per Out of stock! Backorder Now
125.000 mm	32.200 mm	8.000 mm	100.000 mm	8.000 mm	38.100 mm
To Suit Bearing: UC206 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 70.700 mm Hsg. Width (excl. Spigot hW): 23.000 mm
Part Number: FC206 Flanged Housings - 125 mm x 32.2 mm x 8 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each View the product page first if you are unsure ->
125.000 mm	32.200 mm	8.000 mm	100.000 mm
Base Width (A1): 8.000 mm Bearing Width (B): 38.100 mm To Suit Bearing: UC206 Bolt Hole Size (s): 12.000 mm Bolt Hole Centres (J): 70.700 mm Hsg. Width (excl. Spigot hW): 23.000 mm
Part Number: FC206 Flanged Housings - 125 mm x 32.2 mm x 8 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Jan 24, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each View the product page first if you are unsure.
FC206 --- Flanged Housings - 125 mm x 32.2 mm x 8 mm FC206 --- Flanged Housings - 125 mm x 32.2 mm x 8 mm Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Out of stock! Backorder Now
