Housings - Cast Iron Pillow Block

Housings -> Cast Iron Pillow Block

There is only 1 product in the sub-categories of Housings - Cast Iron Pillow Block. Browse the Housings - Cast Iron Pillow Block products table.

Category Details

A selection of Cast Iron Pillow Block Housings. Lubrication Groove.

  • An expanded range may be available on special order. Please enquire.
  • Bearings sold separately.
  • Larger sizes available on request.
  • Use with steel bearing inserts for cast iron housings.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Housings - Cast Iron Pillow Block category on the MBA Minibearings main store.
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Centre Height (cH) Bearing Width (B) Indicative

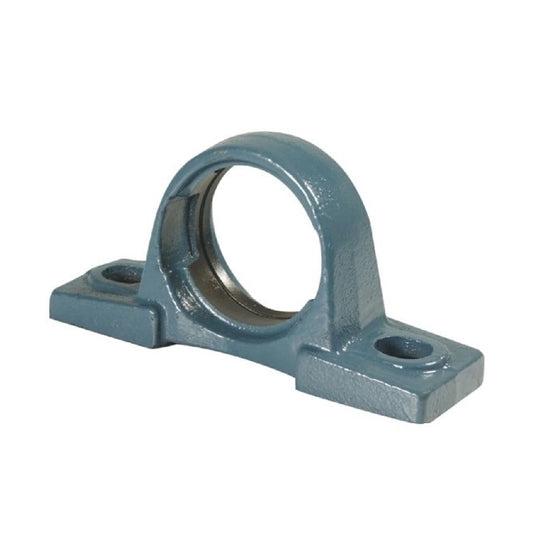

Cast Iron Pillow Block Housings - 83x165x48 mm - Cast Iron Housing
Height (H)
83.000
mm

(Equiv. 3.268 in.)
Length (L)
165.000
mm

(Equiv. 6.496 in.)
Base Width (W)
48.000
mm

(Equiv. 1.89 in.)
Bolt Hole Centres (J)
121.000
mm
Centre Height (cH)
42.900
mm
Bearing Width (B)
38.100
mm

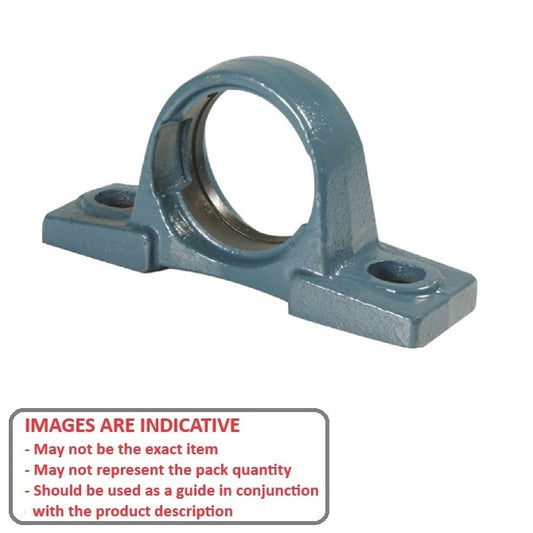

Cast Iron Pillow Block Housings - 83x165x48 mm
Material: Cast Iron    To Suit Bearing: UC206    Bolt Hole Size (s): 17 x 21 mm
Part Number: P206 (Each)
5 Available Now | Further orders can be expected around Thu, Jan 08, 2026
$27.86 AUD
$27.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 5 available can be backordered.
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Indicative
Cast Iron Pillow Block Housings - 83x165x48 mm - Cast Iron Housing
Height (H)
83.000
mm

(Equiv. 3.268 in.)
Length (L)
165.000
mm

(Equiv. 6.496 in.)
Base Width (W)
48.000
mm

(Equiv. 1.89 in.)
Bolt Hole Centres (J)
121.000
mm
Cast Iron Pillow Block Housings - 83x165x48 mm
Material: Cast Iron    Centre Height (cH): 42.900 mm    Bearing Width (B): 38.100 mm    To Suit Bearing: UC206    Bolt Hole Size (s): 17 x 21 mm
Part Number: P206 (Each)
5 Available Now | Further orders can be expected around Thu, Jan 08, 2026
$27.86 AUD
$27.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
