Housing and Bearing Assembly - Offset - Thermoplastic and Stainless

Housing and Bearing Assembly -> Offset -> Thermoplastic and Stainless

There is only 1 product in the sub-categories of Housing and Bearing Assembly - Offset - Thermoplastic and Stainless. Browse the Housing and Bearing Assembly - Offset - Thermoplastic and Stainless products table.

Category Details

A selection of Thermoplastic and Stainless Offset Housing and Bearing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Offset type have the mounting holes adjacent to the bearing shaft.
  • Food grade.
  • Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
  • Excellent mechanical, thermal and electrical properties.
  • Operational temperature -20 to +100 oC
  • Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Housing and Bearing Assembly - Offset - Thermoplastic and Stainless category on the MBA Minibearings main store.
Inside Diameter Centre Height (A) Length (B) Width (C) Foot Height (D) Bolt Centres (E) Indicative
Offset Housing and Bearing Assembly - 12.7x63.5x61.9 mm Thermoplastic and Stainless
Inside Diameter
12.700
mm

(Equiv. 0.5 in.)
Centre Height (A)
63.500
mm

(Equiv. 2.5 in.)
Length (B)
61.900
mm

(Equiv. 2.437 in.)
Width (C)
38.100
mm
Foot Height (D)
11.100
mm
Bolt Centres (E)
33.325
mm

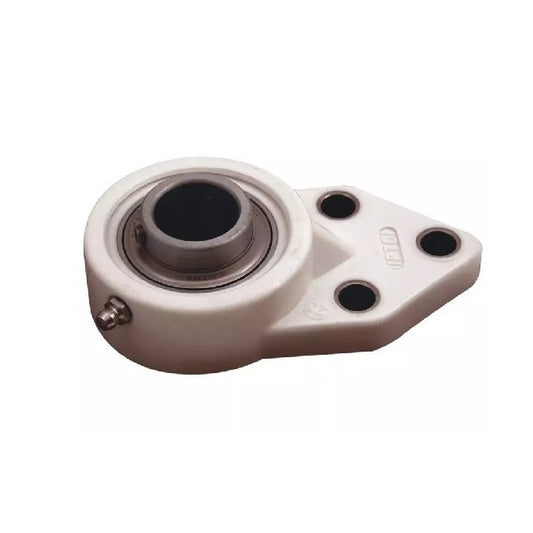

Offset Housing Assembly - 12.7x63.5x61.9 mm
Bolt Hole Size (G): 9.922 mm    Height (H): 12.700 mm
Part Number: IP-196RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026
$320.41 AUD
$320.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Inside Diameter Centre Height (A) Length (B) Width (C) Indicative
Offset Housing and Bearing Assembly - 12.7x63.5x61.9 mm Thermoplastic and Stainless
Inside Diameter
12.700
mm

(Equiv. 0.5 in.)
Centre Height (A)
63.500
mm

(Equiv. 2.5 in.)
Length (B)
61.900
mm

(Equiv. 2.437 in.)
Width (C)
38.100
mm
Offset Housing Assembly - 12.7x63.5x61.9 mm
Foot Height (D): 11.100 mm    Bolt Centres (E): 33.325 mm    Bolt Hole Size (G): 9.922 mm    Height (H): 12.700 mm
Part Number: IP-196RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 23, 2026
$320.41 AUD
$320.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
