Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Plastic and Stainless

Housing and Bearing Assembly -> Flanged 2 Bolt -> Rigid -> Plastic and Stainless

There is only 1 product in the sub-categories of Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Plastic and Stainless. Browse the Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Plastic and Stainless products table.

Category Details

A selection of Plastic and Stainless Rigid Flanged 2 Bolt Housing and Bearing Assembly. Thermoplastic housed units offer a more favourable economic choice. Stainless steel bearings offer a high level of corrosion resistance and all metal parts are made from either 302, 304 or 440C stainless steel.

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
  • Operating temperature minus 20 oC to +95 deg C
  • Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
  • Excellent mechanical, thermal and electrical properties.
  • All sleeves, bushings and grease fittings are 300 grade stainless steel.
  • Food Grade

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Plastic and Stainless category on the MBA Minibearings main store.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative

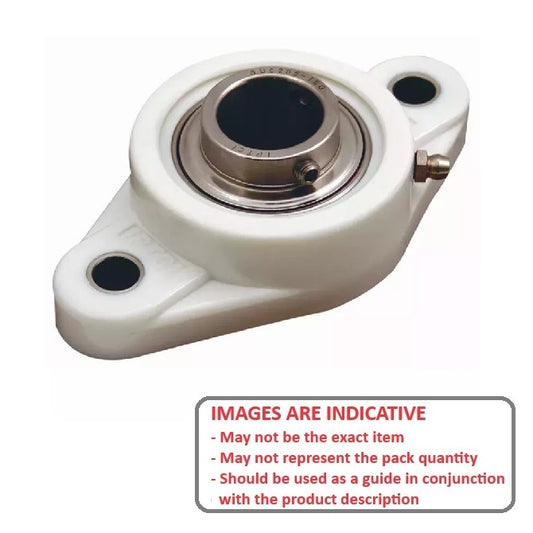

Flanged 2 Bolt Housing and Bearing Assembly - 12.7x33.734x112.7 mm Rigid - Thermoplastic and Chrome Stainless Steel
Nominal Shaft Size
12.700
mm

(Equiv. 0.5 in.)
Width (W)
33.734
mm

(Equiv. 1.328 in.)
Overall Length (A)
112.700
mm

(Equiv. 4.437 in.)
Overall Height (E)
33.734
mm
Flanged 2 Bolt Housing Assembly - 12.7x33.734x112.7 mm - Thermoplastic and Chrome Stainless Steel
Material: Thermoplastic and Chrome Stainless Steel    Base Height (D): 11.100 mm
Part Number: IP-160RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$340.50 AUD
$340.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative
Flanged 2 Bolt Housing and Bearing Assembly - 12.7x33.734x112.7 mm Rigid - Thermoplastic and Chrome Stainless Steel
Nominal Shaft Size
12.700
mm

(Equiv. 0.5 in.)
Width (W)
33.734
mm

(Equiv. 1.328 in.)
Overall Length (A)
112.700
mm

(Equiv. 4.437 in.)
Overall Height (E)
33.734
mm
Flanged 2 Bolt Housing Assembly - 12.7x33.734x112.7 mm - Thermoplastic and Chrome Stainless Steel
Material: Thermoplastic and Chrome Stainless Steel    Base Height (D): 11.100 mm
Part Number: IP-160RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$340.50 AUD
$340.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
