Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium

Housing and Bearing Assembly -> Flanged 2 Bolt -> Rigid -> Aluminium

There are 3 products in the sub-categories of Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium. Browse the Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium products table.

Category Details

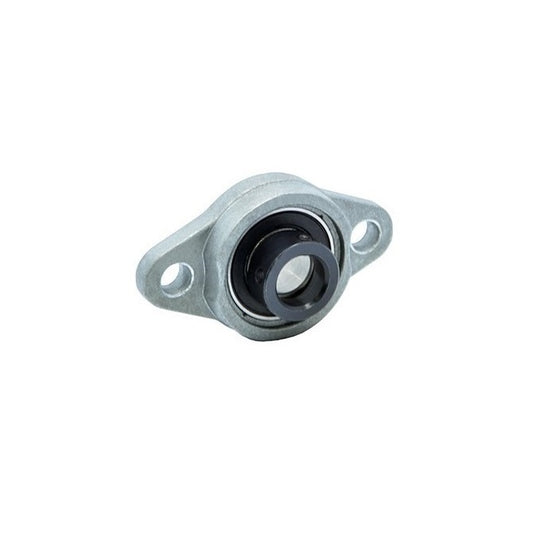

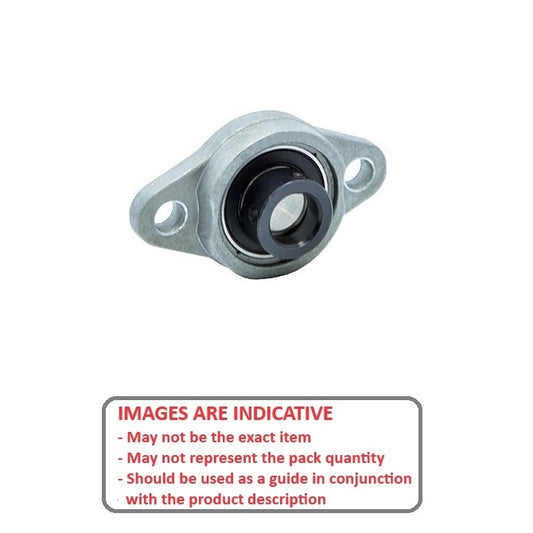

A selection of Aluminium Rigid Flanged 2 Bolt Housing and Bearing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium category on the MBA Minibearings main store.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative
Flanged 2 Bolt Housing and Bearing Assembly - 8x26x48 mm Rigid - Aluminium
Nominal Shaft Size
8.0
mm
Width (W)
26.0
mm
+/- 1.0
(Equiv. 1.024 in.)
Overall Length (A)
48.0
mm
Overall Height (E)
11.5
mm
Flanged 2 Bolt Housing Assembly - 8x26x48 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 4.8 mm    Bolt Hole Centres (L): 37.0 mm +/- 0.5
Part Number: KFL08 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$3.41 AUD
$3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size Width (W) Overall Length (A) Overall Height (E) Indicative
Flanged 2 Bolt Housing and Bearing Assembly - 8x26x48 mm Rigid - Aluminium
Nominal Shaft Size
8.0
mm
Width (W)
26.0
mm
+/- 1.0
(Equiv. 1.024 in.)
Overall Length (A)
48.0
mm
Overall Height (E)
11.5
mm
Flanged 2 Bolt Housing Assembly - 8x26x48 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 4.8 mm    Bolt Hole Centres (L): 37.0 mm +/- 0.5
Part Number: KFL08 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$3.41 AUD
$3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flanged 2 Bolt Housing and Bearing Assembly - 10x36x60 mm Rigid - Aluminium
Nominal Shaft Size
10.0
mm
Width (W)
36.0
mm
+/- 1.0
(Equiv. 1.417 in.)
Overall Length (A)
60.0
mm
Overall Height (E)
15.5
mm
Flanged 2 Bolt Housing Assembly - 10x36x60 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 7.0 mm    Bolt Hole Centres (L): 45.0 mm +/- 0.5
Part Number: KFL000 (Each)
18 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$13.86 AUD
$13.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 18 available can be backordered.
Flanged 2 Bolt Housing and Bearing Assembly - 10x36x60 mm Rigid - Aluminium
Nominal Shaft Size
10.0
mm
Width (W)
36.0
mm
+/- 1.0
(Equiv. 1.417 in.)
Overall Length (A)
60.0
mm
Overall Height (E)
15.5
mm
Flanged 2 Bolt Housing Assembly - 10x36x60 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 7.0 mm    Bolt Hole Centres (L): 45.0 mm +/- 0.5
Part Number: KFL000 (Each)
18 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$13.86 AUD
$13.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

18 Available Now. Backorder if more than 18.
Flanged 2 Bolt Housing and Bearing Assembly - 30x70x112 mm Rigid - Aluminium
Nominal Shaft Size
30.0
mm
Width (W)
70.0
mm
Overall Length (A)
112.0
mm
Overall Height (E)
29.0
mm
Flanged 2 Bolt Housing Assembly - 30x70x112 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 13.0 mm    Bolt Hole Centres (L): 85.0 mm
Part Number: UFL006N (Each)
4 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$16.23 AUD
$19.47 AUD $16.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Flanged 2 Bolt Housing and Bearing Assembly - 30x70x112 mm Rigid - Aluminium
Nominal Shaft Size
30.0
mm
Width (W)
70.0
mm
Overall Length (A)
112.0
mm
Overall Height (E)
29.0
mm
Flanged 2 Bolt Housing Assembly - 30x70x112 mm - Aluminium
Material: Aluminium    Bolt Hole Size (s): 13.0 mm    Bolt Hole Centres (L): 85.0 mm
Part Number: UFL006N (Each)
4 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$16.23 AUD
$19.47 AUD $16.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
