| Nominal Shaft Size | Width (W) | Overall Length (A) | Overall Height (E) |

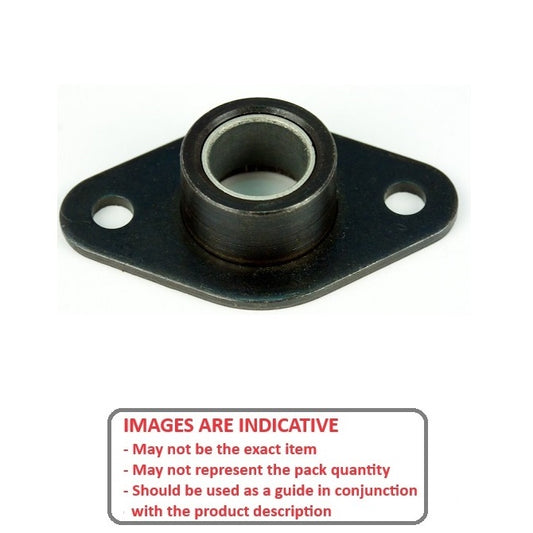

Indicative Image |
|---|---|---|---|---|
| Flanged 2 Bolt Housing and Bearing Assembly - 12x60x22 mm Aligning - PTFE Impregnated Bronze - High Temperature | ||||
|
Nominal Shaft Size
12.000
mm (Equiv. 0.472 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
22.00
mm (Equiv. 0.866 in.) |
Overall Height (E)
36.50
mm |
|
|
Material: PTFE Impregnated Bronze - High Temperature
Min to Max Shaft Dia.: 11.966 to 11.984 mm
Max. Radial Dynamic Load: 2550 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-12M-HT (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Nominal Shaft Size | Width (W) | Overall Length (A) | Overall Height (E) |
Indicative Image |
| Flanged 2 Bolt Housing and Bearing Assembly - 12x60x22 mm Aligning - PTFE Impregnated Bronze - High Temperature | ||||
|
Nominal Shaft Size
12.000
mm (Equiv. 0.472 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
22.00
mm (Equiv. 0.866 in.) |
Overall Height (E)
36.50
mm |
|
|
Material: PTFE Impregnated Bronze - High Temperature
Min to Max Shaft Dia.: 11.966 to 11.984 mm
Max. Radial Dynamic Load: 2550 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-12M-HT (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 12x60x28 mm Aligning - Steel | ||||
|
Nominal Shaft Size
12.000
mm (Equiv. 0.472 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
28.00
mm (Equiv. 1.102 in.) |
Overall Height (E)
39.60
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 11.989 to 12.000 mm
Max. Radial Dynamic Load: 4950 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-12M-N (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 12x60x28 mm Aligning - Steel | ||||
|
Nominal Shaft Size
12.000
mm (Equiv. 0.472 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
28.00
mm (Equiv. 1.102 in.) |
Overall Height (E)
39.60
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 11.989 to 12.000 mm
Max. Radial Dynamic Load: 4950 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-12M-N (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 12.7x59.44x27.78 mm Aligning - Steel | ||||
|
Nominal Shaft Size
12.700
mm (Equiv. 0.5 in.) |
Width (W)
59.44
mm (Equiv. 2.34 in.) |
Overall Length (A)
27.78
mm (Equiv. 1.094 in.) |
Overall Height (E)
39.62
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 12.687 to 12.700 mm
Max. Radial Dynamic Load: 4626 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-500-N (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 12.7x59.44x27.78 mm Aligning - Steel | ||||
|
Nominal Shaft Size
12.700
mm (Equiv. 0.5 in.) |
Width (W)
59.44
mm (Equiv. 2.34 in.) |
Overall Length (A)
27.78
mm (Equiv. 1.094 in.) |
Overall Height (E)
39.62
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 12.687 to 12.700 mm
Max. Radial Dynamic Load: 4626 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-500-N (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 15x60x28 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
15.000
mm (Equiv. 0.591 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
28.00
mm (Equiv. 1.102 in.) |
Overall Height (E)
39.70
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 15.030 to 15.050 mm
Max. Radial Dynamic Load: 3750 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-15M-B (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$18.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 15x60x28 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
15.000
mm (Equiv. 0.591 in.) |
Width (W)
60.00
mm (Equiv. 2.362 in.) |
Overall Length (A)
28.00
mm (Equiv. 1.102 in.) |
Overall Height (E)
39.70
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 15.030 to 15.050 mm
Max. Radial Dynamic Load: 3750 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-15M-B (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$18.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 15x63.5x82.5 mm Aligning - Steel | ||||
|
Nominal Shaft Size
15.000
mm (Equiv. 0.591 in.) |
Width (W)
63.50
mm (Equiv. 2.5 in.) |
Overall Length (A)
82.50
mm (Equiv. 3.248 in.) |
Overall Height (E)
41.50
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 14.989 to 15.000 mm
Max. Radial Dynamic Load: 3110 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: HF3-15M-N (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 15x63.5x82.5 mm Aligning - Steel | ||||
|
Nominal Shaft Size
15.000
mm (Equiv. 0.591 in.) |
Width (W)
63.50
mm (Equiv. 2.5 in.) |
Overall Length (A)
82.50
mm (Equiv. 3.248 in.) |
Overall Height (E)
41.50
mm |
|
|
Material: Steel
Min to Max Shaft Dia.: 14.989 to 15.000 mm
Max. Radial Dynamic Load: 3110 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle Roller Deleted Item. Available while stocks last. |
||||
|
Part Number: HF3-15M-N (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 19.05x59.69x32.54 mm Aligning - PTFE Impregnated Bronze | ||||
|
Nominal Shaft Size
19.050
mm (Equiv. 0.75 in.) |
Width (W)
59.69
mm (Equiv. 2.35 in.) |
Overall Length (A)
32.54
mm (Equiv. 1.281 in.) |
Overall Height (E)
46.99
mm |
|
|
Material: PTFE Impregnated Bronze
Min to Max Shaft Dia.: 19.000 to 19.027 mm
Max. Radial Dynamic Load: 30248 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-750-P (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$24.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 19.05x59.69x32.54 mm Aligning - PTFE Impregnated Bronze | ||||
|
Nominal Shaft Size
19.050
mm (Equiv. 0.75 in.) |
Width (W)
59.69
mm (Equiv. 2.35 in.) |
Overall Length (A)
32.54
mm (Equiv. 1.281 in.) |
Overall Height (E)
46.99
mm |
|
|
Material: PTFE Impregnated Bronze
Min to Max Shaft Dia.: 19.000 to 19.027 mm
Max. Radial Dynamic Load: 30248 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-750-P (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$24.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 22.225x79.5x101.6 mm Aligning - Bronze SAE 840 Sintered | ||||
|
Nominal Shaft Size
22.225
mm (Equiv. 0.875 in.) |
Width (W)
79.50
mm (Equiv. 3.13 in.) |
Overall Length (A)
101.60
mm (Equiv. 4 in.) |
Overall Height (E)
47.75
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 22.255 to 22.275 mm
Max. Radial Dynamic Load: 4003 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: HF4-875-B (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 22.225x79.5x101.6 mm Aligning - Bronze SAE 840 Sintered | ||||
|
Nominal Shaft Size
22.225
mm (Equiv. 0.875 in.) |
Width (W)
79.50
mm (Equiv. 3.13 in.) |
Overall Length (A)
101.60
mm (Equiv. 4 in.) |
Overall Height (E)
47.75
mm |
|
|
Material: Bronze SAE 840 Sintered
Min to Max Shaft Dia.: 22.255 to 22.275 mm
Max. Radial Dynamic Load: 4003 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: HF4-875-B (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 22.225x82.55x40.64 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
22.225
mm (Equiv. 0.875 in.) |
Width (W)
82.55
mm (Equiv. 3.25 in.) |
Overall Length (A)
40.64
mm (Equiv. 1.6 in.) |
Overall Height (E)
50.80
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 22.250 to 22.301 mm
Max. Radial Dynamic Load: 11121 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-875-B (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 22.225x82.55x40.64 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
22.225
mm (Equiv. 0.875 in.) |
Width (W)
82.55
mm (Equiv. 3.25 in.) |
Overall Length (A)
40.64
mm (Equiv. 1.6 in.) |
Overall Height (E)
50.80
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 22.250 to 22.301 mm
Max. Radial Dynamic Load: 11121 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-875-B (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 25.4x82.55x40.64 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
25.400
mm (Equiv. 1 in.) |
Width (W)
82.55
mm (Equiv. 3.25 in.) |
Overall Length (A)
40.64
mm (Equiv. 1.6 in.) |
Overall Height (E)
50.80
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 25.425 to 25.476 mm
Max. Radial Dynamic Load: 12900 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-1000-B (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
| Flanged 2 Bolt Housing and Bearing Assembly - 25.4x82.55x40.64 mm Aligning - Sintered Bronze SAE 840 | ||||
|
Nominal Shaft Size
25.400
mm (Equiv. 1 in.) |
Width (W)
82.55
mm (Equiv. 3.25 in.) |
Overall Length (A)
40.64
mm (Equiv. 1.6 in.) |
Overall Height (E)
50.80
mm |
|
|
Material: Sintered Bronze SAE 840
Min to Max Shaft Dia.: 25.425 to 25.476 mm
Max. Radial Dynamic Load: 12900 N
Category: Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Sintered Bronze Deleted Item. Available while stocks last. |
||||
|
Part Number: BFM-1000-B (PK-2)
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||
|
||||
