Collection: Handles - Adjustable Tapped and Reamed
- Handles (With Images)
- Adjustable Tapped and Reamed
2 Products in this selection

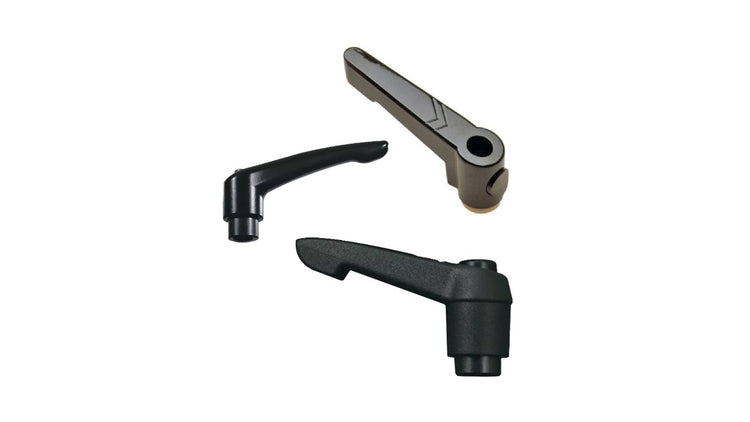

- Adjustable Handles
- Either Black Plastic with fibreglass reinforcing or Powdered Coated Zinc Novo-Grip Adjustable handles with either a Tapped or Reamed Hole.
- These handles act as a standard clamping lever, yet can be adjusted to 16-26 positions depending on size. Pulling up on handle disengages, while the insert remains stationary.
- Allowing you to adjust the handle to the desired position. Releasing the handle reengages it for tightening and loosening. Allows for convenient positioning for Maxium leverage as well as saving space.
Additional resources:
A more comprehensive listing may be found on the MBA Minibearings main store at Handles - Adjustable Tapped and Reamed.
A more comprehensive listing may be found on the MBA Minibearings main store at Handles - Adjustable Tapped and Reamed.
| Thread (A) | Material | Handle Length (L) | Hub Diameter (E) | Total Height (H) | Hub Height (F) |
Indicative Image |
|---|---|---|---|---|---|---|
|
M6 (6x1mm)
|
Plastic with Fireglass reinforcements
|
40.0
mm |
10.0
mm |
31.0
mm |
4.0
mm |
|
| Material: Plastic with Fireglass reinforcements Base Height (J): 24.0 mm Handle Diameter (D): 13.5 mm Thread Depth (B): 9.0 mm | ||||||
|

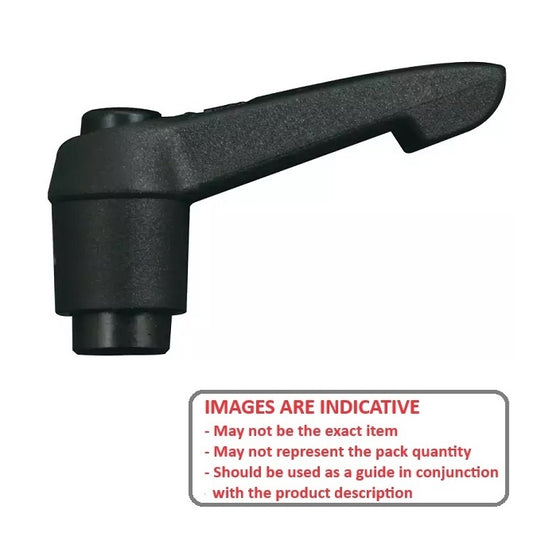

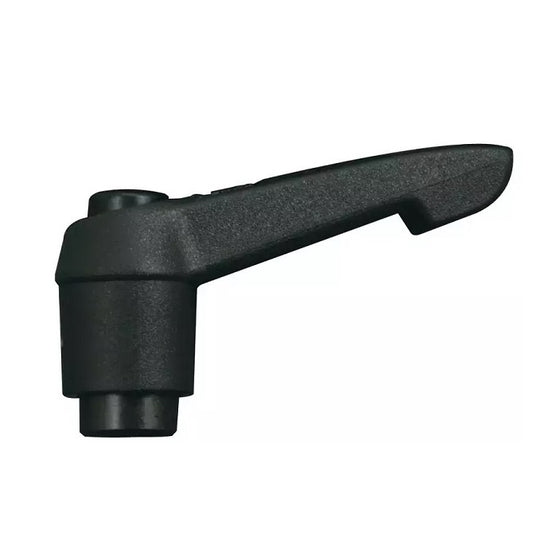

Part Number: KHD-204RS Adjustable Tapped and Reamed Handles - M6 -6x1mm- Plastic with Fireglass reinforcements 40 mm
4 Available Now | Further orders can be expected around Fri, May 02, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Each
|
||||||
| Thread (A) | Material | Handle Length (L) | Hub Diameter (E) |
Indicative Image |
||
|
M6 (6x1mm)
|
Plastic with Fireglass reinforcements
|
40.0
mm |
10.0
mm |
|
||
| Material: Plastic with Fireglass reinforcements Total Height (H): 31.0 mm Hub Height (F): 4.0 mm Base Height (J): 24.0 mm Handle Diameter (D): 13.5 mm Thread Depth (B): 9.0 mm | ||||||
|
Part Number: KHD-204RS Adjustable Tapped and Reamed Handles - M6 -6x1mm- Plastic with Fireglass reinforcements 40 mm
4 Available Now | Further orders can be expected around Fri, May 02, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
M6 (6x1mm)
|
Plastic with Fireglass reinforcements
|
65.0
mm |
13.5
mm |
43.0
mm |
6.5
mm |
|
| Material: Plastic with Fireglass reinforcements Base Height (J): 29.0 mm Handle Diameter (D): 18.0 mm Thread Depth (B): 12.0 mm | ||||||
|
Part Number: KHD-208RS Adjustable Tapped and Reamed Handles - M6 -6x1mm- Plastic with Fireglass reinforcements 65 mm
4 Available Now | Further orders can be expected around Fri, May 02, 2025 Regular price
$19.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
M6 (6x1mm)
|
Plastic with Fireglass reinforcements
|
65.0
mm |
13.5
mm |
|
||
| Material: Plastic with Fireglass reinforcements Total Height (H): 43.0 mm Hub Height (F): 6.5 mm Base Height (J): 29.0 mm Handle Diameter (D): 18.0 mm Thread Depth (B): 12.0 mm | ||||||
|
Part Number: KHD-208RS Adjustable Tapped and Reamed Handles - M6 -6x1mm- Plastic with Fireglass reinforcements 65 mm
4 Available Now | Further orders can be expected around Fri, May 02, 2025 Regular price
$19.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
