Gears - Worm - 48DP

Gears -> Worm -> 48DP

There is only 1 product in the sub-categories of Gears - Worm - 48DP. Browse the Gears - Worm - 48DP products table.

Category Details

A selection of 48DP Worm Gears. This is the main category in this series

  • Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
  • A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
  • If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Gears - Worm - 48DP category on the MBA Minibearings main store.
Pitch Teeth Lead Angle Direction Bore (B) Overall Length (l) Indicative
Pitch
48DP

Teeth
30

Lead Angle
3 Deg 45 Min with 14.5 Deg Pressure Angle

Direction
Right Hand
Bore (B)
4.757
Overall Length (l)
10.351

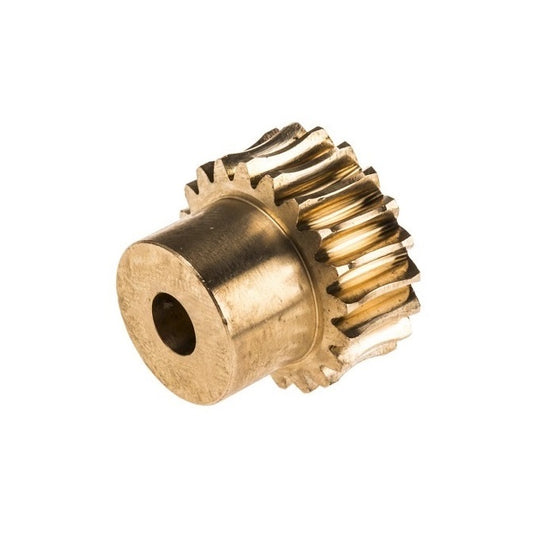

Worm Gears - Pitch 48DP 30 - 3 Deg 45 Min with 14.5 Deg Pressure Angle - Bronze
Material: Bronze    Pitch Diameter (C): 15.88 mm    Face Width (fw): 4.762 mm    Bore Type: Finished    Hub Diameter (Dh): 9.52 mm    Locking Type: Set Screw
Deleted Item. Available while stocks last.
Part Number: WG1R48-030-05HS0476-BRZ (Each)
Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Pitch Teeth Lead Angle Direction Indicative
Pitch
48DP

Teeth
30

Lead Angle
3 Deg 45 Min with 14.5 Deg Pressure Angle

Direction
Right Hand

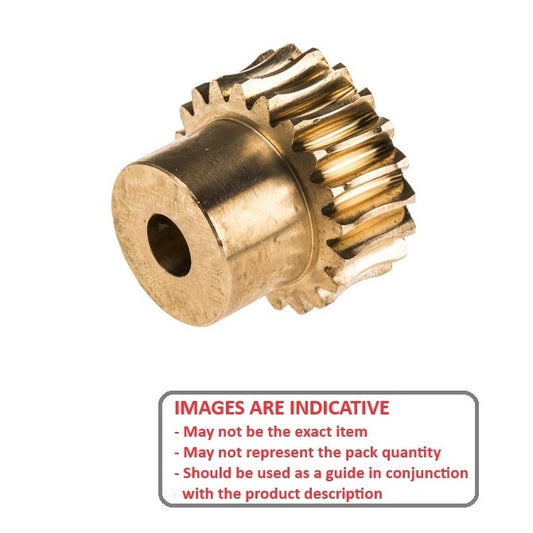

Worm Gears - Pitch 48DP 30 - 3 Deg 45 Min with 14.5 Deg Pressure Angle - Bronze
Material: Bronze    Bore (B): 4.757    Overall Length (l): 10.351    Pitch Diameter (C): 15.88 mm    Face Width (fw): 4.762 mm    Bore Type: Finished    Hub Diameter (Dh): 9.52 mm    Locking Type: Set Screw
Deleted Item. Available while stocks last.
Part Number: WG1R48-030-05HS0476-BRZ (Each)
Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
