Collection: Gears - Spur - Hubbed - Module 1 - Steel

Gears -> Spur -> Hubbed -> Module 1 -> Steel

There are 94 products in the sub-categories of Gears - Spur - Hubbed - Module 1 - Steel. Scroll down or follow the link to Gears - Spur - Hubbed - Module 1 - Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Steel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle

There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
Be sure to match the pitch type and tooth angle when selecting spur gears.
An expanded range may be available on special order. Please enquire.
The diameter increases by 1mm per tooth
Module 1. Approximately 3.14mm between the teeth.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Gears - Spur - Hubbed - Module 1 - Steel category on the MBA Minibearings main store.

Number of Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type
Number of Teeth 14	Pitch Circle Diameter (PD) 14.00 mm (Equiv. 0.551 in.)	Bore (d) 5.00 mm _H7 (Equiv. 0.197 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 11.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-100-050P-C (Each) Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Number of Teeth 14	Pitch Circle Diameter (PD) 14.00 mm (Equiv. 0.551 in.)	Bore (d) 5.00 mm _H7 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 11.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-100-050P-C (Each) Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G014B-014-M1-100-050P-C (Each) --- Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear G014B-014-M1-100-050P-C (Each) --- Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 14	Pitch Circle Diameter (PD) 14.00 mm (Equiv. 0.551 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 11.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-080-050P-C (Each) Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Pitch Circle Diameter (PD) 14.00 mm (Equiv. 0.551 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 11.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-080-050P-C (Each) Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G014B-014-M1-080-050P-C (Each) --- Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear G014B-014-M1-080-050P-C (Each) --- Spur Gears - 14 tooth - 14x5 mm Hubbed - Carbon Steel S45C Gear Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 15	Pitch Circle Diameter (PD) 15.00 mm (Equiv. 0.591 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)	Outside Diameter (OD) 17.000 mm	Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 12.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-080-050P-C (Each) Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear 1 Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
Number of Teeth 15	Pitch Circle Diameter (PD) 15.00 mm (Equiv. 0.591 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 12.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-080-050P-C (Each) Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear 1 Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
G015B-015-M1-080-050P-C (Each) --- Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear G015B-015-M1-080-050P-C (Each) --- Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now
Number of Teeth 15	Pitch Circle Diameter (PD) 15.00 mm (Equiv. 0.591 in.)	Bore (d) 5.000 mm _H8 (Equiv. 0.197 in.)	Outside Diameter (OD) 17.000 mm	Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 12.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-100-050P-C (Each) Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 15	Pitch Circle Diameter (PD) 15.00 mm (Equiv. 0.591 in.)	Bore (d) 5.000 mm _H8 (Equiv. 0.197 in.)	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 12.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-100-050P-C (Each) Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G015B-015-M1-100-050P-C (Each) --- Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear G015B-015-M1-100-050P-C (Each) --- Spur Gears - 15 tooth - 15x5 mm Hubbed - Carbon Steel S45C Gear Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 16	Pitch Circle Diameter (PD) 16.00 mm (Equiv. 0.63 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 13.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-100-050P-C (Each) Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Pitch Circle Diameter (PD) 16.00 mm (Equiv. 0.63 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 13.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-100-050P-C (Each) Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G016B-016-M1-100-050P-C (Each) --- Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear G016B-016-M1-100-050P-C (Each) --- Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 16	Pitch Circle Diameter (PD) 16.00 mm (Equiv. 0.63 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 13.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-080-050P-C (Each) Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.95 AUD Regular price Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Pitch Circle Diameter (PD) 16.00 mm (Equiv. 0.63 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 13.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-080-050P-C (Each) Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.95 AUD Regular price Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G016B-016-M1-080-050P-C (Each) --- Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear G016B-016-M1-080-050P-C (Each) --- Spur Gears - 16 tooth - 16x5 mm Hubbed - Carbon Steel S45C Gear Regular price $17.95 AUD Regular price Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 17	Pitch Circle Diameter (PD) 17.00 mm (Equiv. 0.669 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 14.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G017B-017-M1-080-050P-C (PK-15) Spur Gears - 17 tooth - 17x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $264.50 AUD Regular price ~~$317.40 AUD~~ Sale price $264.50 AUD Unit price per Priced, Stocked and Sold Per 15 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 17	Pitch Circle Diameter (PD) 17.00 mm (Equiv. 0.669 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 14.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G017B-017-M1-080-050P-C (PK-15) Spur Gears - 17 tooth - 17x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $264.50 AUD Regular price ~~$317.40 AUD~~ Sale price $264.50 AUD Unit price per Priced, Stocked and Sold Per 15 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G017B-017-M1-080-050P-C (PK-15) --- Spur Gears - 17 tooth - 17x5 mm Hubbed - Carbon Steel S45C Gear Sale G017B-017-M1-080-050P-C (PK-15) --- Spur Gears - 17 tooth - 17x5 mm Hubbed - Carbon Steel S45C Gear Regular price $264.50 AUD Regular price ~~$317.40 AUD~~ Sale price $264.50 AUD Unit price per Priced, Stocked and Sold Per 15 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Number of Teeth 18	Pitch Circle Diameter (PD) 18.00 mm (Equiv. 0.709 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 14.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G018B-018-M1-100-060P-C (Each) Spur Gears - 18 tooth - 18x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Pitch Circle Diameter (PD) 18.00 mm (Equiv. 0.709 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 14.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G018B-018-M1-100-060P-C (Each) Spur Gears - 18 tooth - 18x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G018B-018-M1-100-060P-C (Each) --- Spur Gears - 18 tooth - 18x6 mm Hubbed - Carbon Steel S45C Gear G018B-018-M1-100-060P-C (Each) --- Spur Gears - 18 tooth - 18x6 mm Hubbed - Carbon Steel S45C Gear Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 19	Pitch Circle Diameter (PD) 19.00 mm (Equiv. 0.748 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G019B-019-M1-080-060P-C (Each) Spur Gears - 19 tooth - 19x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Pitch Circle Diameter (PD) 19.00 mm (Equiv. 0.748 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G019B-019-M1-080-060P-C (Each) Spur Gears - 19 tooth - 19x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G019B-019-M1-080-060P-C (Each) --- Spur Gears - 19 tooth - 19x6 mm Hubbed - Carbon Steel S45C Gear G019B-019-M1-080-060P-C (Each) --- Spur Gears - 19 tooth - 19x6 mm Hubbed - Carbon Steel S45C Gear Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 10.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-100-050P-C (Each) Spur Gears - 20 tooth - 20x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 10.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-100-050P-C (Each) Spur Gears - 20 tooth - 20x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G020B-020-M1-100-050P-C (Each) --- Spur Gears - 20 tooth - 20x5 mm Hubbed - Carbon Steel S45C Gear G020B-020-M1-100-050P-C (Each) --- Spur Gears - 20 tooth - 20x5 mm Hubbed - Carbon Steel S45C Gear Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-080-060P-C (Each) Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear 1 Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-080-060P-C (Each) Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear 1 Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
G020B-020-M1-080-060P-C (Each) --- Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear G020B-020-M1-080-060P-C (Each) --- Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-120-060P-C (Each) Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Pitch Circle Diameter (PD) 20.00 mm (Equiv. 0.787 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-120-060P-C (Each) Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G020B-020-M1-120-060P-C (Each) --- Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear G020B-020-M1-120-060P-C (Each) --- Spur Gears - 20 tooth - 20x6 mm Hubbed - Carbon Steel S45C Gear Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 21	Pitch Circle Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-080-060P-C (Each) Spur Gears - 21 tooth - 21x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Pitch Circle Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-080-060P-C (Each) Spur Gears - 21 tooth - 21x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G021B-021-M1-080-060P-C (Each) --- Spur Gears - 21 tooth - 21x6 mm Hubbed - Carbon Steel S45C Gear G021B-021-M1-080-060P-C (Each) --- Spur Gears - 21 tooth - 21x6 mm Hubbed - Carbon Steel S45C Gear Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 21	Pitch Circle Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-120-080P-C (Each) Spur Gears - 21 tooth - 21x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Pitch Circle Diameter (PD) 21.00 mm (Equiv. 0.827 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G021B-021-M1-120-080P-C (Each) Spur Gears - 21 tooth - 21x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G021B-021-M1-120-080P-C (Each) --- Spur Gears - 21 tooth - 21x8 mm Hubbed - Carbon Steel S45C Gear G021B-021-M1-120-080P-C (Each) --- Spur Gears - 21 tooth - 21x8 mm Hubbed - Carbon Steel S45C Gear Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 22	Pitch Circle Diameter (PD) 22.00 mm (Equiv. 0.866 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-080-060P-C (Each) Spur Gears - 22 tooth - 22x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Pitch Circle Diameter (PD) 22.00 mm (Equiv. 0.866 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-080-060P-C (Each) Spur Gears - 22 tooth - 22x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G022B-022-M1-080-060P-C (Each) --- Spur Gears - 22 tooth - 22x6 mm Hubbed - Carbon Steel S45C Gear G022B-022-M1-080-060P-C (Each) --- Spur Gears - 22 tooth - 22x6 mm Hubbed - Carbon Steel S45C Gear Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 22	Pitch Circle Diameter (PD) 22.00 mm (Equiv. 0.866 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-120-080P-C (Each) Spur Gears - 22 tooth - 22x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Pitch Circle Diameter (PD) 22.00 mm (Equiv. 0.866 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 18.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G022B-022-M1-120-080P-C (Each) Spur Gears - 22 tooth - 22x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G022B-022-M1-120-080P-C (Each) --- Spur Gears - 22 tooth - 22x8 mm Hubbed - Carbon Steel S45C Gear G022B-022-M1-120-080P-C (Each) --- Spur Gears - 22 tooth - 22x8 mm Hubbed - Carbon Steel S45C Gear Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 23	Pitch Circle Diameter (PD) 23.00 mm (Equiv. 0.906 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-080-060P-C (Each) Spur Gears - 23 tooth - 23x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Pitch Circle Diameter (PD) 23.00 mm (Equiv. 0.906 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-080-060P-C (Each) Spur Gears - 23 tooth - 23x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G023B-023-M1-080-060P-C (Each) --- Spur Gears - 23 tooth - 23x6 mm Hubbed - Carbon Steel S45C Gear G023B-023-M1-080-060P-C (Each) --- Spur Gears - 23 tooth - 23x6 mm Hubbed - Carbon Steel S45C Gear Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 23	Pitch Circle Diameter (PD) 23.00 mm (Equiv. 0.906 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-120-080P-C (Each) Spur Gears - 23 tooth - 23x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Pitch Circle Diameter (PD) 23.00 mm (Equiv. 0.906 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G023B-023-M1-120-080P-C (Each) Spur Gears - 23 tooth - 23x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G023B-023-M1-120-080P-C (Each) --- Spur Gears - 23 tooth - 23x8 mm Hubbed - Carbon Steel S45C Gear G023B-023-M1-120-080P-C (Each) --- Spur Gears - 23 tooth - 23x8 mm Hubbed - Carbon Steel S45C Gear Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 24	Pitch Circle Diameter (PD) 24.00 mm (Equiv. 0.945 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-100-060P-C (Each) Spur Gears - 24 tooth - 24x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Pitch Circle Diameter (PD) 24.00 mm (Equiv. 0.945 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-100-060P-C (Each) Spur Gears - 24 tooth - 24x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G024B-024-M1-100-060P-C (Each) --- Spur Gears - 24 tooth - 24x6 mm Hubbed - Carbon Steel S45C Gear G024B-024-M1-100-060P-C (Each) --- Spur Gears - 24 tooth - 24x6 mm Hubbed - Carbon Steel S45C Gear Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 24	Pitch Circle Diameter (PD) 24.00 mm (Equiv. 0.945 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-120-080P-C (Each) Spur Gears - 24 tooth - 24x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Pitch Circle Diameter (PD) 24.00 mm (Equiv. 0.945 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G024B-024-M1-120-080P-C (Each) Spur Gears - 24 tooth - 24x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G024B-024-M1-120-080P-C (Each) --- Spur Gears - 24 tooth - 24x8 mm Hubbed - Carbon Steel S45C Gear G024B-024-M1-120-080P-C (Each) --- Spur Gears - 24 tooth - 24x8 mm Hubbed - Carbon Steel S45C Gear Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 10.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-050P-C (Each) Spur Gears - 25 tooth - 25x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 5.00 mm _H8 (Equiv. 0.197 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 10.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-050P-C (Each) Spur Gears - 25 tooth - 25x5 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G025B-025-M1-100-050P-C (Each) --- Spur Gears - 25 tooth - 25x5 mm Hubbed - Carbon Steel S45C Gear G025B-025-M1-100-050P-C (Each) --- Spur Gears - 25 tooth - 25x5 mm Hubbed - Carbon Steel S45C Gear Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)		Face Width (FW) 10.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-100-060P-C (Each) Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 6.00 mm _H8 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 10.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial

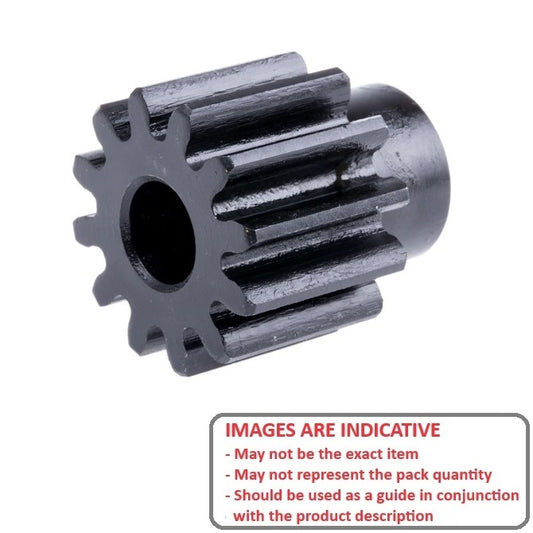

Part Number: G025B-025-M1-100-060P-C (Each) Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G025B-025-M1-100-060P-C (Each) --- Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear G025B-025-M1-100-060P-C (Each) --- Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)		Face Width (FW) 8.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-080-060P-C (Each) Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 6.00 mm _H7 (Equiv. 0.236 in.)
Material: Carbon Steel S45C Face Width (FW): 8.00 mm Type: Hubbed Hub Diameter (D1): 16.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-080-060P-C (Each) Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G025B-025-M1-080-060P-C (Each) --- Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear G025B-025-M1-080-060P-C (Each) --- Spur Gears - 25 tooth - 25x6 mm Hubbed - Carbon Steel S45C Gear Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)		Face Width (FW) 12.00 mm	Type Hubbed
Material: Carbon Steel S45C Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-120-080P-C (Each) Spur Gears - 25 tooth - 25x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 25.00 mm (Equiv. 0.984 in.)	Bore (d) 8.00 mm _H7 (Equiv. 0.315 in.)
Material: Carbon Steel S45C Face Width (FW): 12.00 mm Type: Hubbed Hub Diameter (D1): 20.00 Hub Projection (HL): 8.00 Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G025B-025-M1-120-080P-C (Each) Spur Gears - 25 tooth - 25x8 mm Hubbed - Carbon Steel S45C Gear Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
G025B-025-M1-120-080P-C (Each) --- Spur Gears - 25 tooth - 25x8 mm Hubbed - Carbon Steel S45C Gear G025B-025-M1-120-080P-C (Each) --- Spur Gears - 25 tooth - 25x8 mm Hubbed - Carbon Steel S45C Gear Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

Country/region

Small Parts & Bearings

Collection: Gears - Spur - Hubbed - Module 1 - Steel

Category Details

Filter

Filter

Subscribe to our emails
