Gears - Spur - Hubbed - Module 0.5 - Plastic - With Insert

2 Products in this selection

A selection of With Insert Plastic Module 0.5 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 0.5mm per tooth
  • Module 0.5. Approximately 1.57mm between the teeth.
Small Parts & Bearings

Additional resources:
Module 0.5 Gear Racks

A more comprehensive listing may be found on the MBA Minibearings main store at Gears - Spur - Hubbed - Module 0.5 - Plastic - With Insert.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Number of Teeth
21
Pitch Circle Diameter (PD)
10.50
mm
Bore (d)
3.000
mm
Outside Diameter (OD)
11.500
mm
Face Width (FW)
3.000
mm
Type
Hubbed

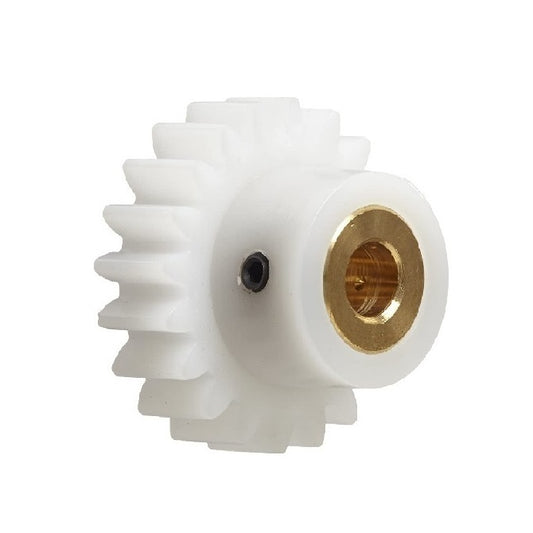

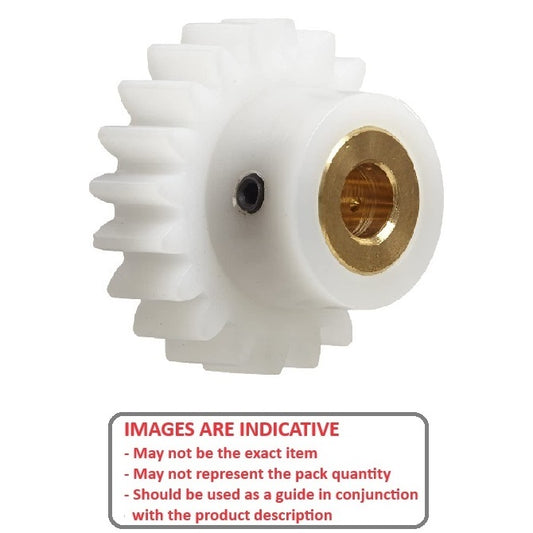

Spur Gears - 21 tooth - 10.5x3 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Hub Diameter (D1): 8.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G011B-021-M05-030-030-AB-G (Each) Spur Gears - 21 tooth - 10.5x3 mm Hubbed - Acetal - Brass Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Number of Teeth
21
Pitch Circle Diameter (PD)
10.50
mm
Bore (d)
3.000
mm
Outside Diameter (OD)
11.500
mm
Spur Gears - 21 tooth - 10.5x3 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Face Width (FW): 3.000 mm    Type: Hubbed    Hub Diameter (D1): 8.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G011B-021-M05-030-030-AB-G (Each) Spur Gears - 21 tooth - 10.5x3 mm Hubbed - Acetal - Brass Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Number of Teeth
24
Pitch Circle Diameter (PD)
12.00
mm
Bore (d)
4.000
mm
Outside Diameter (OD)
13.000
mm
Face Width (FW)
3.000
mm
Type
Hubbed
Spur Gears - 24 tooth - 12x4 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Hub Diameter (D1): 10.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G012B-024-M05-030-040-AB-G (Each) Spur Gears - 24 tooth - 12x4 mm Hubbed - Acetal - Brass Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Number of Teeth
24
Pitch Circle Diameter (PD)
12.00
mm
Bore (d)
4.000
mm
Outside Diameter (OD)
13.000
mm
Spur Gears - 24 tooth - 12x4 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Face Width (FW): 3.000 mm    Type: Hubbed    Hub Diameter (D1): 10.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G012B-024-M05-030-040-AB-G (Each) Spur Gears - 24 tooth - 12x4 mm Hubbed - Acetal - Brass Insert Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
