Collection: Gears - Spur - Hubbed - 24DP
Gears -> Spur -> Hubbed -> 24DPThere are 19 products in the sub-categories of Gears - Spur - Hubbed - 24DP. Browse the Gears - Spur - Hubbed - 24DP products table. To narrow down the selection, please choose a sub-category from the links below.
Gears - Spur - Hubbed - 24DP - 14.5 Degree
This category includes various types of spur gears. There are more items...

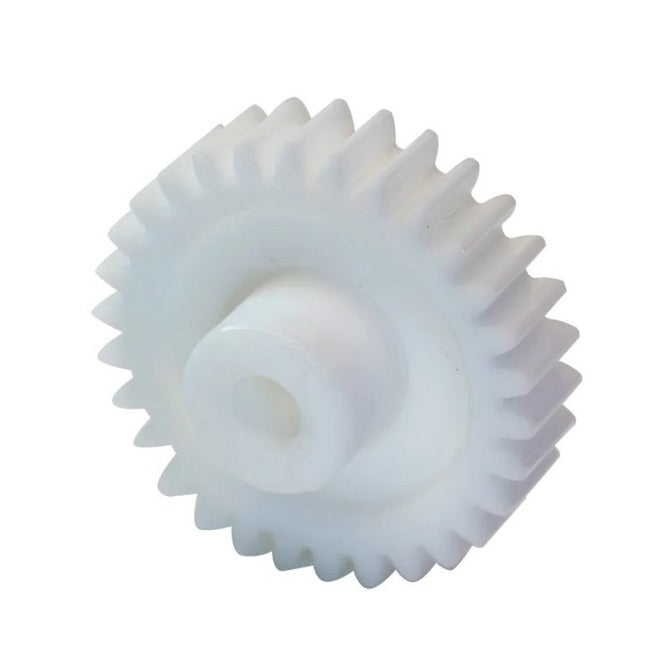

Gears - Spur - Hubbed - 24DP - 20 Degree
This category includes various types of spur gears. There are more items...
Category Details
This category includes various types of spur gears.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Gears - Spur - Hubbed - 24DP category on the MBA Minibearings main store.
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) | Face Width (FW) | Type |
Indicative Image |
|---|---|---|---|---|---|---|
|
Number of Teeth
12
|
Pitch Circle Diameter (PD)
12.700
mm (Equiv. 0.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
14.808
mm |
Face Width (FW)
6.350
mm |
Type
Hubbed
|
|
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 9.144 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree |
||||||
|
Part Number: G013B-012-V24-064-064-CG (Each)
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$93.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) |
Indicative Image |
||
|
Number of Teeth
12
|
Pitch Circle Diameter (PD)
12.700
mm (Equiv. 0.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
14.808
mm |
|
||
|
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 6.350 mm
Type: Hubbed
Hub Diameter (D1): 9.144 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree |
||||||
|
Part Number: G013B-012-V24-064-064-CG (Each)
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$93.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
15
|
Pitch Circle Diameter (PD)
15.875
mm (Equiv. 0.625 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
18.03
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G016B-015-D24-032-064-S3 (Each)

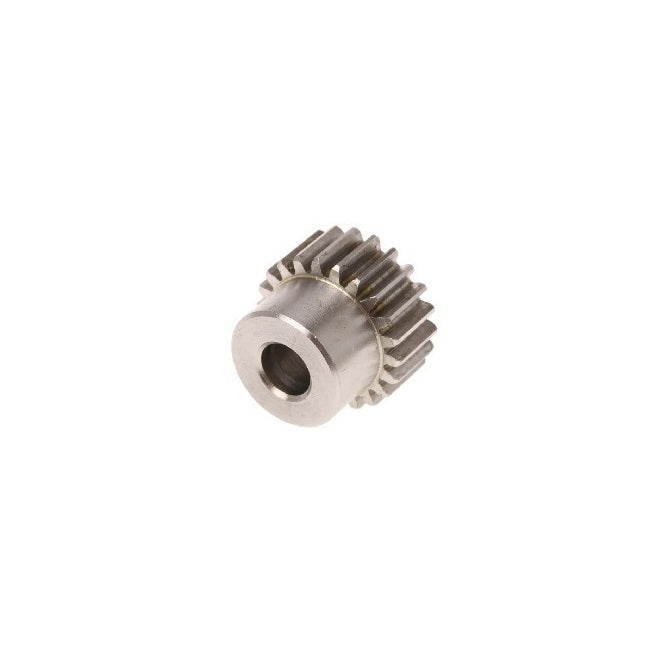

Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$28.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
15
|
Pitch Circle Diameter (PD)
15.875
mm (Equiv. 0.625 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
18.03
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G016B-015-D24-032-064-S3 (Each)
Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$28.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
15
|
Pitch Circle Diameter (PD)
15.88
mm (Equiv. 0.625 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
17.983
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 12.30 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G016B-015-D24-064-048-A-P (Each)
Spur Gears - 15 tooth - 15.88x4.762 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
15
|
Pitch Circle Diameter (PD)
15.88
mm (Equiv. 0.625 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
17.983
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 12.30 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G016B-015-D24-064-048-A-P (Each)
Spur Gears - 15 tooth - 15.88x4.762 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
17
|
Pitch Circle Diameter (PD)
17.98
mm (Equiv. 0.708 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
20.091
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G018B-017-D24-064-048-A-P (Each)
Spur Gears - 17 tooth - 17.98x4.762 mm Hubbed - Acetal Gear 6 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
17
|
Pitch Circle Diameter (PD)
17.98
mm (Equiv. 0.708 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
20.091
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G018B-017-D24-064-048-A-P (Each)
Spur Gears - 17 tooth - 17.98x4.762 mm Hubbed - Acetal Gear 6 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.05
mm (Equiv. 0.75 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
21.158
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Brass
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.35 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G019B-018-V24-064-048-B-P (Each)
Spur Gears - 18 tooth - 19.05x4.762 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.05
mm (Equiv. 0.75 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
21.158
mm |
|
||
|
Material: Brass
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.35 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G019B-018-V24-064-048-B-P (Each)
Spur Gears - 18 tooth - 19.05x4.762 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.050
mm (Equiv. 0.75 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G019B-018-D24-032-064-S3 (Each)
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.050
mm (Equiv. 0.75 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G019B-018-D24-032-064-S3 (Each)
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
23
|
Pitch Circle Diameter (PD)
24.33
mm (Equiv. 0.958 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
26.441
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G024B-023-D24-064-048-A-P (Each)
Spur Gears - 23 tooth - 24.33x4.762 mm Hubbed - Acetal Gear 6 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
23
|
Pitch Circle Diameter (PD)
24.33
mm (Equiv. 0.958 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
26.441
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G024B-023-D24-064-048-A-P (Each)
Spur Gears - 23 tooth - 24.33x4.762 mm Hubbed - Acetal Gear 6 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
23
|
Pitch Circle Diameter (PD)
24.33
mm (Equiv. 0.958 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
26.441
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G024B-023-D24-064-079-A-P (Each)
Spur Gears - 23 tooth - 24.33x7.938 mm Hubbed - Acetal Gear 10 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
23
|
Pitch Circle Diameter (PD)
24.33
mm (Equiv. 0.958 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
26.441
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 13.89 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G024B-023-D24-064-079-A-P (Each)
Spur Gears - 23 tooth - 24.33x7.938 mm Hubbed - Acetal Gear 10 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
24
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G025B-024-D24-032-064-S3 (Each)
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
24
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G025B-024-D24-032-064-S3 (Each)
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$33.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
30
|
Pitch Circle Diameter (PD)
31.75
mm (Equiv. 1.25 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
33.858
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 15.88 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G032B-030-D24-064-064-A-P (Each)
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
30
|
Pitch Circle Diameter (PD)
31.75
mm (Equiv. 1.25 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
33.858
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 15.88 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G032B-030-D24-064-064-A-P (Each)
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
30
|
Pitch Circle Diameter (PD)
31.750
mm (Equiv. 1.25 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
33.86
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G032B-030-D24-032-064-S3 (Each)

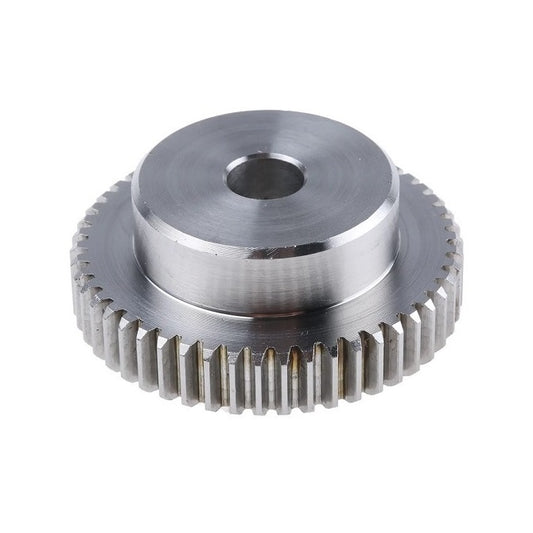

Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$43.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
30
|
Pitch Circle Diameter (PD)
31.750
mm (Equiv. 1.25 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
33.86
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G032B-030-D24-032-064-S3 (Each)
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$43.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.10
mm (Equiv. 1.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
40.208
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal - Brass insert
Hub Diameter (D1): 15.88 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G038B-036-D24-064-064-AB-G (Each)

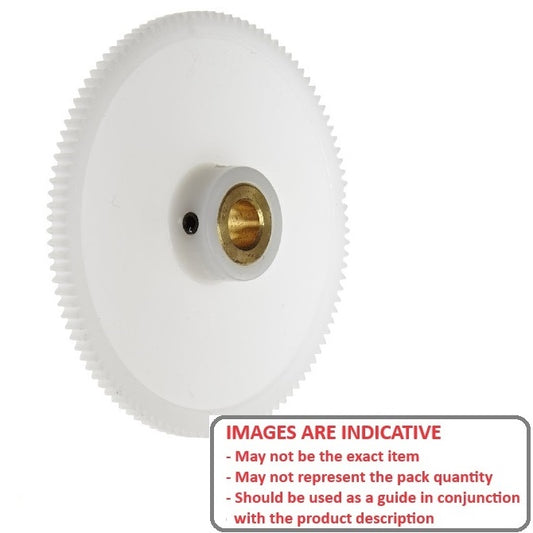

Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Acetal - Brass insert Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.10
mm (Equiv. 1.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
40.208
mm |
|
||
|
Material: Acetal - Brass insert
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 15.88 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G038B-036-D24-064-064-AB-G (Each)
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Acetal - Brass insert Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.100
mm (Equiv. 1.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G038B-036-D24-032-064-S3 (Each)
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$44.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.100
mm (Equiv. 1.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
21.08
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G038B-036-D24-032-064-S3 (Each)
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$44.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.10
mm (Equiv. 1.5 in.) |
Bore (d)
7.874
mm (Equiv. 0.31 in.) |
Outside Diameter (OD)
40.208
mm |
Face Width (FW)
9.53
mm |
Type
Hubbed
|
|
|
Material: Nylon (Polyamide 6/6)
Hub Diameter (D1): 18.75 mm
Hub Projection (HL): 6.35 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G038B-036-D24-095-079-N-P (Each)
Spur Gears - 36 tooth - 38.1x7.874 mm Hubbed - Nylon Polyamide 6/6 Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
36
|
Pitch Circle Diameter (PD)
38.10
mm (Equiv. 1.5 in.) |
Bore (d)
7.874
mm (Equiv. 0.31 in.) |
Outside Diameter (OD)
40.208
mm |
|
||
|
Material: Nylon (Polyamide 6/6)
Face Width (FW): 9.53 mm
Type: Hubbed
Hub Diameter (D1): 18.75 mm
Hub Projection (HL): 6.35 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G038B-036-D24-095-079-N-P (Each)
Spur Gears - 36 tooth - 38.1x7.874 mm Hubbed - Nylon Polyamide 6/6 Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
39
|
Pitch Circle Diameter (PD)
41.28
mm (Equiv. 1.625 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
43.383
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 17.07 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G041B-039-D24-064-079-A-P (Each)

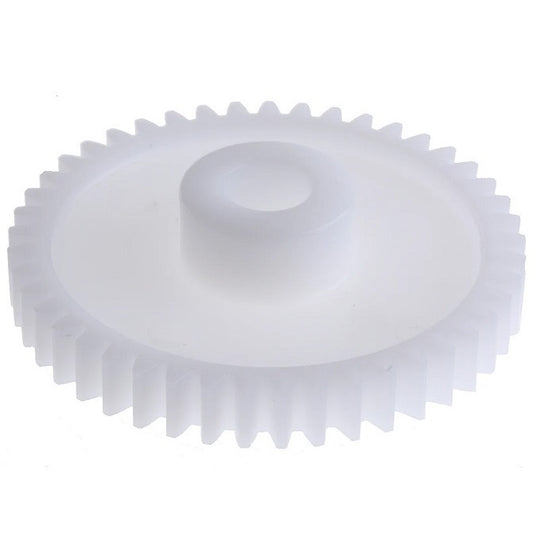

Spur Gears - 39 tooth - 41.28x7.938 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
39
|
Pitch Circle Diameter (PD)
41.28
mm (Equiv. 1.625 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
43.383
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 17.07 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G041B-039-D24-064-079-A-P (Each)
Spur Gears - 39 tooth - 41.28x7.938 mm Hubbed - Acetal Gear 8 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$6.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
48
|
Pitch Circle Diameter (PD)
50.800
mm (Equiv. 2 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
52.83
mm |
Face Width (FW)
4.78
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G051B-048-D24-032-064-S3 (Each)
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$58.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
48
|
Pitch Circle Diameter (PD)
50.800
mm (Equiv. 2 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
52.83
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 4.78 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.4 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G051B-048-D24-032-064-S3 (Each)
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$58.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
54
|
Pitch Circle Diameter (PD)
57.15
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.258
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|

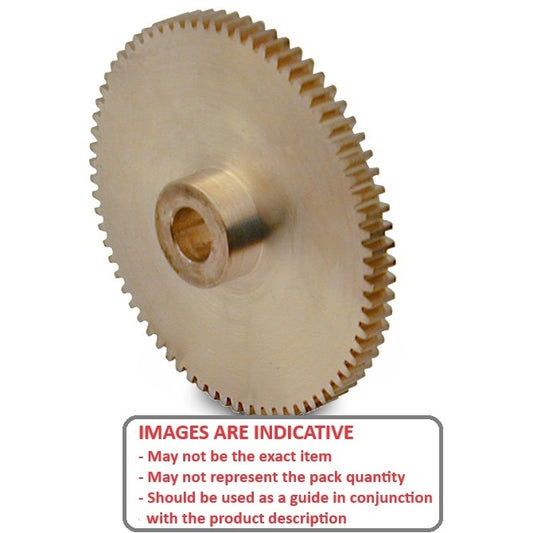

Material: Brass
Hub Diameter (D1): 17.46 mm
Hub Projection (HL): 7.94 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G057B-054-V24-064-079-B-P (Each)

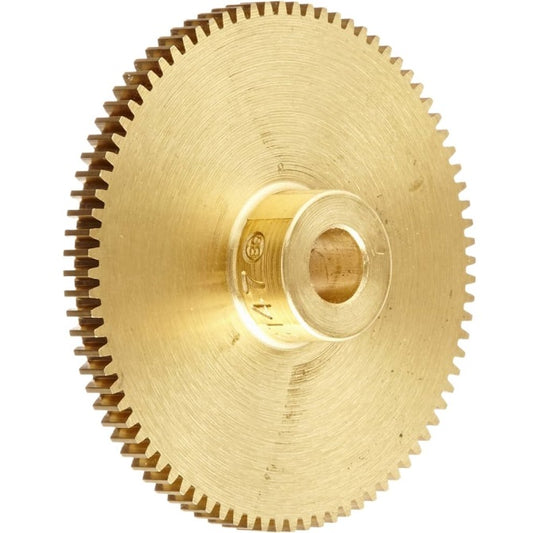

Spur Gears - 54 tooth - 57.15x7.938 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
54
|
Pitch Circle Diameter (PD)
57.15
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.258
mm |
|
||
|
Material: Brass
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 17.46 mm
Hub Projection (HL): 7.94 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree Deleted Item. Available while stocks last. |
||||||
|
Part Number: G057B-054-V24-064-079-B-P (Each)
Spur Gears - 54 tooth - 57.15x7.938 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
60
|
Pitch Circle Diameter (PD)
57.150
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.26
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Hub Diameter (D1): 22.35 mm
Hub Projection (HL): 7.9 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G064B-060-D24-032-079-S3 (Each)

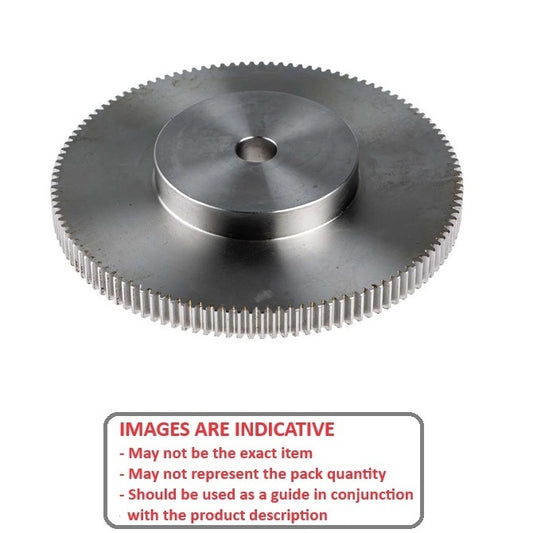

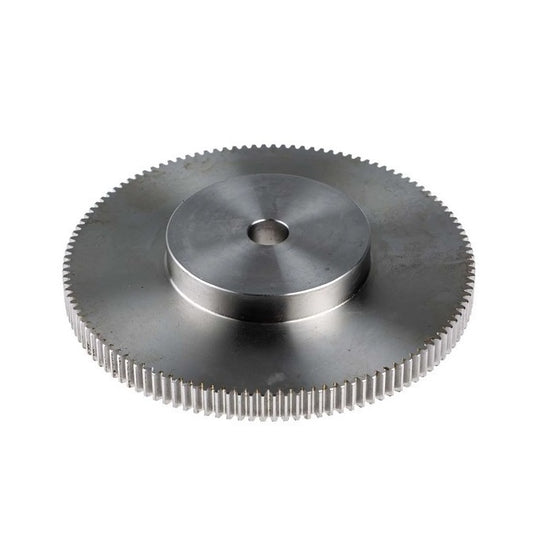

Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$64.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
60
|
Pitch Circle Diameter (PD)
57.150
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.26
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 22.35 mm
Hub Projection (HL): 7.9 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G064B-060-D24-032-079-S3 (Each)
Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear 2 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$64.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
60
|
Pitch Circle Diameter (PD)
63.50
mm (Equiv. 2.5 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
65.608
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
|
|
Material: Acetal
Hub Diameter (D1): 17.07 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G064B-060-D24-064-079-A-P (Each)

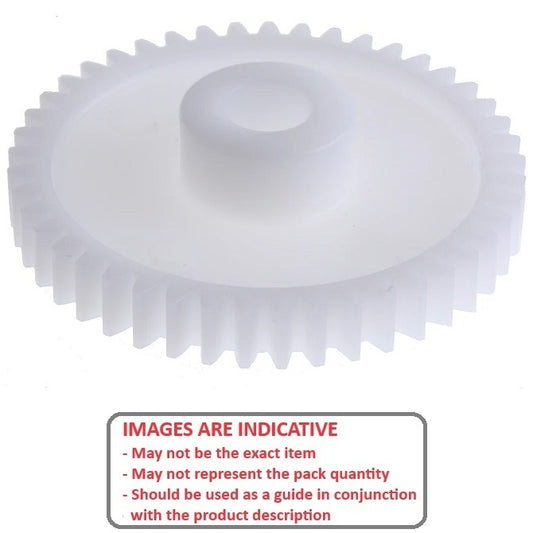

Spur Gears - 60 tooth - 63.5x7.938 mm Hubbed - Acetal Gear 3 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
60
|
Pitch Circle Diameter (PD)
63.50
mm (Equiv. 2.5 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
65.608
mm |
|
||
|
Material: Acetal
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 17.07 mm
Hub Projection (HL): 7.94 mm
Locking Method: Pin Hub - No Set Screw
Category: Gears - Spur - Hubbed - 24DP - 20 Degree |
||||||
|
Part Number: G064B-060-D24-064-079-A-P (Each)
Spur Gears - 60 tooth - 63.5x7.938 mm Hubbed - Acetal Gear 3 Available Now | Further orders can be expected around Mon, Jan 26, 2026 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
