Collection: Gears - Spur - Hubbed - 16DP
Gears -> Spur -> Hubbed -> 16DPThere are 3 products in the sub-categories of Gears - Spur - Hubbed - 16DP. Browse the Gears - Spur - Hubbed - 16DP products table. To narrow down the selection, please choose a sub-category from the links below.
Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel
A selection of 14.5 Degree Steel 16DP Hubbed Spur Gears. PCD in...
Gears - Spur - Hubbed - 16DP - 20 Degree Plastic
A selection of 20 Degree Plastic 16DP Hubbed Spur Gears. PCD in...
Category Details
This category includes various types of spur gears.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Gears - Spur - Hubbed - 16DP category on the MBA Minibearings main store.
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) | Face Width (FW) | Type |
Indicative Image |
|---|---|---|---|---|---|---|
|
Number of Teeth
16
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
28.575
mm |
Face Width (FW)
12.700
mm |
Type
Hubbed
|
|
|
Material: Steel
Hub Diameter (D1): 20.574 mm
Hub Projection (HL): 11.176 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: G025B-016-V16-127-127-CG (Each)
Spur Gears - 16 tooth - 25.4x12.7 mm Hubbed - Steel Gear 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$36.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) |
Indicative Image |
||
|
Number of Teeth
16
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
28.575
mm |
|
||
|
Material: Steel
Face Width (FW): 12.700 mm
Type: Hubbed
Hub Diameter (D1): 20.574 mm
Hub Projection (HL): 11.176 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: G025B-016-V16-127-127-CG (Each)
Spur Gears - 16 tooth - 25.4x12.7 mm Hubbed - Steel Gear 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$36.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

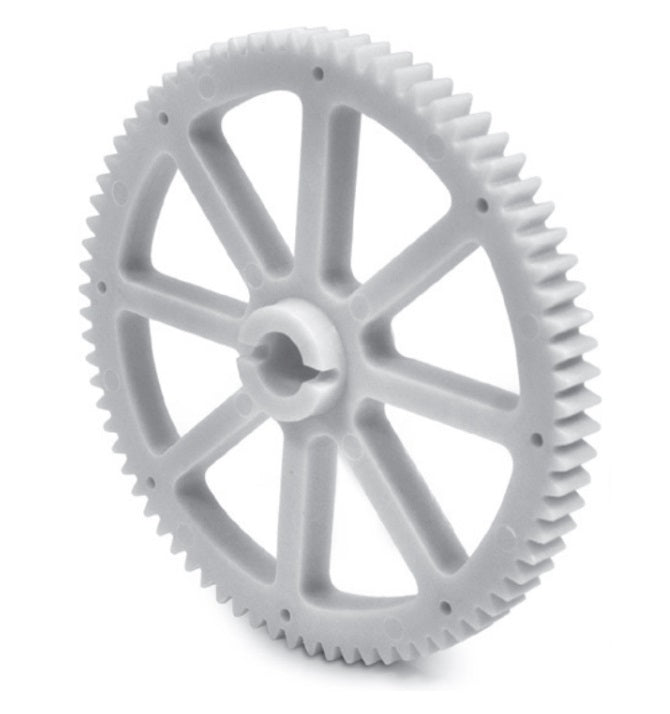

Number of Teeth
76
|
Pitch Circle Diameter (PD)
120.65
mm (Equiv. 4.75 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
123.825
mm |
Face Width (FW)
9.53
mm |
Type
Hubbed
|
|
|
Material: Glass Filled Acetal
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic Deleted Item. Available while stocks last. |
||||||
|
Part Number: G121B-076-D16-095-127-AGPD (Each)
Spur Gears - 76 tooth - 120.65x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
76
|
Pitch Circle Diameter (PD)
120.65
mm (Equiv. 4.75 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
123.825
mm |
|
||
|
Material: Glass Filled Acetal
Face Width (FW): 9.53 mm
Type: Hubbed
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic Deleted Item. Available while stocks last. |
||||||
|
Part Number: G121B-076-D16-095-127-AGPD (Each)
Spur Gears - 76 tooth - 120.65x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Number of Teeth
80
|
Pitch Circle Diameter (PD)
127.00
mm (Equiv. 5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
130.175
mm |
Face Width (FW)
9.53
mm |
Type
Hubbed
|
|
|
Material: Glass Filled Acetal
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic Deleted Item. Available while stocks last. |
||||||
|
Part Number: G127B-080-D16-095-127-AGPD (Each)
Spur Gears - 80 tooth - 127x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Number of Teeth
80
|
Pitch Circle Diameter (PD)
127.00
mm (Equiv. 5 in.) |
Bore (d)
12.700
mm (Equiv. 0.5 in.) |
Outside Diameter (OD)
130.175
mm |
|
||
|
Material: Glass Filled Acetal
Face Width (FW): 9.53 mm
Type: Hubbed
Hub Diameter (D1): 22.23 mm
Hub Projection (HL): 12.70 mm
Locking Method: Pin Hub Extended Both Sides - No Set Screw - Spoked
Category: Gears - Spur - Hubbed - 16DP - 20 Degree Plastic Deleted Item. Available while stocks last. |
||||||
|
Part Number: G127B-080-D16-095-127-AGPD (Each)
Spur Gears - 80 tooth - 127x12.7 mm Hubbed - Glass Filled Acetal Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
