Gears - Rack - Imperial - 96DP - Stainless

2 Products in this selection

This is a combined category of products from Stainless 96DP Imperial Rack Gears. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spur Gears
Length (L) Face Width (fw) Height (h) Pitch Height (ph) Pressure Angle Indicative
76.2
mm 		4.242
mm 		9.017
mm 		8.753
mm 		20
° 		1178274 | GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2 mm x 4.242 mm x 9.017 mm
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base    Shape: Rectangular    Hole Centre Distance (C.D.): 22.23 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2 mm x 4.242 mm x 9.017 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$66.00 AUD $40.00 AUD
Each
Length (L) Face Width (fw) Height (h) Pitch Height (ph) Indicative
76.2
mm 		4.242
mm 		9.017
mm 		8.753
mm 		1178274 | GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2 mm x 4.242 mm x 9.017 mm
Material: Stainless Steel AISI 416 Rc 36-42    Pressure Angle: 20 °    Precision: Precision    Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base    Shape: Rectangular    Hole Centre Distance (C.D.): 22.23 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2 mm x 4.242 mm x 9.017 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$66.00 AUD $40.00 AUD
Each
279.40
mm 		4.242
mm 		9.017
mm 		8.753
mm 		20

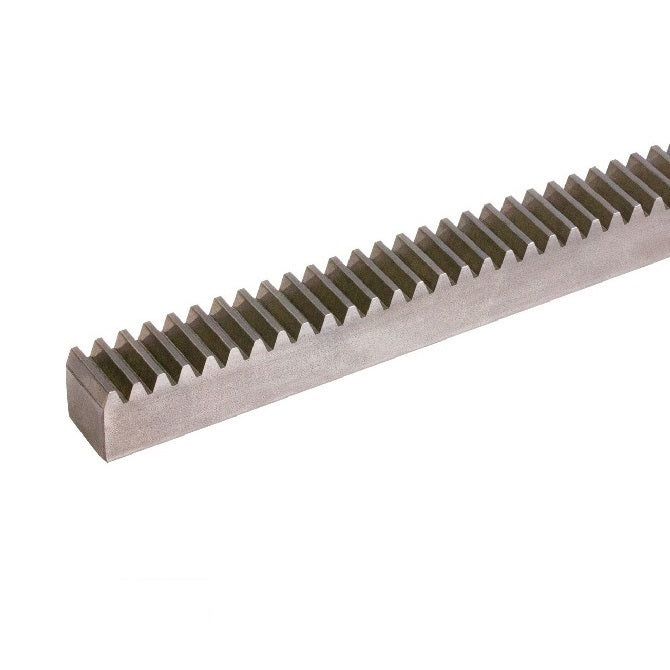

° 		1213934 | GR-D96-04-0279-09-S41 --- Rack Gears - 279.4 mm x 4.242 mm x 9.017 mm
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Hole Details (H.D): None    Shape: Rectangular    Hole Centre Distance (C.D.): 96 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Plain
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4 mm x 4.242 mm x 9.017 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Mon, Mar 03, 2025
$175.59 AUD
$175.59 AUD
Each
View the product page first if you are unsure ->
279.40
mm 		4.242
mm 		9.017
mm 		8.753
mm 		1213934 | GR-D96-04-0279-09-S41 --- Rack Gears - 279.4 mm x 4.242 mm x 9.017 mm
Material: Stainless Steel AISI 416 Rc 36-42    Pressure Angle: 20 °    Precision: Precision    Mounting Hole Details (H.D): None    Shape: Rectangular    Hole Centre Distance (C.D.): 96 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Plain
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4 mm x 4.242 mm x 9.017 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Mon, Mar 03, 2025
$175.59 AUD
$175.59 AUD
Each
View the product page first if you are unsure.
