Collection: Gears - Rack - Imperial - 32DP
Gears -> Rack -> Imperial -> 32DPThere are 2 products in the sub-categories of Gears - Rack - Imperial - 32DP. Browse the Gears - Rack - Imperial - 32DP products table. To narrow down the selection, please choose a sub-category from the links below.
Gears - Rack - Imperial - 32DP - Plastic
A selection of Plastic 32DP Imperial Rack Gears. 14.5 Degree Pressure Angle....
Gears - Rack - Imperial - 32DP - Stainless Steel
A selection of Stainless Steel 32DP Imperial Rack Gears. 20 Degree Pressure...
Category Details
This category includes various types of rack gears.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Gears - Rack - Imperial - 32DP category on the MBA Minibearings main store.
| Length (L) | Face Width (fw) | Height (h) | Pitch Type | Pitch Height (ph) | Pressure Angle |
Indicative Image |
|---|---|---|---|---|---|---|

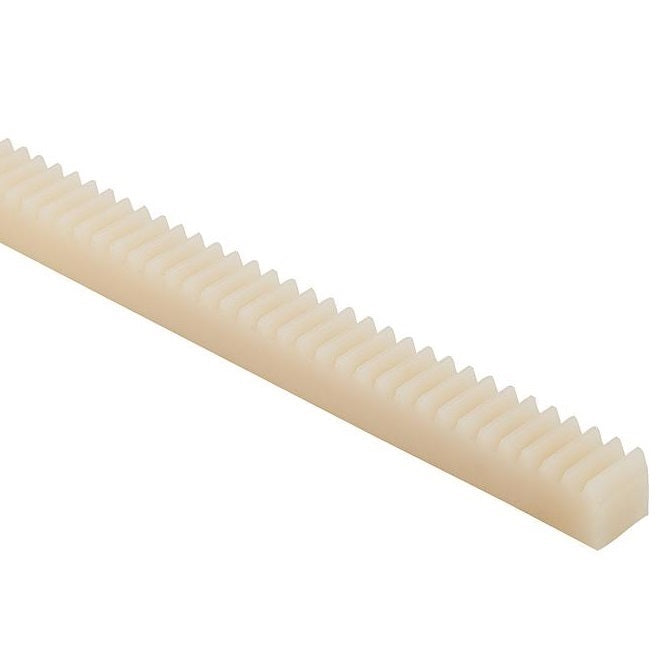

| Rack Gears - 304.8x4.762x4.762 mm Imperial - Nylon 101 | ||||||
|
Length (L)
304.80
mm |
Face Width (fw)
4.762
mm |
Height (h)
4.762
mm |
Pitch Type
32DP - 14.5 PA
|
Pitch Height (ph)
3.970
mm |
Pressure Angle
14.5
°
|
|
|
Material: Nylon 101
Precision: Commercial
Mounting Holes: None
Shape: Square
Category: Gears - Rack - Imperial - 32DP - Plastic |
||||||
|
Part Number: GR-V32-05-0305-05-N (Each)
3 Available Now | Further orders can be expected around Sun, Jul 05, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Length (L) | Face Width (fw) | Height (h) | Pitch Type |
Indicative Image |
||
| Rack Gears - 304.8x4.762x4.762 mm Imperial - Nylon 101 | ||||||
|
Length (L)
304.80
mm |
Face Width (fw)
4.762
mm |
Height (h)
4.762
mm |
Pitch Type
32DP - 14.5 PA
|
|
||
|
Material: Nylon 101
Pitch Height (ph): 3.970 mm
Pressure Angle: 14.5 °
Precision: Commercial
Mounting Holes: None
Shape: Square
Category: Gears - Rack - Imperial - 32DP - Plastic |
||||||
|
Part Number: GR-V32-05-0305-05-N (Each)
3 Available Now | Further orders can be expected around Sun, Jul 05, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

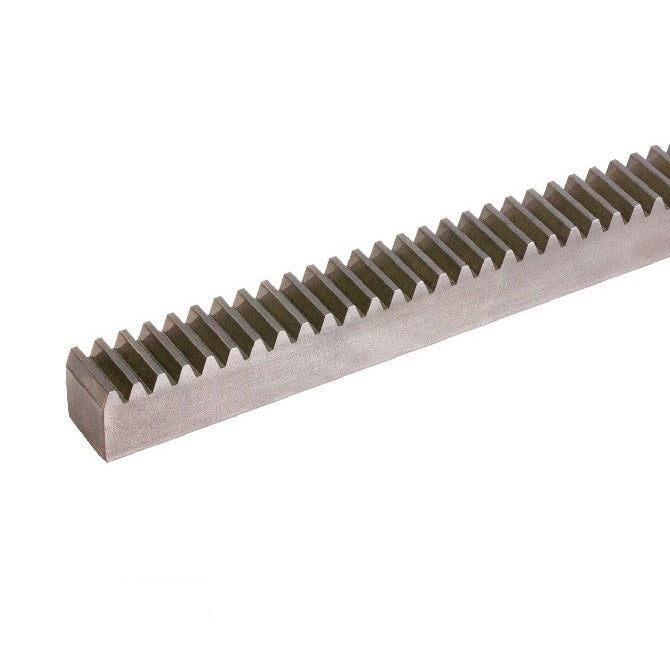

| Rack Gears - 457.2x5.842x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42 | ||||||
|
Length (L)
457.20
mm |
Face Width (fw)
5.842
mm |
Height (h)
12.192
mm |
Pitch Type
32DP
|
Pitch Height (ph)
11.397
mm |
Pressure Angle
20
°
|
|
|
Material: Stainless Steel AISI 416 Rc 36-42
Precision: Precision
Mounting Holes: None
Shape: Rectangular
Category: Gears - Rack - Imperial - 32DP - Stainless Steel |
||||||
|
Part Number: GR-D32-06-0457-12-S41 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jul 05, 2026 Regular price
$296.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Rack Gears - 457.2x5.842x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42 | ||||||
|
Length (L)
457.20
mm |
Face Width (fw)
5.842
mm |
Height (h)
12.192
mm |
Pitch Type
32DP
|
|
||
|
Material: Stainless Steel AISI 416 Rc 36-42
Pitch Height (ph): 11.397 mm
Pressure Angle: 20 °
Precision: Precision
Mounting Holes: None
Shape: Rectangular
Category: Gears - Rack - Imperial - 32DP - Stainless Steel |
||||||
|
Part Number: GR-D32-06-0457-12-S41 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jul 05, 2026 Regular price
$296.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
