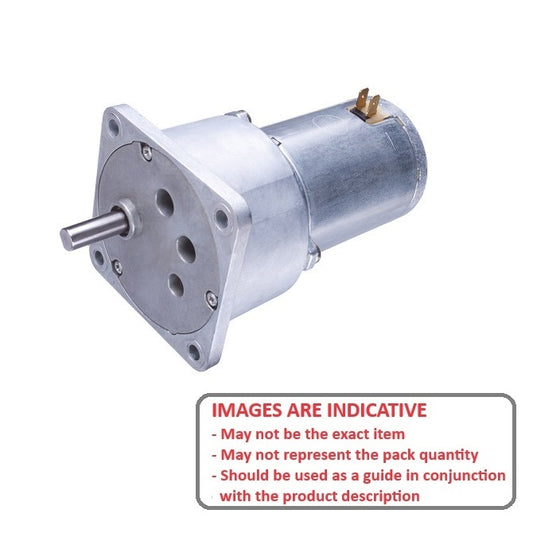

Gearmotors - DC PM - Size 70x114

1 Item Available
  • Permanent Magnet.
  • Max. Allowable Radial Load: 100N (10mm from mounting surface).
  • Max. Allowable Axial Load: 30N.
  • Axial Play: 0.05 - 0.6mm. Allowable Temperature Range: -20oC to +60oC.
  • Integral CD PM Motor - Brush type commutation - 12 segment commutator - RFI protection standard.
  • Gear train with steel and high quality plastic gears - Terminal dimensions 4.8 x 0.8 - Weight: 1200g.
Voltage Rated Torque Rated Speed Rated Current No Load Speed Terminal Resistance Indicative
24V
DC 		3300
mNm 		23.5
rpm 		1250
mA 		31
rpm 		7.60
 Ohms 		1131893 | 1.61.050.466 --- Gearmotors - 24V x 3300 mNm x 23.5 rpm
Gear Ratio : 96.5 : 1    Gear Stages : 4
Part Number: 1.61.050.466 Gearmotors - 24V x 3300 mNm x 23.5 rpm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$250.00 AUD
$412.50 AUD $250.00 AUD
Each
Voltage Rated Torque Rated Speed Rated Current Indicative
24V
DC 		3300
mNm 		23.5
rpm 		1250
mA 		1131893 | 1.61.050.466 --- Gearmotors - 24V x 3300 mNm x 23.5 rpm
No Load Speed: 31 rpm    Terminal Resistance: 7.60  Ohms    Gear Ratio : 96.5 : 1    Gear Stages : 4
Part Number: 1.61.050.466 Gearmotors - 24V x 3300 mNm x 23.5 rpm
1 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$250.00 AUD
$412.50 AUD $250.00 AUD
Each
