Gearmotors - DC - 12.1mm Diameter

Gearmotors -> DC -> 12.1mm Diameter

There are 2 products in the sub-categories of Gearmotors - DC - 12.1mm Diameter. Browse the Gearmotors - DC - 12.1mm Diameter products table.

Category Details

A selection of 12.1mm Diameter DC Gearmotors. Small light weight geared motors used in toys and small solar applications

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.

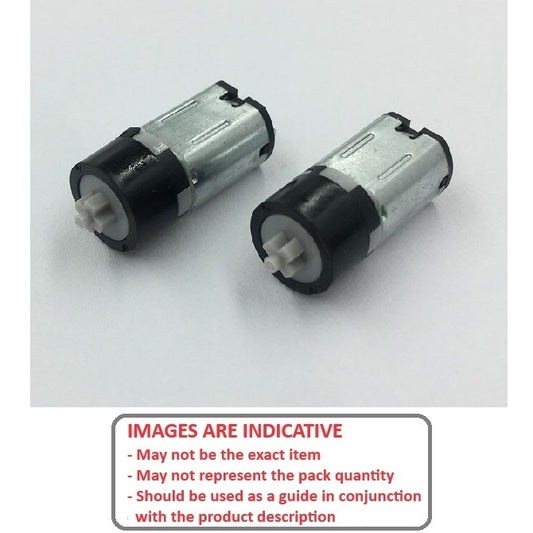

  • NOTE! These do not have a standard output shaft. The output is a plastic crossed block (see diagram) which is designed to be fitted to a fabricated coupling in O.E.M applications.
  • However, the plastic block would be suitable for drilling and attaching objects with wire for rotating mobile type applications.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Gearmotors - DC - 12.1mm Diameter category on the MBA Minibearings main store.
Rated Voltage Approx Output Speed Reduction Ratio Length Max Efficiency Motor Speed Max Efiiciency Motor Current Indicative
Rated Voltage
DC 1.5
V
Approx Output Speed
16.60
RPM
Reduction Ratio
180:1

Length
28.0
mm
Max Efficiency Motor Speed
3000
RPM
Max Efiiciency Motor Current
0.16
A
DC Gearmotors - 1.5 V - 16.6 RPM - 180:1
Max Efficiency Motor Torque: 5.00 g.cm    Max Efficiency Output Watts: 0.03 W    No Load Motor Speed: 3500 RPM    No Load Motor Current: 0.09 A
Deleted Item. Available while stocks last.
Part Number: 12GM-1-180 (PK-2)
DC Gearmotors - DC 1.5 V 16.6 RPM - 180:1 12.1mm Diameter
7 units (14 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (14 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Rated Voltage Approx Output Speed Reduction Ratio Length Indicative
Rated Voltage
DC 1.5
V
Approx Output Speed
16.60
RPM
Reduction Ratio
180:1

Length
28.0
mm
DC Gearmotors - 1.5 V - 16.6 RPM - 180:1
Max Efficiency Motor Speed: 3000 RPM    Max Efiiciency Motor Current: 0.16 A    Max Efficiency Motor Torque: 5.00 g.cm    Max Efficiency Output Watts: 0.03 W    No Load Motor Speed: 3500 RPM    No Load Motor Current: 0.09 A
Deleted Item. Available while stocks last.
Part Number: 12GM-1-180 (PK-2)
DC Gearmotors - DC 1.5 V 16.6 RPM - 180:1 12.1mm Diameter
7 units (14 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (14 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Rated Voltage
DC 1.5
V
Approx Output Speed
31.25
RPM
Reduction Ratio
96:1

Length
28.0
mm
Max Efficiency Motor Speed
3000
RPM
Max Efiiciency Motor Current
0.16
A

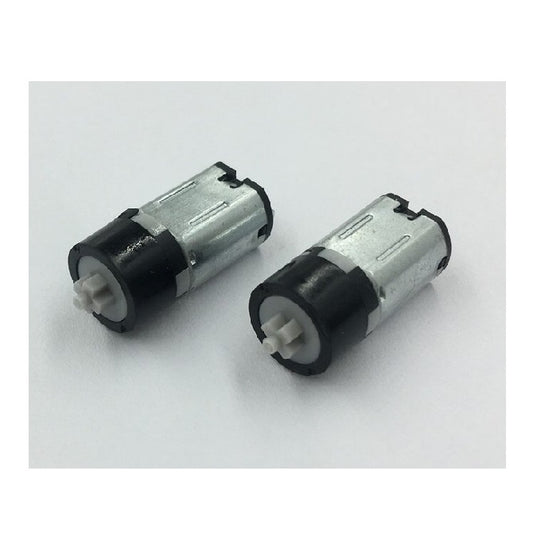

DC Gearmotors - 1.5 V - 31.25 RPM - 96:1
Max Efficiency Motor Torque: 5.00 g.cm    Max Efficiency Output Watts: 0.03 W    No Load Motor Speed: 3500 RPM    No Load Motor Current: 0.09 A
Deleted Item. Available while stocks last.
Part Number: 12GM-1-96 (Each)
DC Gearmotors - DC 1.5 V 31.25 RPM - 96:1 12.1mm Diameter
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Rated Voltage
DC 1.5
V
Approx Output Speed
31.25
RPM
Reduction Ratio
96:1

Length
28.0
mm
DC Gearmotors - 1.5 V - 31.25 RPM - 96:1
Max Efficiency Motor Speed: 3000 RPM    Max Efiiciency Motor Current: 0.16 A    Max Efficiency Motor Torque: 5.00 g.cm    Max Efficiency Output Watts: 0.03 W    No Load Motor Speed: 3500 RPM    No Load Motor Current: 0.09 A
Deleted Item. Available while stocks last.
Part Number: 12GM-1-96 (Each)
DC Gearmotors - DC 1.5 V 31.25 RPM - 96:1 12.1mm Diameter
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
