Dual Vee - Tracks

1 Item Available
This category includes various types of tracks dual vee.
  • Linear guide system designed for high-speed, low-friction movement, particularly in harsh or dirty environments.
  • Uses wheels with a 90-degree V-shape that roll on a complementary track with a 90-degree V-groove, allowing the wheel to sweep debris away from the track as it moves.
  • Self-cleaning design makes the system reliable and durable in applications where other systems might fail.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Dual Vee - Tracks.
Track Size Overall Length (L) Overall Width (F) Height (E / MDT) Type Hole Spacing (C) Indicative
Track Size
3
Overall Length (L)
1543.1
mm
Overall Width (F)
8.71
mm
Height (E / MDT)
22.22 / 6.35
mm
Type
Single Edged
Hole Spacing (C)
76.2
mm

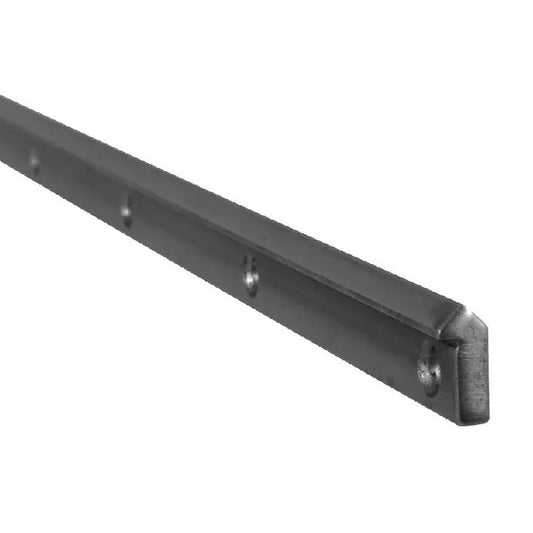

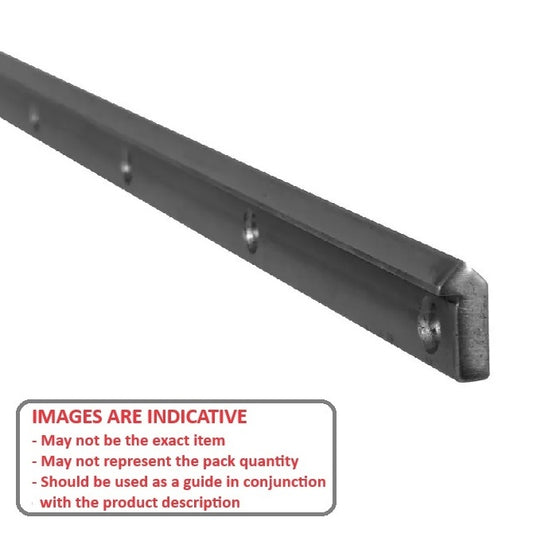

Tracks Dual Vee - Track Size 3 - 1543.1x8.71 mm - Carbon Steel AISI 1045
Material: Carbon Steel AISI 1045    Number of Holes: 21 (7.14mm)    End Hole Spacing (B): 9.65 mm
Category: Dual Vee - Tracks - Steel
Part Number: DVT3-1543-HCU (Length) Tracks Dual Vee - Track Size 3 - 1543.1x8.71 mm - Carbon Steel AISI 1045
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$120.00 AUD
$228.00 AUD $120.00 AUD
Per Length
Track Size Overall Length (L) Overall Width (F) Height (E / MDT) Indicative
Track Size
3
Overall Length (L)
1543.1
mm
Overall Width (F)
8.71
mm
Height (E / MDT)
22.22 / 6.35
mm
Tracks Dual Vee - Track Size 3 - 1543.1x8.71 mm - Carbon Steel AISI 1045
Material: Carbon Steel AISI 1045    Type: Single Edged    Hole Spacing (C): 76.2 mm    Number of Holes: 21 (7.14mm)    End Hole Spacing (B): 9.65 mm
Category: Dual Vee - Tracks - Steel
Part Number: DVT3-1543-HCU (Length) Tracks Dual Vee - Track Size 3 - 1543.1x8.71 mm - Carbon Steel AISI 1045
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$120.00 AUD
$228.00 AUD $120.00 AUD
Per Length
