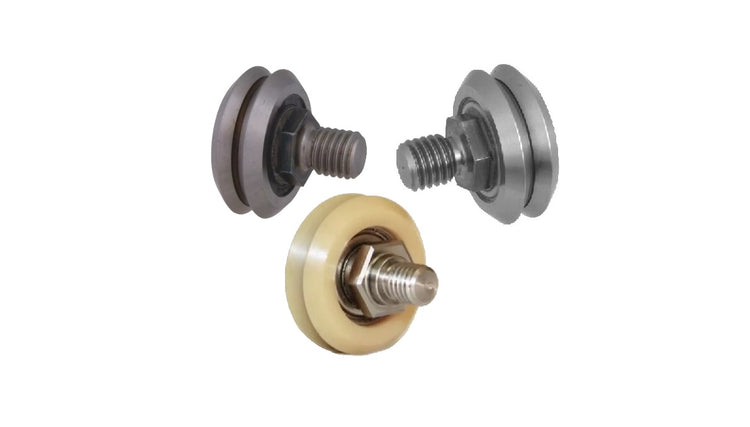

Collection: Dual Vee - Studded Guide Wheels
Dual Vee -> Studded Guide WheelsThere are 6 products in the sub-categories of Dual Vee - Studded Guide Wheels. Browse the Dual Vee - Studded Guide Wheels products table.
Category Details
A selection of Studded Guide Wheels Dual Vee. Vee grooved track roller guide wheels.
- An expanded range may be available on special order. Please enquire.
- Match with correct Track Size.
- Note! OD is reference only. Allow up to 1.2 mm larger than listed.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Dual Vee - Studded Guide Wheels category on the MBA Minibearings main store.
| Size Reference | Outside Diameter (O.D) | Journal Width (W) | Overall Length (L) | Wheel Type | Offset Value (EC) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
Wheel Type
Adjustable
|
Offset Value (EC)
0.46
mm |
|
|
Material: Chrome Steel SAE 52100 with Shields
Static Load (Radial / Axial): 65 / - kg
Thread Size x Length (l2): M5 x 0.8 x 7.6
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS0-ADJ-ZZ (Each)

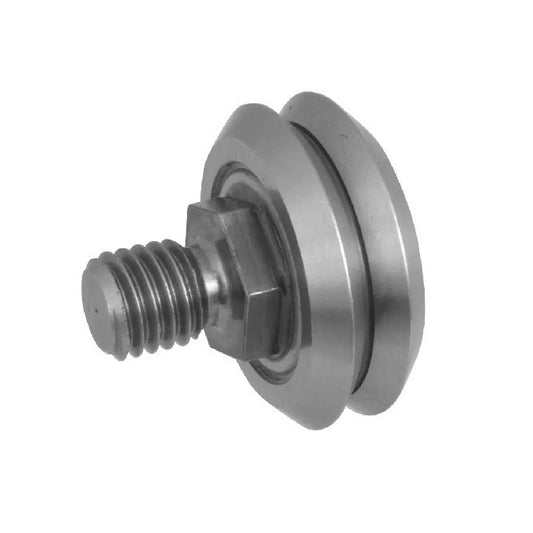

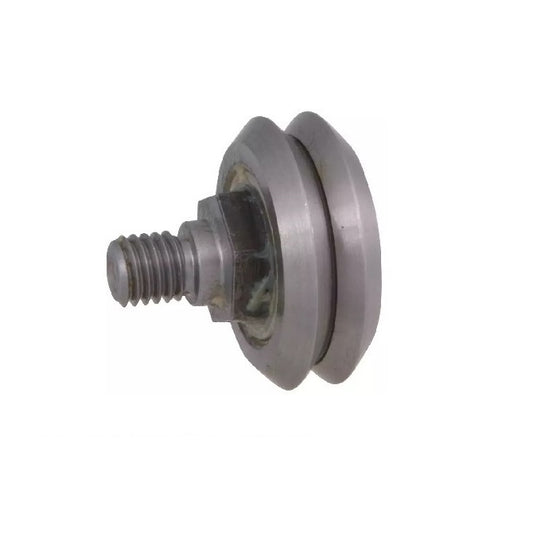

Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$55.61 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Size Reference | Outside Diameter (O.D) | Journal Width (W) | Overall Length (L) |
Indicative Image |
||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
|
||
|
Material: Chrome Steel SAE 52100 with Shields
Wheel Type: Adjustable
Offset Value (EC): 0.46 mm
Static Load (Radial / Axial): 65 / - kg
Thread Size x Length (l2): M5 x 0.8 x 7.6
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS0-ADJ-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$55.61 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
Wheel Type
Adjustable
|
Offset Value (EC)
0.81
mm |
|
| Material: Polymer Static Load (Radial / Axial): 3 / - kg Thread Size x Length (l2): M5 x 0.8 x 7.6 | ||||||
|
Part Number: DVWS0-ADJ-POL (Each)

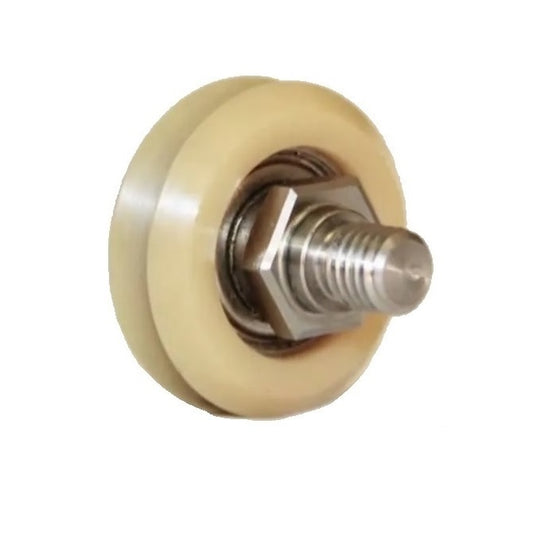

Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Polymer Guide Wheel 5 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$51.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
|
||
| Material: Polymer Wheel Type: Adjustable Offset Value (EC): 0.81 mm Static Load (Radial / Axial): 3 / - kg Thread Size x Length (l2): M5 x 0.8 x 7.6 | ||||||
|
Part Number: DVWS0-ADJ-POL (Each)
Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Polymer Guide Wheel 5 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$51.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
Wheel Type
Stationary
|
Offset Value (EC)
0.46
mm |
|
|
Material: Chrome Steel SAE 52100 with Shields
Static Load (Radial / Axial): 65 / - kg
Thread Size x Length (l2): M6 x 1.0 x 7.6
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS0-ZZ (Each)

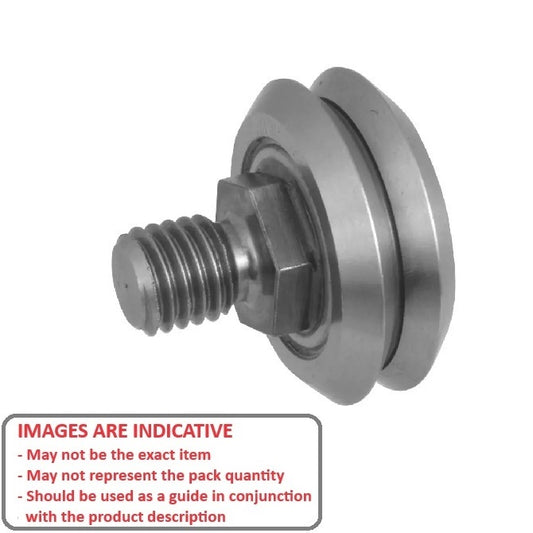

Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
|
||
|
Material: Chrome Steel SAE 52100 with Shields
Wheel Type: Stationary
Offset Value (EC): 0.46 mm
Static Load (Radial / Axial): 65 / - kg
Thread Size x Length (l2): M6 x 1.0 x 7.6
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS0-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
Wheel Type
Stationary
|
Offset Value (EC)
0.81
mm |
|
| Material: Polymer Static Load (Radial / Axial): 3 / - kg Thread Size x Length (l2): M6 x 1.0 x 7.6 | ||||||
|
Part Number: DVWS0-POL (Each)
Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Polymer Guide Wheel 5 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$49.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Size Reference
0
|
Outside Diameter (O.D)
14.8
mm (Equiv. 0.583 in.) |
Journal Width (W)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
17.0
mm |
|
||
| Material: Polymer Wheel Type: Stationary Offset Value (EC): 0.81 mm Static Load (Radial / Axial): 3 / - kg Thread Size x Length (l2): M6 x 1.0 x 7.6 | ||||||
|
Part Number: DVWS0-POL (Each)
Studded Guide Wheels Dual Vee - Size Reference 0 - 14.8x6.35 mm - Polymer Guide Wheel 5 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$49.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Size Reference
2
|
Outside Diameter (O.D)
30.7
mm (Equiv. 1.209 in.) |
Journal Width (W)
11.13
mm (Equiv. 0.438 in.) |
Overall Length (L)
26.6
mm |
Wheel Type
Adjustable
|
Offset Value (EC)
0.76
mm |
|
|
Material: Chrome Steel SAE 52100 with Shields
Static Load (Radial / Axial): 279 / 263 kg
Dynamic Load (Radial / Axial): 471 / 239 kg
Thread Size x Length (l2): M8 x 1.25 x 10.4
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS2-ADJ-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 2 - 30.7x11.13 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Size Reference
2
|
Outside Diameter (O.D)
30.7
mm (Equiv. 1.209 in.) |
Journal Width (W)
11.13
mm (Equiv. 0.438 in.) |
Overall Length (L)
26.6
mm |
|
||
|
Material: Chrome Steel SAE 52100 with Shields
Wheel Type: Adjustable
Offset Value (EC): 0.76 mm
Static Load (Radial / Axial): 279 / 263 kg
Dynamic Load (Radial / Axial): 471 / 239 kg
Thread Size x Length (l2): M8 x 1.25 x 10.4
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS2-ADJ-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 2 - 30.7x11.13 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Size Reference
2
|
Outside Diameter (O.D)
30.7
mm (Equiv. 1.209 in.) |
Journal Width (W)
11.13
mm (Equiv. 0.438 in.) |
Overall Length (L)
26.6
mm |
Wheel Type
Stationary
|
|
|
|
Material: Chrome Steel SAE 52100 with Shields
Static Load (Radial / Axial): 279 / 263 kg
Dynamic Load (Radial / Axial): 471 / 239 kg
Thread Size x Length (l2): M10 x 1.5 x 11.4
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS2-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 2 - 30.7x11.13 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 36 Available Now | Item Discontinued - Up to 36 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$61.39 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Size Reference
2
|
Outside Diameter (O.D)
30.7
mm (Equiv. 1.209 in.) |
Journal Width (W)
11.13
mm (Equiv. 0.438 in.) |
Overall Length (L)
26.6
mm |
|
||
|
Material: Chrome Steel SAE 52100 with Shields
Wheel Type: Stationary
Static Load (Radial / Axial): 279 / 263 kg
Dynamic Load (Radial / Axial): 471 / 239 kg
Thread Size x Length (l2): M10 x 1.5 x 11.4
Bearing Type: Metal Shielded
Deleted Item. Available while stocks last. |
||||||
|
Part Number: DVWS2-ZZ (Each)
Studded Guide Wheels Dual Vee - Size Reference 2 - 30.7x11.13 mm - Chrome Steel SAE 52100 with Shields Guide Wheel 36 Available Now | Item Discontinued - Up to 36 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$61.39 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
