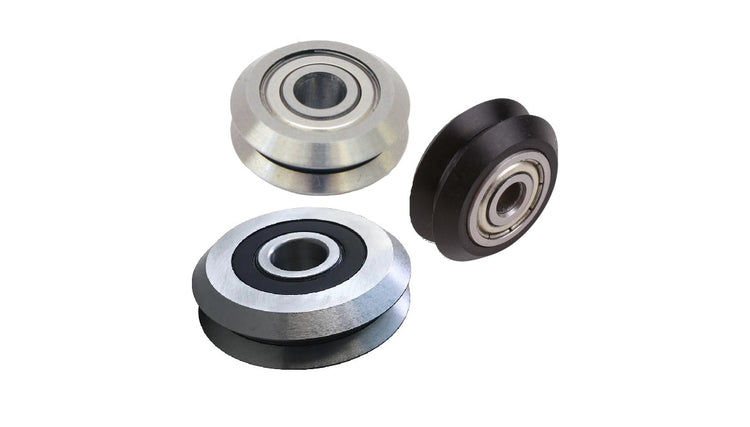

Collection: Dual Vee - Plain Guide Wheels
- Dual Vee (With Images)
- Plain Guide Wheels
5 Products in this selection
- Vee grooved track roller guide wheels with Abec 5 precision bearings.
- Match with correct Track Size.
Additional resources:
A more comprehensive listing may be found on the MBA Minibearings main store at Dual Vee - Plain Guide Wheels.
A more comprehensive listing may be found on the MBA Minibearings main store at Dual Vee - Plain Guide Wheels.
| Guide Wheel Size Reference | Outside Diameter (O.D) | Journal Width (W) | Groove Top Width (A) | Bore (d) | Bottom of Groove to Ctre (MDw) |
Indicative Image |
|---|---|---|---|---|---|---|
|

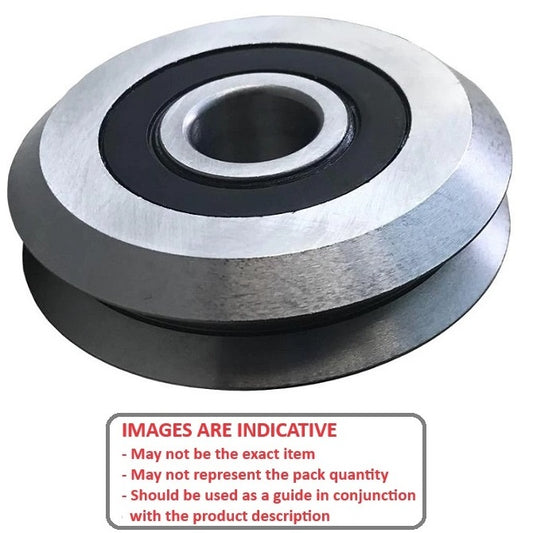

1
|
19.558
mm |
7.938
mm |
3.810
mm |
4.762
mm |
7.95
mm |
|
| Material: Stainless Steel AISI 440C Radial Working Load Capacity: 65 KgF Axial Working Load Capacity: 27 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR19.558-4.762-YY-VP-3.810 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 1 - 19.558x7.938 mm - Stainless Steel AISI 440C
3 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$26.51 AUD
Regular price
Unit price
per
Each
|
||||||
| Guide Wheel Size Reference | Outside Diameter (O.D) | Journal Width (W) | Groove Top Width (A) |
Indicative Image |
||
|
1
|
19.558
mm |
7.938
mm |
3.810
mm |
|
||
| Material: Stainless Steel AISI 440C Bore (d): 4.762 mm Bottom of Groove to Ctre (MDw): 7.95 mm Radial Working Load Capacity: 65 KgF Axial Working Load Capacity: 27 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR19.558-4.762-YY-VP-3.810 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 1 - 19.558x7.938 mm - Stainless Steel AISI 440C
3 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$26.51 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|

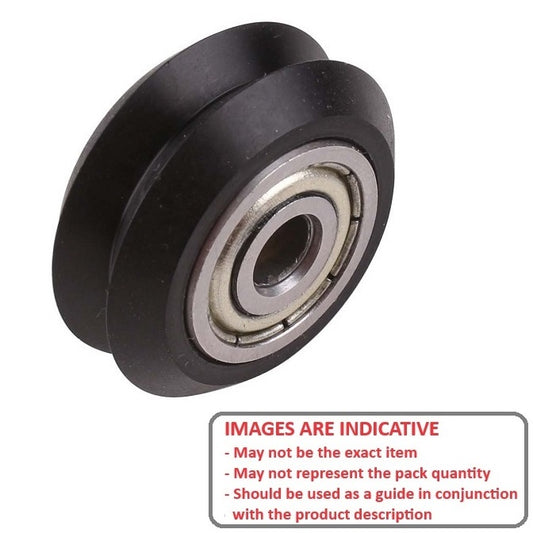

1 or 2
|
24.300
mm |
5.000
mm |
4.800
mm |
5.000
mm |
9.80
mm |
|
| Material: Chrome Steel SAE 52100 with Economy Plastic Vee Radial Working Load Capacity: 65 KgF Axial Working Load Capacity: 27 KgF Bearing Type: Shielded Bearing | ||||||
|
Part Number: MR24.300-5.000-ZZ-VP-4.800 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 1 or 2 24.3x5 mm - Chrome Steel SAE 52100 with Economy Plastic Vee
30 Available Now | Further orders can be expected around Sun, May 11, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
1 or 2
|
24.300
mm |
5.000
mm |
4.800
mm |
|
||
| Material: Chrome Steel SAE 52100 with Economy Plastic Vee Bore (d): 5.000 mm Bottom of Groove to Ctre (MDw): 9.80 mm Radial Working Load Capacity: 65 KgF Axial Working Load Capacity: 27 KgF Bearing Type: Shielded Bearing | ||||||
|
Part Number: MR24.300-5.000-ZZ-VP-4.800 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 1 or 2 24.3x5 mm - Chrome Steel SAE 52100 with Economy Plastic Vee
30 Available Now | Further orders can be expected around Sun, May 11, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
2
|
30.734
mm |
11.113
mm |
5.588
mm |
9.525
mm |
12.70
mm |
|
| Material: Stainless Steel AISI 440C Radial Working Load Capacity: 157 KgF Axial Working Load Capacity: 68 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR30.734-9.525-YY-VP-5.588 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 2 - 30.734x11.113 mm - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Sun, May 11, 2025 Regular price
$52.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
2
|
30.734
mm |
11.113
mm |
5.588
mm |
|
||
| Material: Stainless Steel AISI 440C Bore (d): 9.525 mm Bottom of Groove to Ctre (MDw): 12.70 mm Radial Working Load Capacity: 157 KgF Axial Working Load Capacity: 68 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR30.734-9.525-YY-VP-5.588 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 2 - 30.734x11.113 mm - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Sun, May 11, 2025 Regular price
$52.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
3
|
45.720
mm |
15.875
mm |
8.128
mm |
12.000
mm |
19.05
mm |
|
| Material: Stainless Steel AISI 440C Radial Working Load Capacity: 338 KgF Axial Working Load Capacity: 186 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR45.72-012-YY-VP-8.128 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 3 - 45.72x15.875 mm - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Sun, May 11, 2025 Regular price
$109.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
3
|
45.720
mm |
15.875
mm |
8.128
mm |
|
||
| Material: Stainless Steel AISI 440C Bore (d): 12.000 mm Bottom of Groove to Ctre (MDw): 19.05 mm Radial Working Load Capacity: 338 KgF Axial Working Load Capacity: 186 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR45.72-012-YY-VP-8.128 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 3 - 45.72x15.875 mm - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Sun, May 11, 2025 Regular price
$109.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|

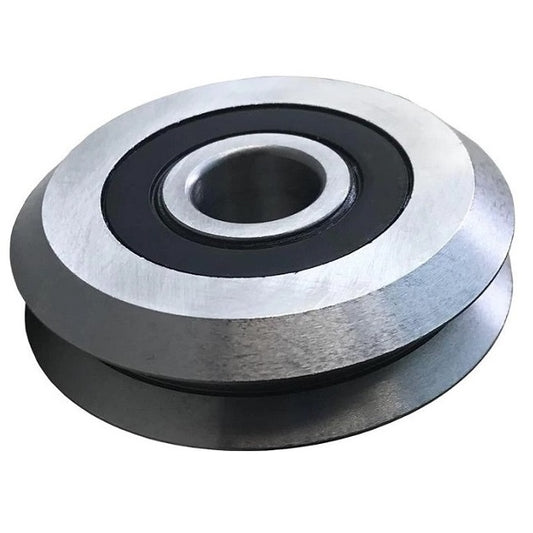

4
|
59.944
mm |
19.050
mm |
9.652
mm |
15.000
mm |
25.40
mm |
|
| Material: Stainless Steel AISI 440C Radial Working Load Capacity: 516 KgF Axial Working Load Capacity: 439 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR59.94415-YY-VP-9.652 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 4 - 59.944x19.05 mm - Stainless Steel AISI 440C
6 Available Now | Further orders can be expected around Sun, May 11, 2025 Regular price
$88.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
4
|
59.944
mm |
19.050
mm |
9.652
mm |
|
||
| Material: Stainless Steel AISI 440C Bore (d): 15.000 mm Bottom of Groove to Ctre (MDw): 25.40 mm Radial Working Load Capacity: 516 KgF Axial Working Load Capacity: 439 KgF Bearing Type: Sealed Bearing | ||||||
|
Part Number: SMR59.94415-YY-VP-9.652 Plain Guide Wheels Dual Vee - Guide Wheel Size Reference 4 - 59.944x19.05 mm - Stainless Steel AISI 440C
6 Available Now | Further orders can be expected around Sun, May 11, 2025 Regular price
$88.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
