Dual Vee - Adaptor Bushings

Dual Vee -> Adaptor Bushings

There are 4 products in the sub-categories of Dual Vee - Adaptor Bushings. Browse the Dual Vee - Adaptor Bushings products table.

Category Details

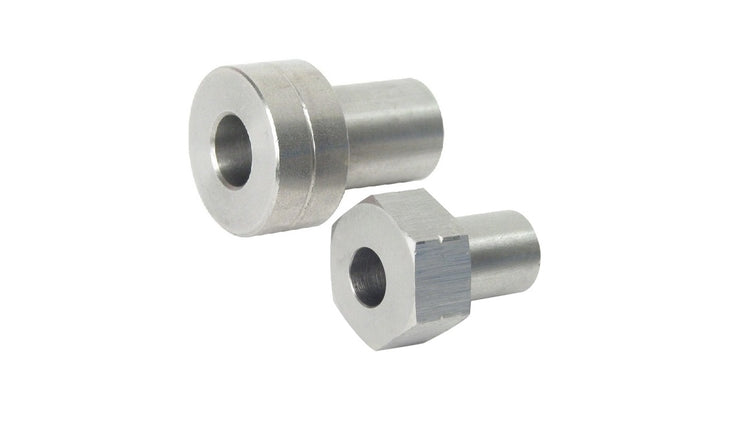

A selection of Adaptor Bushings Dual Vee. Vee grooved track roller bushings.

  • Bushings that are used with a DualVee linear guide system to mount a guide wheel onto a carriage.
  • Allows for the precise positioning and adjustment of the guide wheel against the linear guide track
  • Two types: concentric and eccentric, which work together to set the correct tension and alignment in the system.
  • Stationary bushings have a concentric hole
  • Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned
Dual Vee - Adaptor Bushings

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Dual Vee - Adaptor Bushings category on the MBA Minibearings main store.
Bushing Size Overall Length (L) Head Width (l) Shank Diameter (D1) Diameter / Hex (D or A) Inside Diameter (N or d) Indicative
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
2

Overall Length (L)
18.000
mm
+ 0.000 / - 0.070
(Equiv. 0.709 in.)
Head Width (l)
6.650
mm
+/- 0.03
(Equiv. 0.262 in.)
Shank Diameter (D1)
9.520
mm
+ 0.000 / - 0.030
Diameter / Hex (D or A)
14.000
mm
Inside Diameter (N or d)
6.350
mm
+ 0.050 / - 0.000
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Offset Value (s): 0.610 mm    Bush Type: Adjustable    Head Configuration: Hexagon
Part Number: DVAB2-ST-064-ADJ-303 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$22.23 AUD
$26.67 AUD $22.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Bushing Size Overall Length (L) Head Width (l) Shank Diameter (D1) Indicative
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
2

Overall Length (L)
18.000
mm
+ 0.000 / - 0.070
(Equiv. 0.709 in.)
Head Width (l)
6.650
mm
+/- 0.03
(Equiv. 0.262 in.)
Shank Diameter (D1)
9.520
mm
+ 0.000 / - 0.030
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Diameter / Hex (D or A): 14.000 mm    Inside Diameter (N or d): 6.350 mm + 0.050 / - 0.000   Offset Value (s): 0.610 mm    Bush Type: Adjustable    Head Configuration: Hexagon
Part Number: DVAB2-ST-064-ADJ-303 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$22.23 AUD
$26.67 AUD $22.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
2

Overall Length (L)
18.000
mm
+ 0.000 / - 0.070
(Equiv. 0.709 in.)
Head Width (l)
6.650
mm
+/- 0.03
(Equiv. 0.262 in.)
Shank Diameter (D1)
9.520
mm
+ 0.000 / - 0.030
Diameter / Hex (D or A)
14.200
mm
Inside Diameter (N or d)
6.350
mm
+ 0.050 / - 0.000
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Bush Type: Stationary    Head Configuration: Round
Part Number: DVAB2-ST-064-303 (Each)
2 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$10.77 AUD
$12.93 AUD $10.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
2

Overall Length (L)
18.000
mm
+ 0.000 / - 0.070
(Equiv. 0.709 in.)
Head Width (l)
6.650
mm
+/- 0.03
(Equiv. 0.262 in.)
Shank Diameter (D1)
9.520
mm
+ 0.000 / - 0.030
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Diameter / Hex (D or A): 14.200 mm    Inside Diameter (N or d): 6.350 mm + 0.050 / - 0.000   Bush Type: Stationary    Head Configuration: Round
Part Number: DVAB2-ST-064-303 (Each)
2 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$10.77 AUD
$12.93 AUD $10.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
4

Overall Length (L)
30.000
mm
+ 0.000 / - 0.100
(Equiv. 1.181 in.)
Head Width (l)
11.100
mm
+/- 0.03
(Equiv. 0.437 in.)
Shank Diameter (D1)
15.000
mm
+ 0.000 / - 0.030
Diameter / Hex (D or A)
22.000
mm
Inside Diameter (N or d)
10.10
mm
+ 0.050 / - 0.000
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Offset Value (s): 1.520 mm    Bush Type: Adjustable    Head Configuration: Hexagon
Part Number: DVAB4-ST-100-ADJ-303 (Each)
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$61.50 AUD
$73.80 AUD $61.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
4

Overall Length (L)
30.000
mm
+ 0.000 / - 0.100
(Equiv. 1.181 in.)
Head Width (l)
11.100
mm
+/- 0.03
(Equiv. 0.437 in.)
Shank Diameter (D1)
15.000
mm
+ 0.000 / - 0.030
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Diameter / Hex (D or A): 22.000 mm    Inside Diameter (N or d): 10.10 mm + 0.050 / - 0.000   Offset Value (s): 1.520 mm    Bush Type: Adjustable    Head Configuration: Hexagon
Part Number: DVAB4-ST-100-ADJ-303 (Each)
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$61.50 AUD
$73.80 AUD $61.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
4

Overall Length (L)
30.000
mm
+ 0.000 / - 0.100
(Equiv. 1.181 in.)
Head Width (l)
11.100
mm
+/- 0.03
(Equiv. 0.437 in.)
Shank Diameter (D1)
15.000
mm
+ 0.000 / - 0.030
Diameter / Hex (D or A)
22.400
mm
Inside Diameter (N or d)
10.10
mm
+ 0.050 / - 0.000
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Bush Type: Stationary    Head Configuration: Round
Part Number: DVAB4-ST-100-303 (Each)
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$32.59 AUD
$39.11 AUD $32.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Bushing Size
4

Overall Length (L)
30.000
mm
+ 0.000 / - 0.100
(Equiv. 1.181 in.)
Head Width (l)
11.100
mm
+/- 0.03
(Equiv. 0.437 in.)
Shank Diameter (D1)
15.000
mm
+ 0.000 / - 0.030
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Diameter / Hex (D or A): 22.400 mm    Inside Diameter (N or d): 10.10 mm + 0.050 / - 0.000   Bush Type: Stationary    Head Configuration: Round
Part Number: DVAB4-ST-100-303 (Each)
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$32.59 AUD
$39.11 AUD $32.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
