Couplings - Spiral 6 Beam

2 Products in this selection

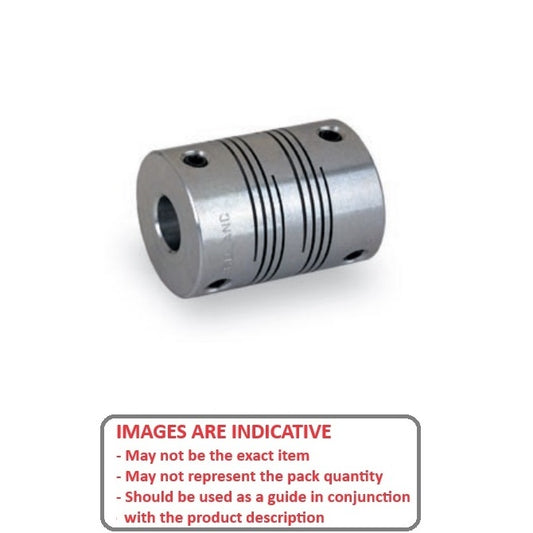

This is a combined category of products from Spiral 6 Beam Couplings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Bore (B) Bore (B) OD Finished Bore Max. Bore Length Indicative
1.500
mm 		2.000 Pilot Bore
mm 		12.70
mm 		6.35
mm 		12.70

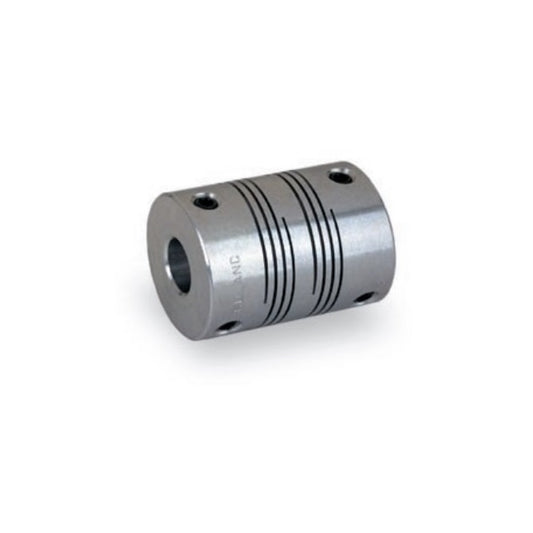

mm 		1039003 | CP-015-020-13-013-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.5 mm x 2.000 Pilot Bore x 12.7 mm
Material: Aluminium    Max. Angular Offset: 3 Deg    Max Parallel Offset: 0.07 mm
Category: Couplings - Spiral 6 Beam - Aluminium Set Screw Type
Part Number: CP-015-020-13-013-H-B6-AL-G Spiral 6 Beam Couplings - 1.5 mm x 2.000 Pilot Bore x 12.7 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$45.00 AUD
$74.25 AUD $45.00 AUD
Each
Bore (B) Bore (B) OD Finished Bore Indicative
1.500
mm 		2.000 Pilot Bore
mm 		12.70
mm 		1039003 | CP-015-020-13-013-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.5 mm x 2.000 Pilot Bore x 12.7 mm
Material: Aluminium    Max. Bore: 6.35 mm    Length: 12.70 mm    Max. Angular Offset: 3 Deg    Max Parallel Offset: 0.07 mm
Category: Couplings - Spiral 6 Beam - Aluminium Set Screw Type
Part Number: CP-015-020-13-013-H-B6-AL-G Spiral 6 Beam Couplings - 1.5 mm x 2.000 Pilot Bore x 12.7 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$45.00 AUD
$74.25 AUD $45.00 AUD
Each
1.600
mm 		2.900 Pilot Bore
mm 		9.52
mm 		4.76
mm 		19.56
mm 		1039842 | CP-016-029-10-020-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.6 mm x 2.900 Pilot Bore x 9.52 mm
Material: Aluminium    Max. Angular Offset: 5 Deg    Max Parallel Offset: 0.12 mm
Category: Couplings - Spiral 6 Beam - Aluminium Set Screw Type
Part Number: CP-016-029-10-020-H-B6-AL-G Spiral 6 Beam Couplings - 1.6 mm x 2.900 Pilot Bore x 9.52 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$35.00 AUD
$57.75 AUD $35.00 AUD
Each
1.600
mm 		2.900 Pilot Bore
mm 		9.52
mm 		1039842 | CP-016-029-10-020-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.6 mm x 2.900 Pilot Bore x 9.52 mm
Material: Aluminium    Max. Bore: 4.76 mm    Length: 19.56 mm    Max. Angular Offset: 5 Deg    Max Parallel Offset: 0.12 mm
Category: Couplings - Spiral 6 Beam - Aluminium Set Screw Type
Part Number: CP-016-029-10-020-H-B6-AL-G Spiral 6 Beam Couplings - 1.6 mm x 2.900 Pilot Bore x 9.52 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$35.00 AUD
$57.75 AUD $35.00 AUD
Each
