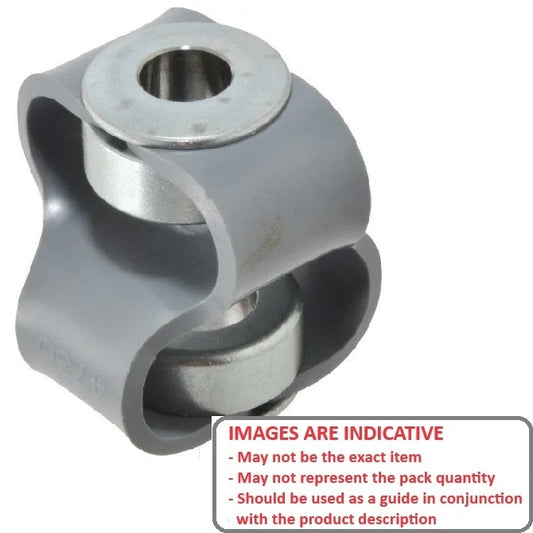

Couplings - K Type

1 Item Available
  • Up to 3600 RPM - Minus 20 to Plus 60o C. 0.34 to 18 Nm.
  • Strong, flexible polyurethane or Hyrtel(R) is cut and tear resistant.
  • Up to 3600 RPM.
  • Urethane: Minus 20 to Plus 60o C / Hyrtel(R) : Minus 40 to Plus 100o C.
  • Precision swaged mechanically crimped hubs.
  • Annealed steel hubs.
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Hub Height (H) Max Axial Displacement Indicative
6.350
mm 		6.350
mm 		43.0
mm 		50.8
mm 		8.50
mm 		7.5
mm 		1072173 | CP-064-064-47-048-K --- K Type Couplings - 6.35 mm x 6.35 mm x 43 mm
Material: Steel and Rubber    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K K Type Couplings - 6.35 mm x 6.35 mm x 43 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Sun, Mar 02, 2025
$114.77 AUD
$114.77 AUD
Each
View the product page first if you are unsure ->
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Indicative
6.350
mm 		6.350
mm 		43.0
mm 		50.8
mm 		1072173 | CP-064-064-47-048-K --- K Type Couplings - 6.35 mm x 6.35 mm x 43 mm
Material: Steel and Rubber    Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K K Type Couplings - 6.35 mm x 6.35 mm x 43 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Sun, Mar 02, 2025
$114.77 AUD
$114.77 AUD
Each
View the product page first if you are unsure.
