Couplings - Helical - Short Series

2 Products in this selection
This is a combined category of Short Series Helical Couplings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Couplings - Helical - Short Series.
Bore (B1) Bore (B2) OD (D) / Clearance Dia (OH) Length (L) Working Torque Maximum Speed Indicative
1.450
mm
+ 0.010 / - 0.000 		Pilot Bore 1.450

+ 0.010 / - 0.000 		8.0
mm
+/- 0.13 		11.7
mm
+/- 0.13 		0.30
N.m 		40000
RPM 		1038958 | CP-015-015-08-012-H-RFS-AL --- Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
Material: Aluminium 7075-T6    Hub Length (E): 3.20 mm    Torsional Stiffness: 8.7 Nm/rad

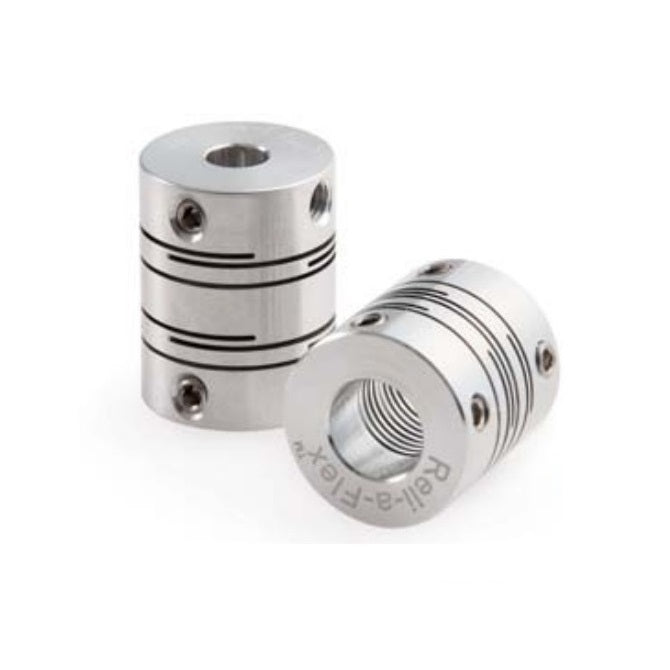

Category: Couplings - Helical - Short Series - Set Screw Type
Part Number: CP-015-015-08-012-H-RFS-AL Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Bore (B1) Bore (B2) OD (D) / Clearance Dia (OH) Length (L) Indicative
1.450
mm
+ 0.010 / - 0.000 		Pilot Bore 1.450

+ 0.010 / - 0.000 		8.0
mm
+/- 0.13 		11.7
mm
+/- 0.13 		1038958 | CP-015-015-08-012-H-RFS-AL --- Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
Material: Aluminium 7075-T6    Working Torque: 0.30 N.m    Maximum Speed: 40000 RPM    Hub Length (E): 3.20 mm    Torsional Stiffness: 8.7 Nm/rad
Category: Couplings - Helical - Short Series - Set Screw Type
Part Number: CP-015-015-08-012-H-RFS-AL Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
1.950 / 1.950
mm
+ 0.020 / - 0.000 		Pilot Bore - Max 3mm

+ 0.020 / - 0.000 		13 / 14.5
mm
+/- 0.13 		16.8
mm
+/- 0.13 		0.55
N.m 		12000

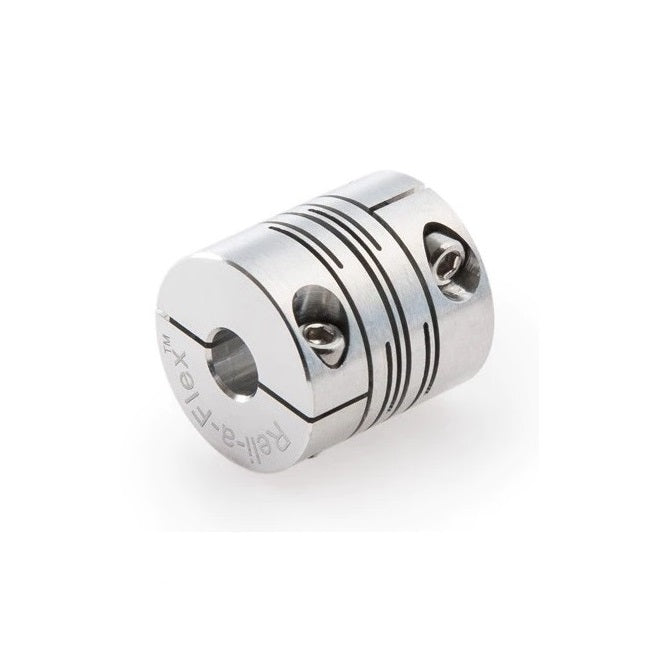

RPM 		1040214 | CP-020-020-13-017-H-RFC-AL --- Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
Material: Aluminium 7075-T6    Hub Length (E): 5.00 mm    Torsional Stiffness: 45.0 Nm/rad
Category: Couplings - Helical - Short Series - Clamp Type
Part Number: CP-020-020-13-017-H-RFC-AL Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
1.950 / 1.950
mm
+ 0.020 / - 0.000 		Pilot Bore - Max 3mm

+ 0.020 / - 0.000 		13 / 14.5
mm
+/- 0.13 		16.8
mm
+/- 0.13 		1040214 | CP-020-020-13-017-H-RFC-AL --- Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
Material: Aluminium 7075-T6    Working Torque: 0.55 N.m    Maximum Speed: 12000 RPM    Hub Length (E): 5.00 mm    Torsional Stiffness: 45.0 Nm/rad
Category: Couplings - Helical - Short Series - Clamp Type
Part Number: CP-020-020-13-017-H-RFC-AL Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
