Collection: Collars - Shaft - Clamp Type - Two Piece - Steel

Collars (With Images)

Shaft

Clamp Type

Two Piece

15 Products in this selection

This is the main category in this series

Additional resources:
Shaft Collars PDF Catalogue

A more comprehensive listing may be found on the MBA Minibearings main store at Collars - Shaft - Clamp Type - Two Piece - Steel.

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Screw Size
Shaft Size (d) 6.350 mm	Outside Diameter (D) 17.50 mm	Overall Width (S) 7.9 mm	Screw Size 4-40 UNC
Material: Steel
Part Number: COL-00635-017-08-2C-CS Shaft Collars - 6.35x17.5x7.9 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per Each

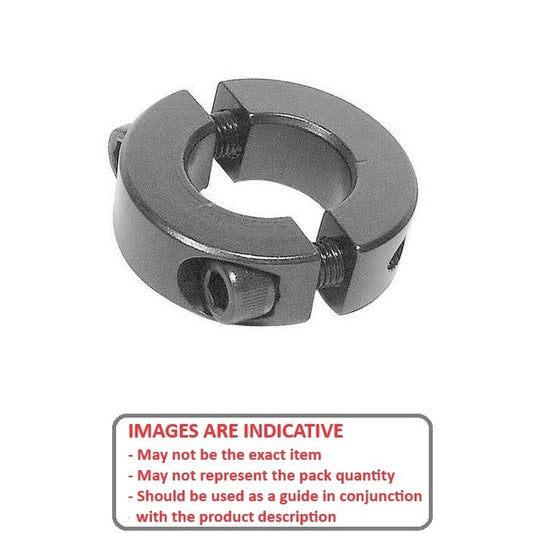

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Indicative Image
Shaft Size (d) 6.350 mm	Outside Diameter (D) 17.50 mm	Overall Width (S) 7.9 mm
Material: Steel Screw Size: 4-40 UNC
Part Number: COL-00635-017-08-2C-CS Shaft Collars - 6.35x17.5x7.9 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per Each View the product page first if you are unsure.
COL-00635-017-08-2C-CS --- Shaft Collars - 6.35x17.5x7.9 mm - Steel Sale COL-00635-017-08-2C-CS --- Shaft Collars - 6.35x17.5x7.9 mm - Steel Regular price $15.41 AUD Regular price ~~$18.49 AUD~~ Sale price $15.41 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 7.938 mm	Outside Diameter (D) 17.50 mm	Overall Width (S) 7.9 mm	Screw Size 4-40 UNC
Material: Steel

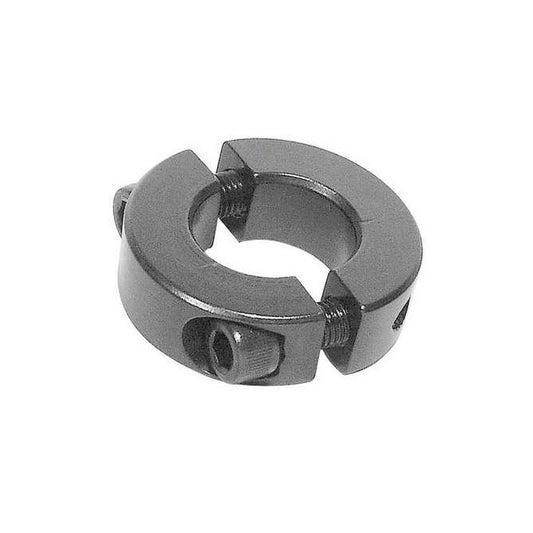

Part Number: COL-00794-017-08-2C-CS Shaft Collars - 7.938x17.5x7.9 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Each
Shaft Size (d) 7.938 mm	Outside Diameter (D) 17.50 mm	Overall Width (S) 7.9 mm
Material: Steel Screw Size: 4-40 UNC
Part Number: COL-00794-017-08-2C-CS Shaft Collars - 7.938x17.5x7.9 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Each View the product page first if you are unsure.
COL-00794-017-08-2C-CS --- Shaft Collars - 7.938x17.5x7.9 mm - Steel Sale COL-00794-017-08-2C-CS --- Shaft Collars - 7.938x17.5x7.9 mm - Steel Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per 2 Available Now Sale
Shaft Size (d) 12.700 mm	Outside Diameter (D) 28.60 mm	Overall Width (S) 10.3 mm	Screw Size 8-32 UNC (4.17mm)
Material: Steel
Part Number: COL-01270-029-10-2C-CS Shaft Collars - 12.7x28.6x10.3 mm - Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each
Shaft Size (d) 12.700 mm	Outside Diameter (D) 28.60 mm	Overall Width (S) 10.3 mm
Material: Steel Screw Size: 8-32 UNC (4.17mm)
Part Number: COL-01270-029-10-2C-CS Shaft Collars - 12.7x28.6x10.3 mm - Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each View the product page first if you are unsure.
COL-01270-029-10-2C-CS --- Shaft Collars - 12.7x28.6x10.3 mm - Steel Sale COL-01270-029-10-2C-CS --- Shaft Collars - 12.7x28.6x10.3 mm - Steel Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per 4 Available Now Sale
Shaft Size (d) 19.050 mm	Outside Diameter (D) 38.10 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-01905-038-13-2C-CBO Shaft Collars - 19.05x38.1x12.7 mm - Steel, Black Oxide Coated 71 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each
Shaft Size (d) 19.050 mm	Outside Diameter (D) 38.10 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-01905-038-13-2C-CBO Shaft Collars - 19.05x38.1x12.7 mm - Steel, Black Oxide Coated 71 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each View the product page first if you are unsure.
COL-01905-038-13-2C-CBO --- Shaft Collars - 19.05x38.1x12.7 mm - Steel, Black Oxide Coated Sale COL-01905-038-13-2C-CBO --- Shaft Collars - 19.05x38.1x12.7 mm - Steel, Black Oxide Coated Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per 71 Available Now Sale
Shaft Size (d) 20.000 mm	Outside Diameter (D) 40.00 mm	Overall Width (S) 15.0 mm	Screw Size M6X16
Material: Steel
Part Number: COL-02000-040-15-2C-CS Shaft Collars - 20x40x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Each
Shaft Size (d) 20.000 mm	Outside Diameter (D) 40.00 mm	Overall Width (S) 15.0 mm
Material: Steel Screw Size: M6X16
Part Number: COL-02000-040-15-2C-CS Shaft Collars - 20x40x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Each View the product page first if you are unsure.
COL-02000-040-15-2C-CS --- Shaft Collars - 20x40x15 mm - Steel COL-02000-040-15-2C-CS --- Shaft Collars - 20x40x15 mm - Steel Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per 1 Available Now
Shaft Size (d) 23.813 mm	Outside Diameter (D) 44.50 mm	Overall Width (S) 12.7 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Steel
Part Number: COL-02381-044-13-2C-CS Shaft Collars - 23.813x44.5x12.7 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $105.41 AUD Regular price Sale price $105.41 AUD Unit price per Each
Shaft Size (d) 23.813 mm	Outside Diameter (D) 44.50 mm	Overall Width (S) 12.7 mm
Material: Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-02381-044-13-2C-CS Shaft Collars - 23.813x44.5x12.7 mm - Steel 2 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $105.41 AUD Regular price Sale price $105.41 AUD Unit price per Each View the product page first if you are unsure.
COL-02381-044-13-2C-CS --- Shaft Collars - 23.813x44.5x12.7 mm - Steel COL-02381-044-13-2C-CS --- Shaft Collars - 23.813x44.5x12.7 mm - Steel Regular price $105.41 AUD Regular price Sale price $105.41 AUD Unit price per 2 Available Now
Shaft Size (d) 28.575 mm	Outside Diameter (D) 47.63 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-02858-048-13-2C-CBO Shaft Collars - 28.575x47.63x12.7 mm - Steel, Black Oxide Coated 8 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each
Shaft Size (d) 28.575 mm	Outside Diameter (D) 47.63 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-02858-048-13-2C-CBO Shaft Collars - 28.575x47.63x12.7 mm - Steel, Black Oxide Coated 8 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
COL-02858-048-13-2C-CBO --- Shaft Collars - 28.575x47.63x12.7 mm - Steel, Black Oxide Coated Sale COL-02858-048-13-2C-CBO --- Shaft Collars - 28.575x47.63x12.7 mm - Steel, Black Oxide Coated Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per 8 Available Now Sale
Shaft Size (d) 30.000 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 15.0 mm	Screw Size M6X18
Material: Steel
Part Number: COL-03000-054-15-2C-CS Shaft Collars - 30x54x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $58.68 AUD Regular price Sale price $58.68 AUD Unit price per Each
Shaft Size (d) 30.000 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 15.0 mm
Material: Steel Screw Size: M6X18
Part Number: COL-03000-054-15-2C-CS Shaft Collars - 30x54x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $58.68 AUD Regular price Sale price $58.68 AUD Unit price per Each View the product page first if you are unsure.
COL-03000-054-15-2C-CS --- Shaft Collars - 30x54x15 mm - Steel COL-03000-054-15-2C-CS --- Shaft Collars - 30x54x15 mm - Steel Regular price $58.68 AUD Regular price Sale price $58.68 AUD Unit price per 1 Available Now
Shaft Size (d) 30.163 mm	Outside Diameter (D) 52.40 mm	Overall Width (S) 12.7 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Steel
Part Number: COL-03016-052-13-2C-CS Shaft Collars - 30.163x52.4x12.7 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each
Shaft Size (d) 30.163 mm	Outside Diameter (D) 52.40 mm	Overall Width (S) 12.7 mm
Material: Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-03016-052-13-2C-CS Shaft Collars - 30.163x52.4x12.7 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each View the product page first if you are unsure.
COL-03016-052-13-2C-CS --- Shaft Collars - 30.163x52.4x12.7 mm - Steel COL-03016-052-13-2C-CS --- Shaft Collars - 30.163x52.4x12.7 mm - Steel Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per 1 Available Now
Shaft Size (d) 31.750 mm	Outside Diameter (D) 52.39 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-03175-052-13-2C-CBO Shaft Collars - 31.75x52.39x12.7 mm - Steel, Black Oxide Coated 9 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each
Shaft Size (d) 31.750 mm	Outside Diameter (D) 52.39 mm	Overall Width (S) 12.7 mm
Material: Steel, Black Oxide Coated
Part Number: COL-03175-052-13-2C-CBO Shaft Collars - 31.75x52.39x12.7 mm - Steel, Black Oxide Coated 9 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each View the product page first if you are unsure.
COL-03175-052-13-2C-CBO --- Shaft Collars - 31.75x52.39x12.7 mm - Steel, Black Oxide Coated Sale COL-03175-052-13-2C-CBO --- Shaft Collars - 31.75x52.39x12.7 mm - Steel, Black Oxide Coated Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per 9 Available Now Sale
Shaft Size (d) 33.338 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 14.3 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Steel
Part Number: COL-03334-054-14-2C-CS Shaft Collars - 33.338x54x14.3 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $45.14 AUD Regular price Sale price $45.14 AUD Unit price per Each
Shaft Size (d) 33.338 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 14.3 mm
Material: Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-03334-054-14-2C-CS Shaft Collars - 33.338x54x14.3 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $45.14 AUD Regular price Sale price $45.14 AUD Unit price per Each View the product page first if you are unsure.
COL-03334-054-14-2C-CS --- Shaft Collars - 33.338x54x14.3 mm - Steel COL-03334-054-14-2C-CS --- Shaft Collars - 33.338x54x14.3 mm - Steel Regular price $45.14 AUD Regular price Sale price $45.14 AUD Unit price per 1 Available Now
Shaft Size (d) 40.000 mm	Outside Diameter (D) 60.00 mm	Overall Width (S) 15.0 mm	Screw Size M6X18
Material: Steel
Part Number: COL-04000-060-15-2C-CS Shaft Collars - 40x60x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each
Shaft Size (d) 40.000 mm	Outside Diameter (D) 60.00 mm	Overall Width (S) 15.0 mm
Material: Steel Screw Size: M6X18
Part Number: COL-04000-060-15-2C-CS Shaft Collars - 40x60x15 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each View the product page first if you are unsure.
COL-04000-060-15-2C-CS --- Shaft Collars - 40x60x15 mm - Steel COL-04000-060-15-2C-CS --- Shaft Collars - 40x60x15 mm - Steel Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per 1 Available Now
Shaft Size (d) 42.863 mm	Outside Diameter (D) 69.90 mm	Overall Width (S) 17.5 mm	Screw Size 5/16-24 UNF
Material: Steel
Part Number: COL-04286-070-18-2C-CS Shaft Collars - 42.863x69.9x17.5 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per Each
Shaft Size (d) 42.863 mm	Outside Diameter (D) 69.90 mm	Overall Width (S) 17.5 mm
Material: Steel Screw Size: 5/16-24 UNF
Part Number: COL-04286-070-18-2C-CS Shaft Collars - 42.863x69.9x17.5 mm - Steel 1 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per Each View the product page first if you are unsure.
COL-04286-070-18-2C-CS --- Shaft Collars - 42.863x69.9x17.5 mm - Steel COL-04286-070-18-2C-CS --- Shaft Collars - 42.863x69.9x17.5 mm - Steel Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per 1 Available Now
Shaft Size (d) 60.325 mm	Outside Diameter (D) 88.90 mm	Overall Width (S) 19.1 mm
Material: Steel, Black Oxide Coated
Part Number: COL-06033-089-19-2C-CBO Shaft Collars - 60.325x88.9x19.1 mm - Steel, Black Oxide Coated 1 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $43.59 AUD Regular price ~~$52.31 AUD~~ Sale price $43.59 AUD Unit price per Each
Shaft Size (d) 60.325 mm	Outside Diameter (D) 88.90 mm	Overall Width (S) 19.1 mm
Material: Steel, Black Oxide Coated
Part Number: COL-06033-089-19-2C-CBO Shaft Collars - 60.325x88.9x19.1 mm - Steel, Black Oxide Coated 1 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $43.59 AUD Regular price ~~$52.31 AUD~~ Sale price $43.59 AUD Unit price per Each View the product page first if you are unsure.
COL-06033-089-19-2C-CBO --- Shaft Collars - 60.325x88.9x19.1 mm - Steel, Black Oxide Coated Sale COL-06033-089-19-2C-CBO --- Shaft Collars - 60.325x88.9x19.1 mm - Steel, Black Oxide Coated Regular price $43.59 AUD Regular price ~~$52.31 AUD~~ Sale price $43.59 AUD Unit price per 1 Available Now Sale
Shaft Size (d) 76.200 mm	Outside Diameter (D) 107.95 mm	Overall Width (S) 22.2 mm
Material: Steel, Black Oxide Coated
Part Number: COL-07620-108-22-2C-CBO Shaft Collars - 76.2x107.95x22.2 mm - Steel, Black Oxide Coated 2 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $66.14 AUD Regular price ~~$79.36 AUD~~ Sale price $66.14 AUD Unit price per Each
Shaft Size (d) 76.200 mm	Outside Diameter (D) 107.95 mm	Overall Width (S) 22.2 mm
Material: Steel, Black Oxide Coated
Part Number: COL-07620-108-22-2C-CBO Shaft Collars - 76.2x107.95x22.2 mm - Steel, Black Oxide Coated 2 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $66.14 AUD Regular price ~~$79.36 AUD~~ Sale price $66.14 AUD Unit price per Each View the product page first if you are unsure.
COL-07620-108-22-2C-CBO --- Shaft Collars - 76.2x107.95x22.2 mm - Steel, Black Oxide Coated Sale COL-07620-108-22-2C-CBO --- Shaft Collars - 76.2x107.95x22.2 mm - Steel, Black Oxide Coated Regular price $66.14 AUD Regular price ~~$79.36 AUD~~ Sale price $66.14 AUD Unit price per 2 Available Now Sale
