Bushings - Spherical - Steel - With Oil Hole

Bushings -> Spherical -> Steel -> With Oil Hole

There are 2 products in the sub-categories of Bushings - Spherical - Steel - With Oil Hole. Browse the Bushings - Spherical - Steel - With Oil Hole products table.

Category Details

A selection of With Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.

  • Self-aligning bearing that has spherical inner and outer rings, allowing it to handle both large radial and axial loads simultaneously.
  • Used in applications with slow swinging movements or where misalignment must be compensated for, such as in control linkages, suspension components, and industrial machinery.
  • Designed to reduce vibration and noise by allowing articulating motion in a fixed directional load.
  • Compensates for axial loads and misalignment.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bushings - Spherical - Steel - With Oil Hole category on the MBA Minibearings main store.
Bore (d1) OD (d2) Width (B) Outer Width (C) Dynamic Load Capacity Static Load Capacity Indicative

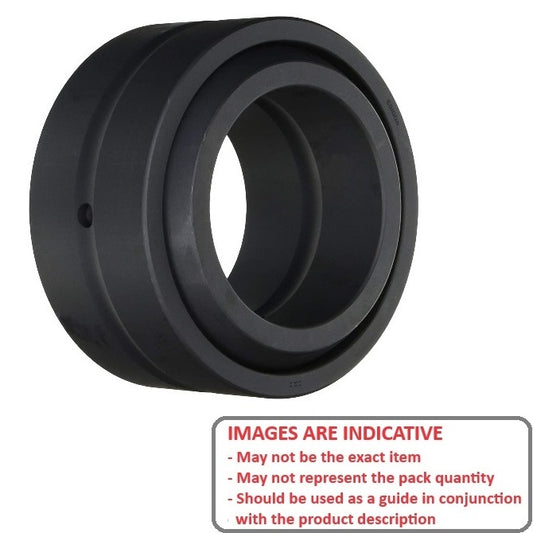

Spherical Bushings - 15x26x12 mm - Steel Bushing
Bore (d1)
15.000
mm

(Equiv. 0.591 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Dynamic Load Capacity
1980
kgf
Static Load Capacity
11900
kgf
Spherical Bushings - 15x26x12 mm - Steel
Material: Steel    Features: No Wiper Seals / With Oil Hole
Part Number: GE-01500-02600-ST-OH (Each)
2 Available Now | Further orders can be expected around Tue, Jan 06, 2026
$21.86 AUD
$26.24 AUD $21.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Bore (d1) OD (d2) Width (B) Outer Width (C) Indicative
Spherical Bushings - 15x26x12 mm - Steel Bushing
Bore (d1)
15.000
mm

(Equiv. 0.591 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Spherical Bushings - 15x26x12 mm - Steel
Material: Steel    Dynamic Load Capacity: 1980 kgf    Static Load Capacity: 11900 kgf    Features: No Wiper Seals / With Oil Hole
Part Number: GE-01500-02600-ST-OH (Each)
2 Available Now | Further orders can be expected around Tue, Jan 06, 2026
$21.86 AUD
$26.24 AUD $21.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spherical Bushings - 15.88x26.99x13.89 mm - Steel Bushing
Bore (d1)
15.880
mm

(Equiv. 0.625 in.)
OD (d2)
26.990
mm

(Equiv. 1.063 in.)
Width (B)
13.890
mm

(Equiv. 0.547 in.)
Outer Width (C)
11.91
mm
Dynamic Load Capacity
2740
kgf
Static Load Capacity
16400
kgf
Spherical Bushings - 15.88x26.99x13.89 mm - Steel
Material: Steel    Features: No Wiper Seals / With Oil Hole
Part Number: GE-01588-02699-ST-OH (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 06, 2026
$33.77 AUD
$33.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spherical Bushings - 15.88x26.99x13.89 mm - Steel Bushing
Bore (d1)
15.880
mm

(Equiv. 0.625 in.)
OD (d2)
26.990
mm

(Equiv. 1.063 in.)
Width (B)
13.890
mm

(Equiv. 0.547 in.)
Outer Width (C)
11.91
mm
Spherical Bushings - 15.88x26.99x13.89 mm - Steel
Material: Steel    Dynamic Load Capacity: 2740 kgf    Static Load Capacity: 16400 kgf    Features: No Wiper Seals / With Oil Hole
Part Number: GE-01588-02699-ST-OH (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 06, 2026
$33.77 AUD
$33.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
