Bushings - Spherical - Plastic

Bushings -> Spherical -> Plastic

There are 2 products in the sub-categories of Bushings - Spherical - Plastic. Browse the Bushings - Spherical - Plastic products table.

Category Details

A selection of Plastic Spherical Bushings. Plastic spherical plain bearings. Also known as ball bushings.

  • Self-aligning bearing that has spherical inner and outer rings, allowing it to handle both large radial and axial loads simultaneously.
  • Used in applications with slow swinging movements or where misalignment must be compensated for, such as in control linkages, suspension components, and industrial machinery.
  • Designed to reduce vibration and noise by allowing articulating motion in a fixed directional load.
  • Ball Material W300. Housing Iglidur G.
  • Maintenance Free. Self lubricating.
  • Compensates for axial loads and misalignment.
  • Corrosion resistant.
  • High vibration dampening capacity.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bushings - Spherical - Plastic category on the MBA Minibearings main store.
Bore (d1) OD (d2) Width (B) Outer Width (C) Max Pivot angle Max Torque Indicative
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic Bushing
Bore (d1)
4.830
mm

(Equiv. 0.19 in.)
OD (d2)
14.290
mm

(Equiv. 0.563 in.)
Width (B)
7.930
mm

(Equiv. 0.312 in.)
Outer Width (C)
5.54
mm
Max Pivot angle
34
Deg.
Max Torque
5.0
Nm
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1000 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00483-01429-W300 (Each)
20 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$18.14 AUD
$18.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Bore (d1) OD (d2) Width (B) Outer Width (C) Indicative
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic Bushing
Bore (d1)
4.830
mm

(Equiv. 0.19 in.)
OD (d2)
14.290
mm

(Equiv. 0.563 in.)
Width (B)
7.930
mm

(Equiv. 0.312 in.)
Outer Width (C)
5.54
mm
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic
Material: Plastic    Max Pivot angle: 34 Deg.    Max Torque: 5.0 Nm    Max Static Comp. str. (Radial): 1000 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00483-01429-W300 (Each)
20 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$18.14 AUD
$18.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. Backorder if more than 20.

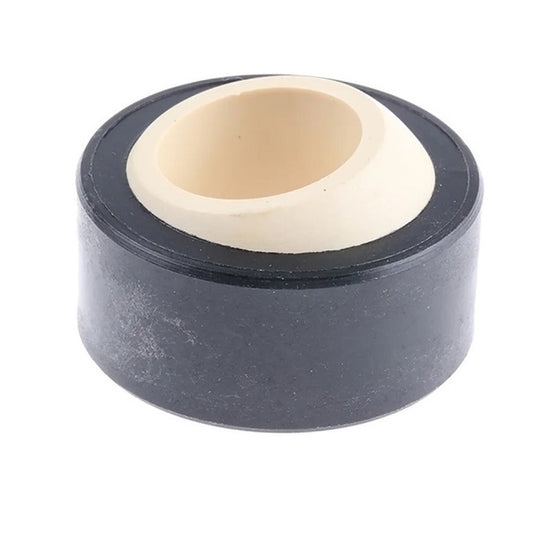

Spherical Bushings - 8x16x8 mm - Plastic Bushing
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
5.00
mm
Max Pivot angle
24
Deg.
Max Torque
7.0
Nm
Spherical Bushings - 8x16x8 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1350 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00800-01600-W300 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 09, 2026
$147.14 AUD
$176.56 AUD $147.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spherical Bushings - 8x16x8 mm - Plastic Bushing
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
5.00
mm
Spherical Bushings - 8x16x8 mm - Plastic
Material: Plastic    Max Pivot angle: 24 Deg.    Max Torque: 7.0 Nm    Max Static Comp. str. (Radial): 1350 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00800-01600-W300 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Mon, Feb 09, 2026
$147.14 AUD
$176.56 AUD $147.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
