Bushings - Drill - Plain

10 Products in this selection
This is a combined category of Plain Drill Bushings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Bushings - Drill - Plain.
Outside Diameter (OD) Drill Size Length Indicative
12.700
mm
+ 0.003 / + 0.0127 		4.763
mm
+ 0.036 / + 0.043 		12.700
mm 		1101986 | BP0048-0127-0127-DP --- Drill Bushings - 12.7x4.763x12.7 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0048-0127-0127-DP Drill Bushings - 12.7x4.763x12.7 mm - Carbon Steel - Hardened
7 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$9.86 AUD
$11.84 AUD $9.86 AUD
Each
Outside Diameter (OD) Drill Size Length Indicative
12.700
mm
+ 0.003 / + 0.0127 		4.763
mm
+ 0.036 / + 0.043 		12.700
mm 		1101986 | BP0048-0127-0127-DP --- Drill Bushings - 12.7x4.763x12.7 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0048-0127-0127-DP Drill Bushings - 12.7x4.763x12.7 mm - Carbon Steel - Hardened
7 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$9.86 AUD
$11.84 AUD $9.86 AUD
Each
View the product page first if you are unsure.
12.700
mm
+ 0.003 / + 0.0127 		5.556
mm
+ 0.036 / + 0.043 		19.050
mm 		1102015 | BP0055-0127-0191-DP --- Drill Bushings - 12.7x5.556x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0055-0127-0191-DP Drill Bushings - 12.7x5.556x19.05 mm - Carbon Steel - Hardened
20 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$15.77 AUD
$15.77 AUD
Each
12.700
mm
+ 0.003 / + 0.0127 		5.556
mm
+ 0.036 / + 0.043 		19.050
mm 		1102015 | BP0055-0127-0191-DP --- Drill Bushings - 12.7x5.556x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0055-0127-0191-DP Drill Bushings - 12.7x5.556x19.05 mm - Carbon Steel - Hardened
20 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$15.77 AUD
$15.77 AUD
Each
View the product page first if you are unsure.
12.700
mm
+ 0.003 / + 0.013 		7.938
mm
+ 0.036 / + 0.043 		19.050

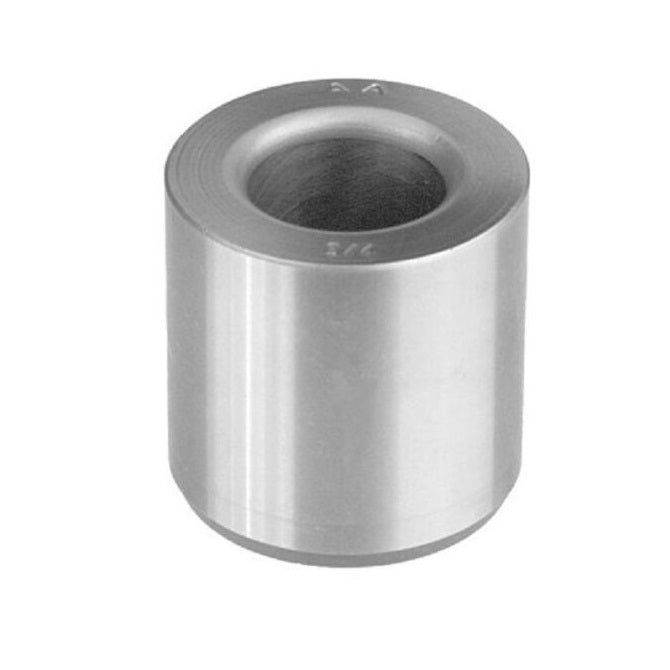

mm 		1102200 | BP0079-0127-0191-DL --- Drill Bushings - 12.7x7.938x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0079-0127-0191-DL Drill Bushings - 12.7x7.938x19.05 mm - Carbon Steel - Hardened
2 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$17.41 AUD
$20.89 AUD $17.41 AUD
Each
12.700
mm
+ 0.003 / + 0.013 		7.938
mm
+ 0.036 / + 0.043 		19.050
mm 		1102200 | BP0079-0127-0191-DL --- Drill Bushings - 12.7x7.938x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0079-0127-0191-DL Drill Bushings - 12.7x7.938x19.05 mm - Carbon Steel - Hardened
2 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$17.41 AUD
$20.89 AUD $17.41 AUD
Each
View the product page first if you are unsure.
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		15.875
mm 		1111246 | BP0095-0159-0159-DP --- Drill Bushings - 15.875x9.525x15.875 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0159-DP Drill Bushings - 15.875x9.525x15.875 mm - Carbon Steel - Hardened
4 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$18.59 AUD
$18.59 AUD
Each
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		15.875
mm 		1111246 | BP0095-0159-0159-DP --- Drill Bushings - 15.875x9.525x15.875 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0159-DP Drill Bushings - 15.875x9.525x15.875 mm - Carbon Steel - Hardened
4 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$18.59 AUD
$18.59 AUD
Each
View the product page first if you are unsure.
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		19.050
mm 		1111247 | BP0095-0159-0191-DP --- Drill Bushings - 15.875x9.525x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0191-DP Drill Bushings - 15.875x9.525x19.05 mm - Carbon Steel - Hardened
16 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$20.68 AUD
$20.68 AUD
Each
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		19.050
mm 		1111247 | BP0095-0159-0191-DP --- Drill Bushings - 15.875x9.525x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0191-DP Drill Bushings - 15.875x9.525x19.05 mm - Carbon Steel - Hardened
16 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$20.68 AUD
$20.68 AUD
Each
View the product page first if you are unsure.
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		25.400
mm 		1111253 | BP0095-0159-0254-DP --- Drill Bushings - 15.875x9.525x25.4 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0254-DP Drill Bushings - 15.875x9.525x25.4 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$18.05 AUD
$18.05 AUD
Each
15.875
mm
+ 0.003 / + 0.0127 		9.525
mm
+ 0.036 / + 0.043 		25.400
mm 		1111253 | BP0095-0159-0254-DP --- Drill Bushings - 15.875x9.525x25.4 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0095-0159-0254-DP Drill Bushings - 15.875x9.525x25.4 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$18.05 AUD
$18.05 AUD
Each
View the product page first if you are unsure.
18
mm 		12.000
mm 		16.000
mm 		1118497 | BP0120-0180-0160-DP --- Drill Bushings - 18x12x16 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0120-0180-0160-DP Drill Bushings - 18x12x16 mm - Carbon Steel - Hardened
3 Available Now | Further orders can be expected around Tue, May 13, 2025
$15.68 AUD
$15.68 AUD
Each
18
mm 		12.000
mm 		16.000
mm 		1118497 | BP0120-0180-0160-DP --- Drill Bushings - 18x12x16 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Press Fit
Part Number: BP0120-0180-0160-DP Drill Bushings - 18x12x16 mm - Carbon Steel - Hardened
3 Available Now | Further orders can be expected around Tue, May 13, 2025
$15.68 AUD
$15.68 AUD
Each
View the product page first if you are unsure.
19.050
mm
+ 0.003 / + 0.013 		12.700
mm
+ 0.038 / + 0.046 		12.700
mm 		1120760 | BP0127-0191-0127-DL --- Drill Bushings - 19.05x12.7x12.7 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0127-0191-0127-DL Drill Bushings - 19.05x12.7x12.7 mm - Carbon Steel - Hardened
2 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$20.95 AUD
$20.95 AUD
Each
19.050
mm
+ 0.003 / + 0.013 		12.700
mm
+ 0.038 / + 0.046 		12.700
mm 		1120760 | BP0127-0191-0127-DL --- Drill Bushings - 19.05x12.7x12.7 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0127-0191-0127-DL Drill Bushings - 19.05x12.7x12.7 mm - Carbon Steel - Hardened
2 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$20.95 AUD
$20.95 AUD
Each
View the product page first if you are unsure.
44.445
mm
+ 0.003 / + 0.015 		34.925
mm
+ 0.048 / + 0.058 		19.050
mm 		1157178 | BP0349-0444-0191-DL --- Drill Bushings - 44.445x34.925x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0349-0444-0191-DL Drill Bushings - 44.445x34.925x19.05 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$26.59 AUD
$26.59 AUD
Each
44.445
mm
+ 0.003 / + 0.015 		34.925
mm
+ 0.048 / + 0.058 		19.050
mm 		1157178 | BP0349-0444-0191-DL --- Drill Bushings - 44.445x34.925x19.05 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0349-0444-0191-DL Drill Bushings - 44.445x34.925x19.05 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$26.59 AUD
$26.59 AUD
Each
View the product page first if you are unsure.
44.445
mm
+ 0.003 / + 0.015 		34.925
mm
+ 0.048 / + 0.058 		25.400
mm 		1157179 | BP0349-0444-0254-DL --- Drill Bushings - 44.445x34.925x25.4 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0349-0444-0254-DL Drill Bushings - 44.445x34.925x25.4 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$39.50 AUD
$39.50 AUD
Each
44.445
mm
+ 0.003 / + 0.015 		34.925
mm
+ 0.048 / + 0.058 		25.400
mm 		1157179 | BP0349-0444-0254-DL --- Drill Bushings - 44.445x34.925x25.4 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened
Category: Bushings - Drill - Plain - Liner Type
Part Number: BP0349-0444-0254-DL Drill Bushings - 44.445x34.925x25.4 mm - Carbon Steel - Hardened
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$39.50 AUD
$39.50 AUD
Each
View the product page first if you are unsure.
