Bushes - Unflanged - Brass Graphite Plug

Bushes -> Unflanged -> Brass Graphite Plug

There are 2 products in the sub-categories of Bushes - Unflanged - Brass Graphite Plug. Browse the Bushes - Unflanged - Brass Graphite Plug products table.

Category Details

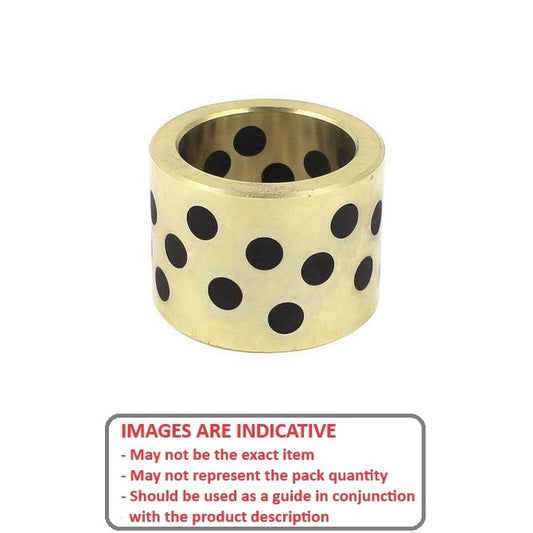

A selection of Brass Graphite Plug Unflanged Bushes. Used for dies, moulds and heavy machinery. Brass Alloy.

  • An expanded range may be available on special order. Please enquire.
  • High-Tensile Brass Alloy. Suitable for use under conditions of heavy load and low speed operation.
  • Solid Lubricant Plugs
  • Excellent wear resistance can be exerted at parts with reciprocating motion, frequent starting and stopping, etc., where oil film is difficult to form.
  • Class 7 precision ID
  • 29N per mm sq max allowable load with max allowable speed 0.5m per second unlubricated and 1m per second lubricated

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bushes - Unflanged - Brass Graphite Plug category on the MBA Minibearings main store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative

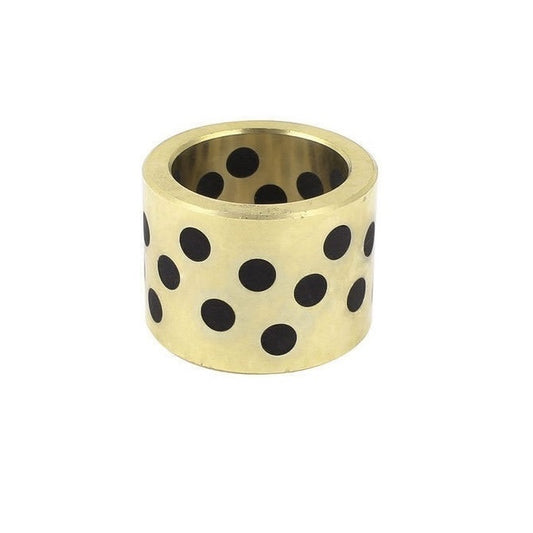

Unflanged Bushes - 15x18x30 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
15.000
mm
+ 0.016 / + 0.034
(Equiv. 0.591 in.)
Nominal Outside Diameter (D)
18.000
mm
m6
(Equiv. 0.709 in.)
Length (s)
30.000
mm
- 0.1 / - 0.3
(Equiv. 1.181 in.)
Unflanged Bushes - 15x18x30 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BP0150-0180-0300-BRP (Each)
4 Available Now | Further orders can be expected around Mon, Feb 02, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Unflanged Bushes - 15x18x30 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
15.000
mm
+ 0.016 / + 0.034
(Equiv. 0.591 in.)
Nominal Outside Diameter (D)
18.000
mm
m6
(Equiv. 0.709 in.)
Length (s)
30.000
mm
- 0.1 / - 0.3
(Equiv. 1.181 in.)
Unflanged Bushes - 15x18x30 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BP0150-0180-0300-BRP (Each)
4 Available Now | Further orders can be expected around Mon, Feb 02, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Unflanged Bushes - 30x38x70 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
30.000
mm
+ 0.020 / + 0.041
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
38.000
mm
m6
(Equiv. 1.496 in.)
Length (s)
70.000
mm
- 0.1 / - 0.3
(Equiv. 2.756 in.)
Unflanged Bushes - 30x38x70 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BP0300-0380-0700-BRP (Each)
6 Available Now | Further orders can be expected around Mon, Feb 02, 2026
$34.59 AUD
$34.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Unflanged Bushes - 30x38x70 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
30.000
mm
+ 0.020 / + 0.041
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
38.000
mm
m6
(Equiv. 1.496 in.)
Length (s)
70.000
mm
- 0.1 / - 0.3
(Equiv. 2.756 in.)
Unflanged Bushes - 30x38x70 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BP0300-0380-0700-BRP (Each)
6 Available Now | Further orders can be expected around Mon, Feb 02, 2026
$34.59 AUD
$34.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
