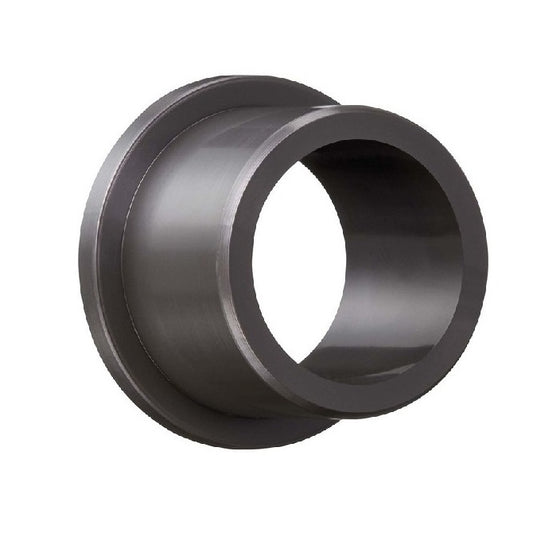

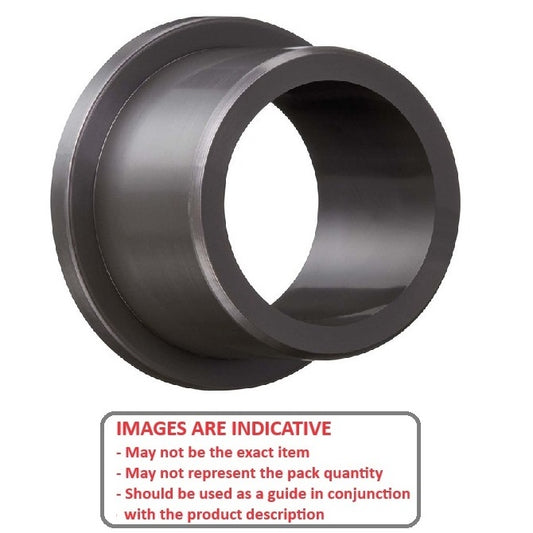

Collection: Bushes - Flanged - Plastic - Iglidur M250

Bushes (With Images)

Flanged

Plastic

8 Products in this selection

For impact resistance vibration dampening unclean environments.
Specific Gravity 1.14 g/cm3.
Operating Temp 170 C short term / 80 C long term.
Tensile Strength at 20 ^oC = 112 Mpa.
Hardness 79 Shore D (DIN53505).
Bushing bore tolerance is D11 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.

Additional resources:
Bushes PDF Catalogue
Plastic Unflanged Bushes

A more comprehensive listing may be found on the MBA Minibearings main store at Bushes - Flanged - Plastic - Iglidur M250.

Nom. ID (d)	Nom. OD (D)	Length (s)	Flange OD (D1)	Flange Thickness (s1)
2.500 mm + 0.020 / + 0.080	6.000 mm	3.000 mm + 0.000 / - 0.140	9.00 mm	1.50 mm
Material: Iglidur M250
Part Number: BF0025-0060-0030-PM (10 Pcs) Flanged Bushes - 2.5x6x3 mm - Iglidur M250 22 units (220 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per Per 10
Nom. ID (d)	Nom. OD (D)	Length (s)	Flange OD (D1)	Indicative Image
2.500 mm + 0.020 / + 0.080	6.000 mm	3.000 mm + 0.000 / - 0.140	9.00 mm
Material: Iglidur M250 Flange Thickness (s1): 1.50 mm
Part Number: BF0025-0060-0030-PM (10 Pcs) Flanged Bushes - 2.5x6x3 mm - Iglidur M250 22 units (220 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per Per 10
BF0025-0060-0030-PM (10 Pcs) --- Flanged Bushes - 2.5x6x3 mm - Iglidur M250 Sale BF0025-0060-0030-PM (10 Pcs) --- Flanged Bushes - 2.5x6x3 mm - Iglidur M250 Regular price $15.00 AUD Regular price ~~$28.50 AUD~~ Sale price $15.00 AUD Unit price per 22 Available Now Sale
3.000 mm + 0.020 / + 0.080	6.000 mm	4.000 mm + 0.000 / - 0.180	9.00 mm	1.50 mm
Material: Iglidur M250
Part Number: BF0030-0060-0040-PM (10 Pcs) Flanged Bushes - 3x6x4 mm - Iglidur M250 8 units (80 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
3.000 mm + 0.020 / + 0.080	6.000 mm	4.000 mm + 0.000 / - 0.180	9.00 mm
Material: Iglidur M250 Flange Thickness (s1): 1.50 mm
Part Number: BF0030-0060-0040-PM (10 Pcs) Flanged Bushes - 3x6x4 mm - Iglidur M250 8 units (80 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
BF0030-0060-0040-PM (10 Pcs) --- Flanged Bushes - 3x6x4 mm - Iglidur M250 Sale BF0030-0060-0040-PM (10 Pcs) --- Flanged Bushes - 3x6x4 mm - Iglidur M250 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 8 Available Now Sale
7.938 mm + 0.040 / + 0.130	11.113 mm	7.938 mm + 0.000 / - 0.220	14.22 mm	1.58 mm
Material: Iglidur M250
Part Number: BF0079-0111-0079-PM (7 Pcs) Flanged Bushes - 7.938x11.113x7.938 mm - Iglidur M250 1 pack (7 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.50 AUD Regular price ~~$19.95 AUD~~ Sale price $10.50 AUD Unit price per Per 7
7.938 mm + 0.040 / + 0.130	11.113 mm	7.938 mm + 0.000 / - 0.220	14.22 mm
Material: Iglidur M250 Flange Thickness (s1): 1.58 mm
Part Number: BF0079-0111-0079-PM (7 Pcs) Flanged Bushes - 7.938x11.113x7.938 mm - Iglidur M250 1 pack (7 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.50 AUD Regular price ~~$19.95 AUD~~ Sale price $10.50 AUD Unit price per Per 7
BF0079-0111-0079-PM (7 Pcs) --- Flanged Bushes - 7.938x11.113x7.938 mm - Iglidur M250 Sale BF0079-0111-0079-PM (7 Pcs) --- Flanged Bushes - 7.938x11.113x7.938 mm - Iglidur M250 Regular price $10.50 AUD Regular price ~~$19.95 AUD~~ Sale price $10.50 AUD Unit price per 1 Available Now Sale
9.000 mm + 0.040 / + 0.130	14.000 mm	10.000 mm + 0.000 / - 0.220	19.00 mm	2.00 mm
Material: Iglidur M250
Part Number: BF0090-0140-0100-PM (8 Pcs) Flanged Bushes - 9x14x10 mm - Iglidur M250 1 pack (8 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Per 8
9.000 mm + 0.040 / + 0.130	14.000 mm	10.000 mm + 0.000 / - 0.220	19.00 mm
Material: Iglidur M250 Flange Thickness (s1): 2.00 mm
Part Number: BF0090-0140-0100-PM (8 Pcs) Flanged Bushes - 9x14x10 mm - Iglidur M250 1 pack (8 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Per 8
BF0090-0140-0100-PM (8 Pcs) --- Flanged Bushes - 9x14x10 mm - Iglidur M250 Sale BF0090-0140-0100-PM (8 Pcs) --- Flanged Bushes - 9x14x10 mm - Iglidur M250 Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per 1 Available Now Sale
9.000 mm + 0.040 / + 0.130	14.000 mm	14.000 mm + 0.000 / - 0.270	19.00 mm	2.00 mm
Material: Iglidur M250
Part Number: BF0090-0140-0140-PM (5 Pcs) Flanged Bushes - 9x14x14 mm - Iglidur M250 3 units (15 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Per 5
9.000 mm + 0.040 / + 0.130	14.000 mm	14.000 mm + 0.000 / - 0.270	19.00 mm
Material: Iglidur M250 Flange Thickness (s1): 2.00 mm
Part Number: BF0090-0140-0140-PM (5 Pcs) Flanged Bushes - 9x14x14 mm - Iglidur M250 3 units (15 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Per 5
BF0090-0140-0140-PM (5 Pcs) --- Flanged Bushes - 9x14x14 mm - Iglidur M250 Sale BF0090-0140-0140-PM (5 Pcs) --- Flanged Bushes - 9x14x14 mm - Iglidur M250 Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per 3 Available Now Sale
9.525 mm + 0.040 / + 0.130	11.113 mm	6.350 mm + 0.000 / - 0.220	14.29 mm	0.81 mm
Material: Iglidur M250
Part Number: BF0095-0111-0064-PM (10 Pcs) Flanged Bushes - 9.525x11.113x6.35 mm - Iglidur M250 7 units (70 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.80 AUD Regular price ~~$24.32 AUD~~ Sale price $12.80 AUD Unit price per Per 10
9.525 mm + 0.040 / + 0.130	11.113 mm	6.350 mm + 0.000 / - 0.220	14.29 mm
Material: Iglidur M250 Flange Thickness (s1): 0.81 mm
Part Number: BF0095-0111-0064-PM (10 Pcs) Flanged Bushes - 9.525x11.113x6.35 mm - Iglidur M250 7 units (70 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $12.80 AUD Regular price ~~$24.32 AUD~~ Sale price $12.80 AUD Unit price per Per 10
BF0095-0111-0064-PM (10 Pcs) --- Flanged Bushes - 9.525x11.113x6.35 mm - Iglidur M250 Sale BF0095-0111-0064-PM (10 Pcs) --- Flanged Bushes - 9.525x11.113x6.35 mm - Iglidur M250 Regular price $12.80 AUD Regular price ~~$24.32 AUD~~ Sale price $12.80 AUD Unit price per 7 Available Now Sale
15.000 mm + 0.050 / + 0.160	21.000 mm	15.000 mm + 0.000 / - 0.270	27.00 mm	3.00 mm
Material: Iglidur M250
Part Number: BF0150-0210-0150-PM (10 Pcs) Flanged Bushes - 15x21x15 mm - Iglidur M250 2 units (20 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$34.20 AUD~~ Sale price $18.00 AUD Unit price per Per 10
15.000 mm + 0.050 / + 0.160	21.000 mm	15.000 mm + 0.000 / - 0.270	27.00 mm
Material: Iglidur M250 Flange Thickness (s1): 3.00 mm
Part Number: BF0150-0210-0150-PM (10 Pcs) Flanged Bushes - 15x21x15 mm - Iglidur M250 2 units (20 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$34.20 AUD~~ Sale price $18.00 AUD Unit price per Per 10
BF0150-0210-0150-PM (10 Pcs) --- Flanged Bushes - 15x21x15 mm - Iglidur M250 Sale BF0150-0210-0150-PM (10 Pcs) --- Flanged Bushes - 15x21x15 mm - Iglidur M250 Regular price $18.00 AUD Regular price ~~$34.20 AUD~~ Sale price $18.00 AUD Unit price per 2 Available Now Sale
28.000 mm + 0.065 / + 0.195	36.000 mm	40.000 mm + 0.000 / - 0.390	42.00 mm	4.00 mm
Material: Iglidur M250
Part Number: BF0280-0360-0400-PM (2 Pcs) Flanged Bushes - 28x36x40 mm - Iglidur M250 2 units (4 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 2
28.000 mm + 0.065 / + 0.195	36.000 mm	40.000 mm + 0.000 / - 0.390	42.00 mm
Material: Iglidur M250 Flange Thickness (s1): 4.00 mm
Part Number: BF0280-0360-0400-PM (2 Pcs) Flanged Bushes - 28x36x40 mm - Iglidur M250 2 units (4 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 2
BF0280-0360-0400-PM (2 Pcs) --- Flanged Bushes - 28x36x40 mm - Iglidur M250 Sale BF0280-0360-0400-PM (2 Pcs) --- Flanged Bushes - 28x36x40 mm - Iglidur M250 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 2 Available Now Sale
