Bushes - Flanged - Brass Graphite Plug

Bushes -> Flanged -> Brass Graphite Plug

There are 2 products in the sub-categories of Bushes - Flanged - Brass Graphite Plug. Browse the Bushes - Flanged - Brass Graphite Plug products table.

Category Details

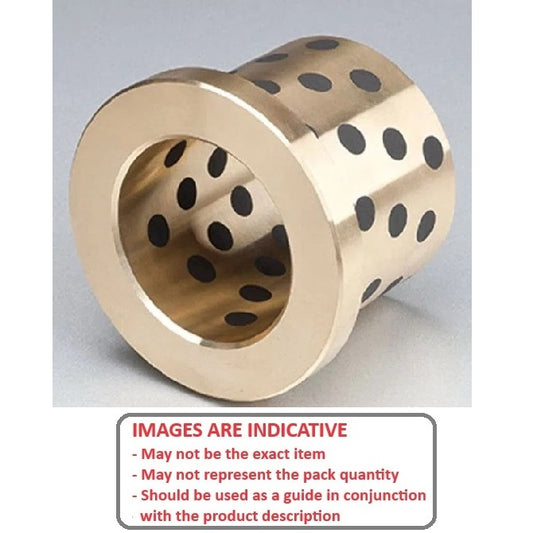

A selection of Brass Graphite Plug Flanged Bushes. Used for dies, moulds and heavy machinery. Brass Alloy.

  • An expanded range may be available on special order. Please enquire.
  • High-Tensile Brass Alloy. Suitable for use under conditions of heavy load and low speed operation.
  • Solid Lubricant Plugs
  • Excellent wear resistance can be exerted at parts with reciprocating motion, frequent starting and stopping, etc., where oil film is difficult to form.
  • Class 7 precision ID
  • 29N per mm sq max allowable load with max allowable speed 0.5m per second unlubricated and 1m per second lubricated

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bushes - Flanged - Brass Graphite Plug category on the MBA Minibearings main store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Flange Thickness (S1) Indicative

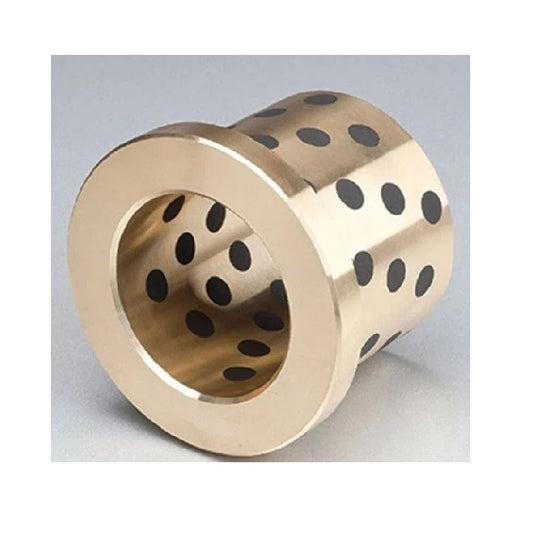

Flanged Bushes - 18x24x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
18.000
mm
+ 0.040 / + 0.061
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
24.000
mm
+ 0.028 / + 0.041
(Equiv. 0.945 in.)
Length (s)
12.000
mm
- 0.1 / - 0.3
(Equiv. 0.472 in.)
Flange Thickness (S1)
3.00
mm
Flanged Bushes - 18x24x12 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BF0180-0240-0120-BRP (Each)
4 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$13.32 AUD
$13.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Indicative
Flanged Bushes - 18x24x12 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
18.000
mm
+ 0.040 / + 0.061
(Equiv. 0.709 in.)
Nominal Outside Diameter (D)
24.000
mm
+ 0.028 / + 0.041
(Equiv. 0.945 in.)
Length (s)
12.000
mm
- 0.1 / - 0.3
(Equiv. 0.472 in.)
Flanged Bushes - 18x24x12 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug    Flange Thickness (S1): 3.00 mm
Part Number: BF0180-0240-0120-BRP (Each)
4 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$13.32 AUD
$13.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Flanged Bushes - 30x40x40 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
30.000
mm
m6
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
40.000
mm
m6
(Equiv. 1.575 in.)
Length (s)
40.000
mm
- 0.1 / - 0.3
(Equiv. 1.575 in.)
Flange Thickness (S1)
5.00
mm
Flanged Bushes - 30x40x40 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug
Part Number: BF0300-0400-0400-BRP (Each)
4 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$33.95 AUD
$33.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Flanged Bushes - 30x40x40 mm Brass Graphite Plug - Brass with Graphite Plug Bush
Nominal Inside Diameter (d)
30.000
mm
m6
(Equiv. 1.181 in.)
Nominal Outside Diameter (D)
40.000
mm
m6
(Equiv. 1.575 in.)
Length (s)
40.000
mm
- 0.1 / - 0.3
(Equiv. 1.575 in.)
Flanged Bushes - 30x40x40 mm - Brass with Graphite Plug
Material: Brass with Graphite Plug    Flange Thickness (S1): 5.00 mm
Part Number: BF0300-0400-0400-BRP (Each)
4 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$33.95 AUD
$33.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
