Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Double Sided

Belts -> Inch Timing -> 5.080mm Pitch XL -> 9.5mm Wide -> Double Sided

There is only 1 product in the sub-categories of Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Double Sided. Browse the Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Double Sided products table.

Category Details

A selection of Double Sided 9.5mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch - Double Sided.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 1.4mm
  • Tooth Height (H) - 1.2mm
  • Belt Height (W) - 3mm - Corner Radii ( r ) - 0.4mm
  • Pitch (P) - 5.08mm (0.2 inch)

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Double Sided category on the MBA Minibearings main store.
Number of Teeth Length Width Reinforcement Appearance Indicative

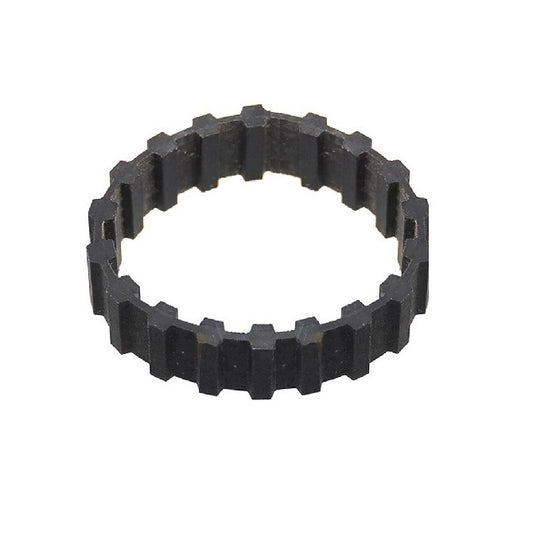

Inch Timing Belts - 30 tooth - 152.4x9.5 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
30

Length
152.4
mm

(Equiv. 6 in.)
Width
9.5
mm

(Equiv. 0.374 in.)
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1505 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Deleted Item. Available while stocks last.
Part Number: BD-XL-0030-0095-NFB (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Length Width Indicative

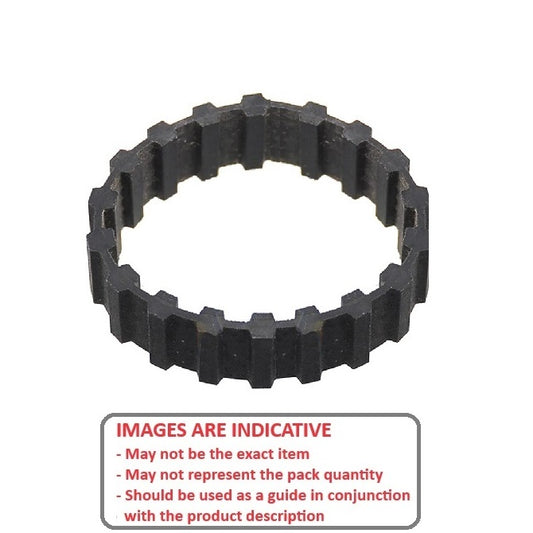

Inch Timing Belts - 30 tooth - 152.4x9.5 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
30

Length
152.4
mm

(Equiv. 6 in.)
Width
9.5
mm

(Equiv. 0.374 in.)
Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1505 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Deleted Item. Available while stocks last.
Part Number: BD-XL-0030-0095-NFB (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
