Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single Sided

Belts -> Inch Timing -> 5.080mm Pitch XL -> 6.4mm Wide -> Single Sided

There are 23 products in the sub-categories of Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single Sided. Scroll down or follow the link to Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single Sided in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Single Sided 6.4mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 1.4mm
  • Tooth Height (H) - 1.3mm
  • Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
  • Pitch (P) - 5.08mm (0.2 inch)

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single Sided category on the MBA Minibearings main store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Inch Timing Belts - 20 tooth - 101.6x6.4 mm 5.080mm Pitch XL - Polyurethane with Kevlar Cords Belt
Number of Teeth
20
Length
101.6
mm
Width
6.4
mm
Reinforcement
Kevlar
Appearance
Black
Inch Timing Belts - 20 tooth - 101.6x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Breaking Strength: 1549 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Part Number: B-XL-0020-0064-PKB (Each)
3 Available Now | Further orders can be expected around Sat, Nov 07, 2026
$8.95 AUD
$10.75 AUD $8.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 3 available can be backordered.
Number of Teeth Length Width Indicative
Inch Timing Belts - 20 tooth - 101.6x6.4 mm 5.080mm Pitch XL - Polyurethane with Kevlar Cords Belt
Number of Teeth
20
Length
101.6
mm
Width
6.4
mm
Inch Timing Belts - 20 tooth - 101.6x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Reinforcement: Kevlar    Appearance: Black    Breaking Strength: 1549 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Part Number: B-XL-0020-0064-PKB (Each)
3 Available Now | Further orders can be expected around Sat, Nov 07, 2026
$8.95 AUD
$10.75 AUD $8.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
Inch Timing Belts - 37 tooth - 187.96x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
37
Length
187.96
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 37 tooth - 187.96x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0037-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Inch Timing Belts - 37 tooth - 187.96x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
37
Length
187.96
mm
Width
6.4
mm
Inch Timing Belts - 37 tooth - 187.96x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0037-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
Inch Timing Belts - 38 tooth - 193.04x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
38
Length
193.04
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 38 tooth - 193.04x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0038-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Inch Timing Belts - 38 tooth - 193.04x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
38
Length
193.04
mm
Width
6.4
mm
Inch Timing Belts - 38 tooth - 193.04x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0038-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Inch Timing Belts - 40 tooth - 203.2x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
40
Length
203.2
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 40 tooth - 203.2x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0040-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Inch Timing Belts - 40 tooth - 203.2x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
40
Length
203.2
mm
Width
6.4
mm
Inch Timing Belts - 40 tooth - 203.2x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0040-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Inch Timing Belts - 44 tooth - 223.52x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
44
Length
223.52
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 44 tooth - 223.52x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0044-0064-NFB (Each)
5 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 5 available can be backordered.
Inch Timing Belts - 44 tooth - 223.52x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
44
Length
223.52
mm
Width
6.4
mm
Inch Timing Belts - 44 tooth - 223.52x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0044-0064-NFB (Each)
5 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
Inch Timing Belts - 45 tooth - 228.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
45
Length
228.6
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 45 tooth - 228.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0045-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Inch Timing Belts - 45 tooth - 228.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
45
Length
228.6
mm
Width
6.4
mm
Inch Timing Belts - 45 tooth - 228.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0045-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Inch Timing Belts - 45 tooth - 228.6x6.4 mm 5.080mm Pitch XL - Polyurethane with Polyester Cords Belt
Number of Teeth
45
Length
228.6
mm
Width
6.4
mm
Reinforcement
Polyester
Appearance
Black
Inch Timing Belts - 45 tooth - 228.6x6.4 mm - Polyurethane with Polyester Cords
Material: Polyurethane with Polyester Cords    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Deleted Item. Available while stocks last.
Part Number: B-XL-0045-0064-PPB (Each)
20 Available Now | Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 45 tooth - 228.6x6.4 mm 5.080mm Pitch XL - Polyurethane with Polyester Cords Belt
Number of Teeth
45
Length
228.6
mm
Width
6.4
mm
Inch Timing Belts - 45 tooth - 228.6x6.4 mm - Polyurethane with Polyester Cords
Material: Polyurethane with Polyester Cords    Reinforcement: Polyester    Appearance: Black    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Deleted Item. Available while stocks last.
Part Number: B-XL-0045-0064-PPB (Each)
20 Available Now | Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 48 tooth - 243.84x6.4 mm 5.080mm Pitch XL - Polyurethane with Kevlar Cords Belt
Number of Teeth
48
Length
243.84
mm
Width
6.4
mm
Reinforcement
Kevlar
Appearance
Black
Inch Timing Belts - 48 tooth - 243.84x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Breaking Strength: 1549 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Deleted Item. Available while stocks last.
Part Number: B-XL-0048-0064-PKB (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 48 tooth - 243.84x6.4 mm 5.080mm Pitch XL - Polyurethane with Kevlar Cords Belt
Number of Teeth
48
Length
243.84
mm
Width
6.4
mm
Inch Timing Belts - 48 tooth - 243.84x6.4 mm - Polyurethane with Kevlar Cords
Material: Polyurethane with Kevlar Cords    Reinforcement: Kevlar    Appearance: Black    Breaking Strength: 1549 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 66 Deg C
Deleted Item. Available while stocks last.
Part Number: B-XL-0048-0064-PKB (Each)
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 55 tooth - 279.4x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
55
Length
279.4
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 55 tooth - 279.4x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0055-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Inch Timing Belts - 55 tooth - 279.4x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
55
Length
279.4
mm
Width
6.4
mm
Inch Timing Belts - 55 tooth - 279.4x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0055-0064-NFB (Each)
8 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Inch Timing Belts - 62 tooth - 314.96x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
62
Length
314.96
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 62 tooth - 314.96x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0062-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Inch Timing Belts - 62 tooth - 314.96x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
62
Length
314.96
mm
Width
6.4
mm
Inch Timing Belts - 62 tooth - 314.96x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0062-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
Inch Timing Belts - 70 tooth - 355.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
70
Length
355.6
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 70 tooth - 355.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Deleted Item. Available while stocks last.
Part Number: B-XL-0070-0064-NFB (Each)
11 Available Now | Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$13.25 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

11 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 70 tooth - 355.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
70
Length
355.6
mm
Width
6.4
mm
Inch Timing Belts - 70 tooth - 355.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Deleted Item. Available while stocks last.
Part Number: B-XL-0070-0064-NFB (Each)
11 Available Now | Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$13.25 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

11 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inch Timing Belts - 71 tooth - 360.68x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
71
Length
360.68
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 71 tooth - 360.68x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0071-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Inch Timing Belts - 71 tooth - 360.68x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
71
Length
360.68
mm
Width
6.4
mm
Inch Timing Belts - 71 tooth - 360.68x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0071-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Inch Timing Belts - 80 tooth - 406.4x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
80
Length
406.4
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 80 tooth - 406.4x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0080-0064-NFB (Each)
17 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 17 available can be backordered.
Inch Timing Belts - 80 tooth - 406.4x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
80
Length
406.4
mm
Width
6.4
mm
Inch Timing Belts - 80 tooth - 406.4x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0080-0064-NFB (Each)
17 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

17 Available Now. Backorder if more than 17.
Inch Timing Belts - 82 tooth - 416.56x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
82
Length
416.56
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 82 tooth - 416.56x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0082-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Inch Timing Belts - 82 tooth - 416.56x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
82
Length
416.56
mm
Width
6.4
mm
Inch Timing Belts - 82 tooth - 416.56x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0082-0064-NFB (Each)
2 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Inch Timing Belts - 84 tooth - 426.72x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
84
Length
426.72
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 84 tooth - 426.72x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0084-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Inch Timing Belts - 84 tooth - 426.72x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
84
Length
426.72
mm
Width
6.4
mm
Inch Timing Belts - 84 tooth - 426.72x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0084-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
Inch Timing Belts - 91 tooth - 462.28x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
91
Length
462.28
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 91 tooth - 462.28x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0091-0064-NFB (Each)
1 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Inch Timing Belts - 91 tooth - 462.28x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
91
Length
462.28
mm
Width
6.4
mm
Inch Timing Belts - 91 tooth - 462.28x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0091-0064-NFB (Each)
1 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Inch Timing Belts - 95 tooth - 482.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
95
Length
482.6
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 95 tooth - 482.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0095-0064-NFB (Each)
28 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 28 available can be backordered.
Inch Timing Belts - 95 tooth - 482.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
95
Length
482.6
mm
Width
6.4
mm
Inch Timing Belts - 95 tooth - 482.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0095-0064-NFB (Each)
28 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

28 Available Now. Backorder if more than 28.
Inch Timing Belts - 108 tooth - 548.64x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
108
Length
548.64
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 108 tooth - 548.64x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0108-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Inch Timing Belts - 108 tooth - 548.64x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
108
Length
548.64
mm
Width
6.4
mm
Inch Timing Belts - 108 tooth - 548.64x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0108-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Inch Timing Belts - 109 tooth - 553.72x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
109
Length
553.72
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 109 tooth - 553.72x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0109-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Inch Timing Belts - 109 tooth - 553.72x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
109
Length
553.72
mm
Width
6.4
mm
Inch Timing Belts - 109 tooth - 553.72x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0109-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$3.41 AUD
$4.09 AUD $3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Inch Timing Belts - 125 tooth - 635x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
125
Length
635
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
1197802 | B-XL-0125-0064-NFB (Each) --- Inch Timing Belts - 125 tooth - 635x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0125-0064-NFB (Each)
Out of Stock | Backorder Now | More stock due: 2 around Mon, Jun 22, 2026 | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$5.84 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Inch Timing Belts - 125 tooth - 635x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
125
Length
635
mm
Width
6.4
mm
1197802 | B-XL-0125-0064-NFB (Each) --- Inch Timing Belts - 125 tooth - 635x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0125-0064-NFB (Each)
Out of Stock | Backorder Now | More stock due: 2 around Mon, Jun 22, 2026 | Further orders can be expected around Fri, Jul 17, 2026
$4.86 AUD
$5.84 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

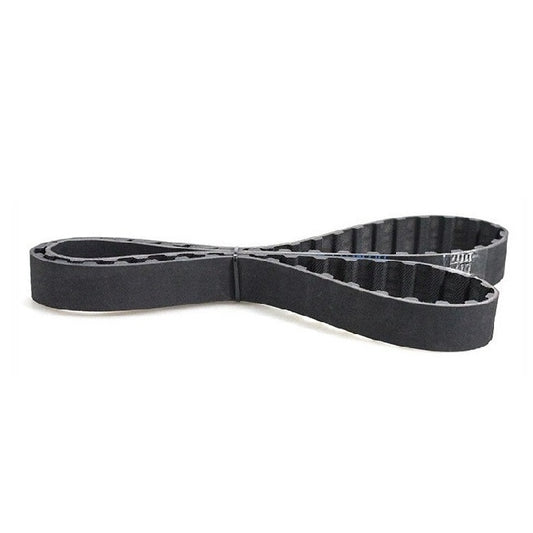

Inch Timing Belts - 250 tooth - 1270x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
250
Length
1270
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
1216313 | B-XL-0250-0064-NFB (Each) --- Inch Timing Belts - 250 tooth - 1270x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0250-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$5.32 AUD
$6.38 AUD $5.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Inch Timing Belts - 250 tooth - 1270x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
250
Length
1270
mm
Width
6.4
mm
1216313 | B-XL-0250-0064-NFB (Each) --- Inch Timing Belts - 250 tooth - 1270x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0250-0064-NFB (Each)
4 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$5.32 AUD
$6.38 AUD $5.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Inch Timing Belts - 270 tooth - 1371.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
270
Length
1371.6
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 270 tooth - 1371.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0270-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$8.32 AUD
$8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 6 available can be backordered.
Inch Timing Belts - 270 tooth - 1371.6x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
270
Length
1371.6
mm
Width
6.4
mm
Inch Timing Belts - 270 tooth - 1371.6x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0270-0064-NFB (Each)
6 Available Now | Further orders can be expected around Fri, Jul 17, 2026
$8.32 AUD
$8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

6 Available Now. Backorder if more than 6.
Inch Timing Belts - 315 tooth - 1600.2x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
315
Length
1600.2
mm
Width
6.4
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 315 tooth - 1600.2x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0315-0064-NFB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Jul 17, 2026
$11.23 AUD
$11.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Inch Timing Belts - 315 tooth - 1600.2x6.4 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
315
Length
1600.2
mm
Width
6.4
mm
Inch Timing Belts - 315 tooth - 1600.2x6.4 mm - Nylon Covered Neoprene with Fibreglass Cords
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 1003 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 50 °
Part Number: B-XL-0315-0064-NFB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Jul 17, 2026
$11.23 AUD
$11.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
