Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide

Belts -> Inch Timing -> 5.080mm Pitch XL -> 12.7mm Wide

There are 4 products in the sub-categories of Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide. Browse the Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide products table.

Category Details

A selection of 12.7mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch. 12mm or 12.7mm width.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 1.4mm
  • Tooth Height (H) - 1.3mm
  • Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
  • Pitch (P) - 5.08mm (0.2 inch)

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide category on the MBA Minibearings main store.
Number of Teeth Length Width Reinforcement Appearance Indicative
Inch Timing Belts - 30 tooth - 152.4x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene Rubber with Fibreglass Belt
Number of Teeth
30
Length
152.4
mm
Width
12.7
mm
Reinforcement
Fibreglass
Appearance
Black
Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass
Material: Nylon Covered Neoprene Rubber with Fibreglass    Breaking Strength: 2006 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-XL-0030-0127-NFB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$6.86 AUD
$6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Number of Teeth Length Width Indicative
Inch Timing Belts - 30 tooth - 152.4x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene Rubber with Fibreglass Belt
Number of Teeth
30
Length
152.4
mm
Width
12.7
mm
Inch Timing Belts - 30 tooth - 152.4x12.7 mm - Nylon Covered Neoprene Rubber with Fibreglass
Material: Nylon Covered Neoprene Rubber with Fibreglass    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 2006 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-XL-0030-0127-NFB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$6.86 AUD
$6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Inch Timing Belts - 246 tooth - 1249.68x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
246
Length
1249.68
mm
Width
12.7
mm
Reinforcement
Fibreglass
Appearance
Black
1215876 | B-XL-0246-0127-NFB (Each) --- Inch Timing Belts - 246 tooth - 1249.68x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0246-0127-NFB (Each)
4 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$12.86 AUD
$15.44 AUD $12.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Inch Timing Belts - 246 tooth - 1249.68x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
246
Length
1249.68
mm
Width
12.7
mm
1215876 | B-XL-0246-0127-NFB (Each) --- Inch Timing Belts - 246 tooth - 1249.68x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black
Part Number: B-XL-0246-0127-NFB (Each)
4 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$12.86 AUD
$15.44 AUD $12.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Inch Timing Belts - 250 tooth - 1270x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
250
Length
1270
mm
Width
12.7
mm
Reinforcement
Fibreglass
Appearance
Black
1216320 | B-XL-0250-0127-NFB (Each) --- Inch Timing Belts - 250 tooth - 1270x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0250-0127-NFB (Each)
2 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$9.32 AUD
$11.18 AUD $9.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Inch Timing Belts - 250 tooth - 1270x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
250
Length
1270
mm
Width
12.7
mm
1216320 | B-XL-0250-0127-NFB (Each) --- Inch Timing Belts - 250 tooth - 1270x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black
Part Number: B-XL-0250-0127-NFB (Each)
2 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$9.32 AUD
$11.18 AUD $9.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.

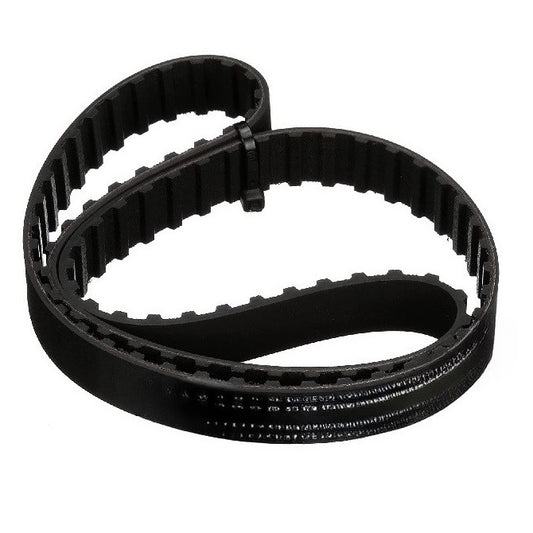

Inch Timing Belts - 253 tooth - 1285.24x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
253
Length
1285.24
mm
Width
12.7
mm
Reinforcement
Fibreglass
Appearance
Black
1216503 | B-XL-0253-0127-NFB (Each) --- Inch Timing Belts - 253 tooth - 1285.24x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-XL-0253-0127-NFB (Each)
4 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$9.86 AUD
$11.84 AUD $9.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Inch Timing Belts - 253 tooth - 1285.24x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Number of Teeth
253
Length
1285.24
mm
Width
12.7
mm
1216503 | B-XL-0253-0127-NFB (Each) --- Inch Timing Belts - 253 tooth - 1285.24x12.7 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black
Part Number: B-XL-0253-0127-NFB (Each)
4 Available Now | Further orders can be expected around Sat, Jul 11, 2026
$9.86 AUD
$11.84 AUD $9.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
