Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide

Belts -> Inch Timing -> 2.032mm Pitch MXL -> 9.5mm Wide

There are 25 products in the sub-categories of Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide. Scroll down or follow the link to Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide in the products table to see all these items combined into a handy table with filters.

Category Details

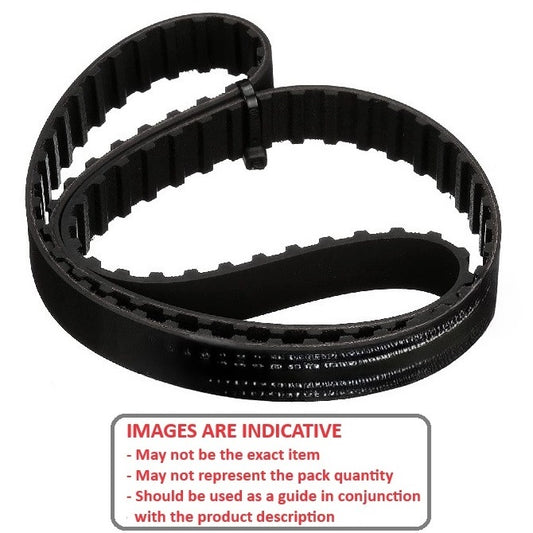

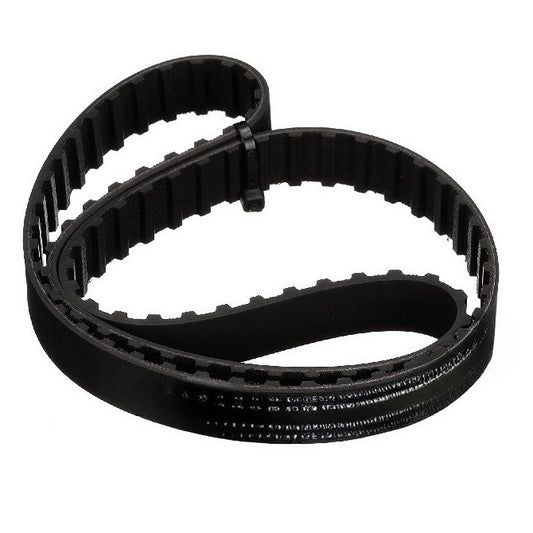

A selection of 9.5mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 9.53mm (3/8 inch) widths +/- 0.2mm

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm
  • Tooth Height (H) - 0.46mm
  • Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
  • Pitch (P) - 2.032mm (0.08 inch)

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide category on the MBA Minibearings main store.
