Belts - Inch Timing - 2.032mm Pitch MXL - 7.9mm Wide

1 Item Available
  • Standard Series Timing Belts 2.032mm or 0.080 inch pitch. 7.93mm (5/16 inch) widths +/- 0.2mm
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm.
  • Tooth Height (H) - 0.46mm.
  • Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm.
  • Pitch (P) - 2.032mm (0.08 inch)
Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Teeth Length Width Reinforcement Appearance Indicative
295
 599.44
mm 		7.9
mm 		Fibreglass
 Black

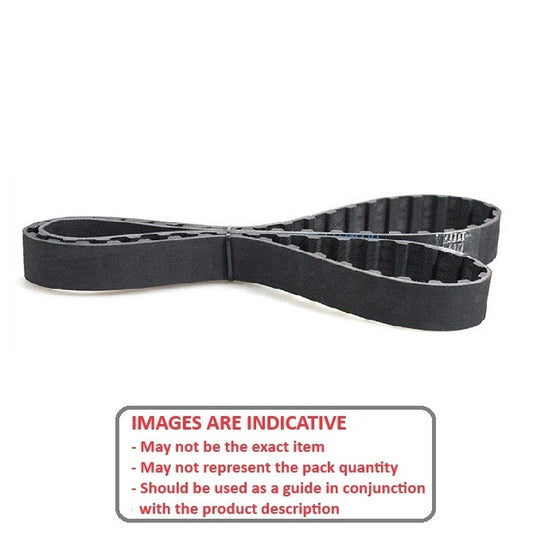

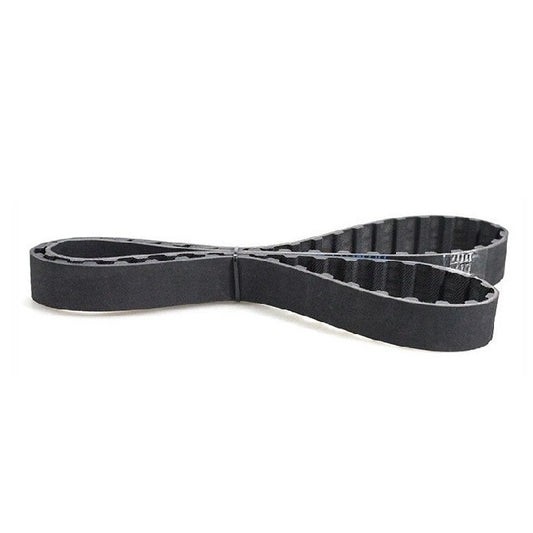

 1214757 | B-MXL-0295-0079-NFB (2 Pcs) --- Inch Timing Belts - 295 x 599.44 mm x 7.9 mm
Material: Nylon Covered Neoprene with Fibreglass Cords    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0295-0079-NFB (2 Pcs) Inch Timing Belts - 295 x 599.44 mm x 7.9 mm
1 pack (2 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$12.00 AUD
$19.80 AUD $12.00 AUD
Per 2
Teeth Length Width Indicative
295
 599.44
mm 		7.9
mm 		1214757 | B-MXL-0295-0079-NFB (2 Pcs) --- Inch Timing Belts - 295 x 599.44 mm x 7.9 mm
Material: Nylon Covered Neoprene with Fibreglass Cords    Reinforcement: Fibreglass    Appearance: Black    Breaking Strength: 572 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C    Tooth Angle (A): 40 °
Part Number: B-MXL-0295-0079-NFB (2 Pcs) Inch Timing Belts - 295 x 599.44 mm x 7.9 mm
1 pack (2 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$12.00 AUD
$19.80 AUD $12.00 AUD
Per 2
