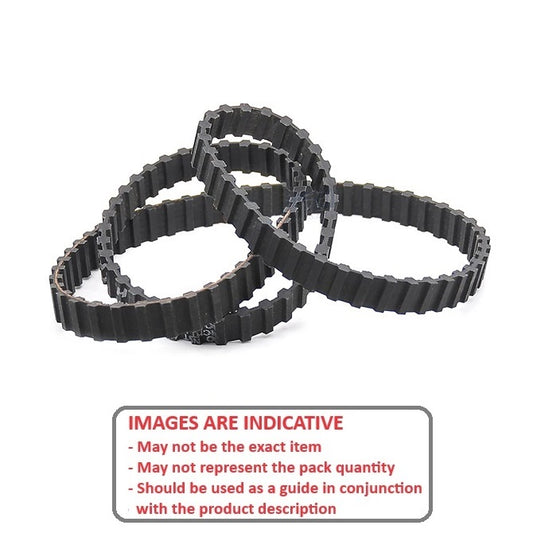

Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Double Sided

1 Item Available
  • Standard Series Timing Belts 2.032mm or 0.080 inch pitch. 6.35mm (1/4 inch) widths +/- 0.2mm
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Length (T) - 0.76mm.
  • Tooth Height (H) - 0.51mm.
  • Belt Height (W) - 1.52mm - Corner Radii ( r ) - 0.13mm.
  • Pitch (P) - 2.032mm (0.08 inch)
Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Teeth Length Width Reinforcement Appearance Indicative
236
 479.552
mm 		6.4
mm 		Kevlar
 Amber
 1211141 | BD-MXL-0236-0064-PKA --- Inch Timing Belts - 236 x 479.552 mm x 6.4 mm
Material: Polyurethane with Kevlar Cords    Breaking Strength: 1156 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 82 Deg C    Tooth Angle (A): 40 °
Part Number: BD-MXL-0236-0064-PKA Inch Timing Belts - 236 x 479.552 mm x 6.4 mm
39 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Each
Teeth Length Width Indicative
236
 479.552
mm 		6.4
mm 		1211141 | BD-MXL-0236-0064-PKA --- Inch Timing Belts - 236 x 479.552 mm x 6.4 mm
Material: Polyurethane with Kevlar Cords    Reinforcement: Kevlar    Appearance: Amber    Breaking Strength: 1156 N    Min Temperature (C): -18 Deg C    Max Temperature (C): 82 Deg C    Tooth Angle (A): 40 °
Part Number: BD-MXL-0236-0064-PKA Inch Timing Belts - 236 x 479.552 mm x 6.4 mm
39 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Each
