Collection: Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard

Belts (With Images)

Inch Timing

2.032mm Pitch MXL

3.2mm Wide

Clean
Standard

61 Products in this selection

Timing belts combined with timing pulleys, provide power transmission without slippage.
Standard Series Timing Belts 2.032mm or 0.080 inch pitch. 3.18mm (1/8 inch) widths +/- 0.2mm
Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Tooth Length (T) - 0.76mm.
Tooth Height (H) - 0.46mm.
Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm.
Pitch (P) - 2.032mm (0.08 inch)

Small Parts & Bearings

Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue

A more comprehensive listing may be found on the MBA Minibearings main store at Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard.

Teeth	Length	Width	Reinforcement	Appearance
Teeth 30	Length 60.96 mm _{(2.4 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Polyester	Appearance Orange

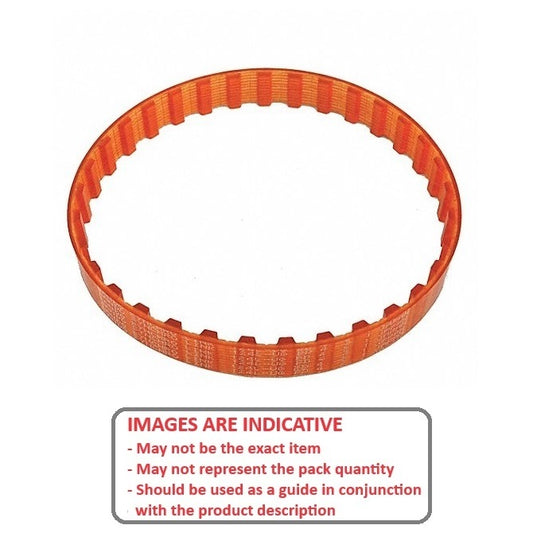

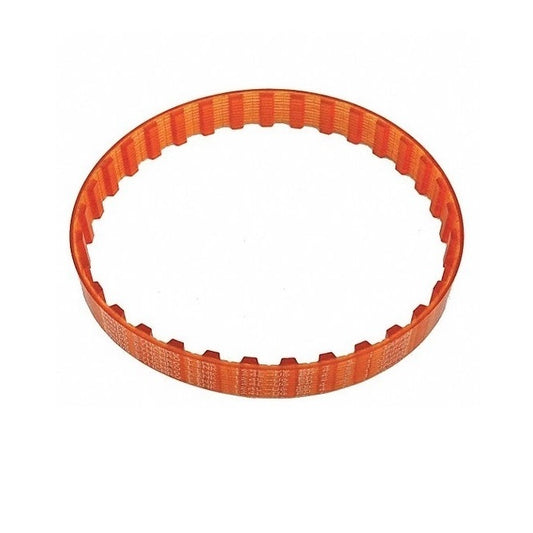

Material: Polyurethane with Polyester Cords Breaking Strength: 178 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0030-0032-PPO Inch Timing Belts - 30 tooth - 60.96x3.2 mm - Polyurethane with Polyester Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
Teeth	Length	Width	Indicative Image
Teeth 30	Length 60.96 mm _{(2.4 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Polyurethane with Polyester Cords Reinforcement: Polyester Appearance: Orange Breaking Strength: 178 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0030-0032-PPO Inch Timing Belts - 30 tooth - 60.96x3.2 mm - Polyurethane with Polyester Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
B-MXL-0030-0032-PPO --- Inch Timing Belts - 30 tooth - 60.96x3.2 mm - Polyurethane with Polyester Cords Sale B-MXL-0030-0032-PPO --- Inch Timing Belts - 30 tooth - 60.96x3.2 mm - Polyurethane with Polyester Cords Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 1 Available Now Sale
Teeth 42	Length 85.344 mm _{(3.36 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0042-0032-NFB Inch Timing Belts - 42 tooth - 85.344x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each
Teeth 42	Length 85.344 mm _{(3.36 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0042-0032-NFB Inch Timing Belts - 42 tooth - 85.344x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0042-0032-NFB --- Inch Timing Belts - 42 tooth - 85.344x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0042-0032-NFB --- Inch Timing Belts - 42 tooth - 85.344x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 8 Available Now
Teeth 45	Length 91.44 mm _{(3.6 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0045-0032-NFB Inch Timing Belts - 45 tooth - 91.44x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 6 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each
Teeth 45	Length 91.44 mm _{(3.6 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0045-0032-NFB Inch Timing Belts - 45 tooth - 91.44x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 6 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0045-0032-NFB --- Inch Timing Belts - 45 tooth - 91.44x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0045-0032-NFB --- Inch Timing Belts - 45 tooth - 91.44x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 6 Available Now
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0050-0032-NFB Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0050-0032-NFB Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0050-0032-NFB --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0050-0032-NFB --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 2 Available Now
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Kevlar	Appearance Grey
Material: Polyurethane with Kevlar Cords Breaking Strength: 356 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0050-0032-PKG Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Kevlar Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Polyurethane with Kevlar Cords Reinforcement: Kevlar Appearance: Grey Breaking Strength: 356 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0050-0032-PKG Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Kevlar Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each
B-MXL-0050-0032-PKG --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Kevlar Cords Sale B-MXL-0050-0032-PKG --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Kevlar Cords Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 5 Available Now Sale
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Polyester	Appearance Orange
Material: Polyurethane with Polyester Cords Breaking Strength: 178 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0050-0032-PPO (2 Pcs) Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Polyester Cords 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.19 AUD Regular price ~~$9.86 AUD~~ Sale price $5.19 AUD Unit price per Per 2
Teeth 50	Length 101.6 mm _{(4 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Polyurethane with Polyester Cords Reinforcement: Polyester Appearance: Orange Breaking Strength: 178 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0050-0032-PPO (2 Pcs) Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Polyester Cords 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.19 AUD Regular price ~~$9.86 AUD~~ Sale price $5.19 AUD Unit price per Per 2
B-MXL-0050-0032-PPO (2 Pcs) --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Polyester Cords Sale B-MXL-0050-0032-PPO (2 Pcs) --- Inch Timing Belts - 50 tooth - 101.6x3.2 mm - Polyurethane with Polyester Cords Regular price $5.19 AUD Regular price ~~$9.86 AUD~~ Sale price $5.19 AUD Unit price per 1 Available Now Sale
Teeth 52	Length 105.664 mm _{(4.16 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0052-0032-NFB Inch Timing Belts - 52 tooth - 105.664x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 14 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Teeth 52	Length 105.664 mm _{(4.16 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0052-0032-NFB Inch Timing Belts - 52 tooth - 105.664x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 14 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0052-0032-NFB --- Inch Timing Belts - 52 tooth - 105.664x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0052-0032-NFB --- Inch Timing Belts - 52 tooth - 105.664x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 14 Available Now
Teeth 57	Length 115.824 mm _{(4.56 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0057-0032-NFB Inch Timing Belts - 57 tooth - 115.824x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Teeth 57	Length 115.824 mm _{(4.56 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0057-0032-NFB Inch Timing Belts - 57 tooth - 115.824x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0057-0032-NFB --- Inch Timing Belts - 57 tooth - 115.824x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0057-0032-NFB --- Inch Timing Belts - 57 tooth - 115.824x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 8 Available Now
Teeth 60	Length 121.92 mm _{(4.8 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0060-0032-NFB Inch Timing Belts - 60 tooth - 121.92x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 7 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Teeth 60	Length 121.92 mm _{(4.8 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0060-0032-NFB Inch Timing Belts - 60 tooth - 121.92x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 7 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0060-0032-NFB --- Inch Timing Belts - 60 tooth - 121.92x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0060-0032-NFB --- Inch Timing Belts - 60 tooth - 121.92x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 7 Available Now
Teeth 61	Length 123.952 mm _{(4.88 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0061-0032-NFB Inch Timing Belts - 61 tooth - 123.952x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.68 AUD Regular price ~~$6.37 AUD~~ Sale price $3.68 AUD Unit price per Each
Teeth 61	Length 123.952 mm _{(4.88 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0061-0032-NFB Inch Timing Belts - 61 tooth - 123.952x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.68 AUD Regular price ~~$6.37 AUD~~ Sale price $3.68 AUD Unit price per Each
B-MXL-0061-0032-NFB --- Inch Timing Belts - 61 tooth - 123.952x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0061-0032-NFB --- Inch Timing Belts - 61 tooth - 123.952x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $3.68 AUD Regular price ~~$6.37 AUD~~ Sale price $3.68 AUD Unit price per 8 Available Now Sale
Teeth 67	Length 136.144 mm _{(5.36 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene Rubber with Fibreglass Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: A6Z16-067012 Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene Rubber with Fibreglass 200 Available Now \| Item Discontinued - Up to 200 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per Each
Teeth 67	Length 136.144 mm _{(5.36 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene Rubber with Fibreglass Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: A6Z16-067012 Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene Rubber with Fibreglass 200 Available Now \| Item Discontinued - Up to 200 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per Each
A6Z16-067012 --- Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene Rubber with Fibreglass Sale A6Z16-067012 --- Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene Rubber with Fibreglass Regular price $9.00 AUD Regular price ~~$17.10 AUD~~ Sale price $9.00 AUD Unit price per 200 Available Now Sale
Teeth 67	Length 136.144 mm _{(5.36 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0067-0032-NFB Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each
Teeth 67	Length 136.144 mm _{(5.36 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0067-0032-NFB Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0067-0032-NFB --- Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0067-0032-NFB --- Inch Timing Belts - 67 tooth - 136.144x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Out of stock! Backorder Now Sale
Teeth 68	Length 138.176 mm _{(5.44 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0068-0032-NFB Inch Timing Belts - 68 tooth - 138.176x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each
Teeth 68	Length 138.176 mm _{(5.44 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0068-0032-NFB Inch Timing Belts - 68 tooth - 138.176x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0068-0032-NFB --- Inch Timing Belts - 68 tooth - 138.176x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0068-0032-NFB --- Inch Timing Belts - 68 tooth - 138.176x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Out of stock! Backorder Now Sale
Teeth 73	Length 148.336 mm _{(5.84 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0073-0032-NFB Inch Timing Belts - 73 tooth - 148.336x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.68 AUD Regular price ~~$6.41 AUD~~ Sale price $3.68 AUD Unit price per Each
Teeth 73	Length 148.336 mm _{(5.84 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0073-0032-NFB Inch Timing Belts - 73 tooth - 148.336x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.68 AUD Regular price ~~$6.41 AUD~~ Sale price $3.68 AUD Unit price per Each
B-MXL-0073-0032-NFB --- Inch Timing Belts - 73 tooth - 148.336x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0073-0032-NFB --- Inch Timing Belts - 73 tooth - 148.336x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $3.68 AUD Regular price ~~$6.41 AUD~~ Sale price $3.68 AUD Unit price per 1 Available Now Sale
Teeth 75	Length 152.4 mm _{(6 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0075-0032-NFB Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 19 Available Now \| Item Discontinued - Up to 19 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per Each
Teeth 75	Length 152.4 mm _{(6 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0075-0032-NFB Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 19 Available Now \| Item Discontinued - Up to 19 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per Each
B-MXL-0075-0032-NFB --- Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0075-0032-NFB --- Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per 19 Available Now Sale
Teeth 75	Length 152.4 mm _{(6 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Kevlar	Appearance Grey
Material: Polyurethane with Kevlar Cords Breaking Strength: 356 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0075-0032-PKG Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Polyurethane with Kevlar Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.24 AUD Regular price ~~$4.25 AUD~~ Sale price $2.24 AUD Unit price per Each
Teeth 75	Length 152.4 mm _{(6 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Polyurethane with Kevlar Cords Reinforcement: Kevlar Appearance: Grey Breaking Strength: 356 N Min Temperature (C): -18 Deg C Max Temperature (C): 66 Deg C Tooth Angle (A): 60 °
Part Number: B-MXL-0075-0032-PKG Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Polyurethane with Kevlar Cords 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.24 AUD Regular price ~~$4.25 AUD~~ Sale price $2.24 AUD Unit price per Each
B-MXL-0075-0032-PKG --- Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Polyurethane with Kevlar Cords Sale B-MXL-0075-0032-PKG --- Inch Timing Belts - 75 tooth - 152.4x3.2 mm - Polyurethane with Kevlar Cords Regular price $2.24 AUD Regular price ~~$4.25 AUD~~ Sale price $2.24 AUD Unit price per 1 Available Now Sale
Teeth 78	Length 158.496 mm _{(6.24 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0078-0032-NFB Inch Timing Belts - 78 tooth - 158.496x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 9 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Teeth 78	Length 158.496 mm _{(6.24 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0078-0032-NFB Inch Timing Belts - 78 tooth - 158.496x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 9 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0078-0032-NFB --- Inch Timing Belts - 78 tooth - 158.496x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0078-0032-NFB --- Inch Timing Belts - 78 tooth - 158.496x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 9 Available Now
Teeth 90	Length 182.88 mm _{(7.2 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0090-0032-NFB Inch Timing Belts - 90 tooth - 182.88x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each
Teeth 90	Length 182.88 mm _{(7.2 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0090-0032-NFB Inch Timing Belts - 90 tooth - 182.88x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0090-0032-NFB --- Inch Timing Belts - 90 tooth - 182.88x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0090-0032-NFB --- Inch Timing Belts - 90 tooth - 182.88x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 8 Available Now
Teeth 93	Length 188.976 mm _{(7.44 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0093-0032-NFB Inch Timing Belts - 93 tooth - 188.976x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per Each
Teeth 93	Length 188.976 mm _{(7.44 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0093-0032-NFB Inch Timing Belts - 93 tooth - 188.976x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per Each
B-MXL-0093-0032-NFB --- Inch Timing Belts - 93 tooth - 188.976x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0093-0032-NFB --- Inch Timing Belts - 93 tooth - 188.976x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $3.77 AUD Regular price ~~$6.48 AUD~~ Sale price $3.77 AUD Unit price per 5 Available Now Sale
Teeth 95	Length 193.04 mm _{(7.6 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0095-0032-NFB Inch Timing Belts - 95 tooth - 193.04x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 10 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each
Teeth 95	Length 193.04 mm _{(7.6 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0095-0032-NFB Inch Timing Belts - 95 tooth - 193.04x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 10 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0095-0032-NFB --- Inch Timing Belts - 95 tooth - 193.04x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0095-0032-NFB --- Inch Timing Belts - 95 tooth - 193.04x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 10 Available Now
Teeth 102	Length 207.264 mm _{(8.16 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0102-0032-NFB Inch Timing Belts - 102 tooth - 207.264x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 7 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Teeth 102	Length 207.264 mm _{(8.16 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0102-0032-NFB Inch Timing Belts - 102 tooth - 207.264x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 7 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0102-0032-NFB --- Inch Timing Belts - 102 tooth - 207.264x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0102-0032-NFB --- Inch Timing Belts - 102 tooth - 207.264x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 7 Available Now
Teeth 104	Length 211.328 mm _{(8.32 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0104-0032-NFB Inch Timing Belts - 104 tooth - 211.328x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.05 AUD Regular price ~~$7.01 AUD~~ Sale price $4.05 AUD Unit price per Each
Teeth 104	Length 211.328 mm _{(8.32 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0104-0032-NFB Inch Timing Belts - 104 tooth - 211.328x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.05 AUD Regular price ~~$7.01 AUD~~ Sale price $4.05 AUD Unit price per Each
B-MXL-0104-0032-NFB --- Inch Timing Belts - 104 tooth - 211.328x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0104-0032-NFB --- Inch Timing Belts - 104 tooth - 211.328x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $4.05 AUD Regular price ~~$7.01 AUD~~ Sale price $4.05 AUD Unit price per 5 Available Now Sale
Teeth 107	Length 217.424 mm _{(8.56 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0107-0032-NFB Inch Timing Belts - 107 tooth - 217.424x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each
Teeth 107	Length 217.424 mm _{(8.56 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0107-0032-NFB Inch Timing Belts - 107 tooth - 217.424x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 13, 2025 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0107-0032-NFB --- Inch Timing Belts - 107 tooth - 217.424x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-MXL-0107-0032-NFB --- Inch Timing Belts - 107 tooth - 217.424x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Out of stock! Backorder Now Sale
Teeth 110	Length 223.52 mm _{(8.8 in.)}	Width 3.2 mm _{(0.126 in.)}	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0110-0032-NFB Inch Timing Belts - 110 tooth - 223.52x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Teeth 110	Length 223.52 mm _{(8.8 in.)}	Width 3.2 mm _{(0.126 in.)}
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 229 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 40 °
Part Number: B-MXL-0110-0032-NFB Inch Timing Belts - 110 tooth - 223.52x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords 8 Available Now \| Further orders can be expected around Wed, Aug 13, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
B-MXL-0110-0032-NFB --- Inch Timing Belts - 110 tooth - 223.52x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords B-MXL-0110-0032-NFB --- Inch Timing Belts - 110 tooth - 223.52x3.2 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 8 Available Now

Country/region

Country/region

Collection: Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard

Filter

Filter

Subscribe to our emails
