Bearings - Thrust Roller - Cage and Rollers Only

Bearings -> Thrust Roller -> Cage and Rollers Only

There are 9 products in the sub-categories of Bearings - Thrust Roller - Cage and Rollers Only. Browse the Bearings - Thrust Roller - Cage and Rollers Only products table.

Category Details

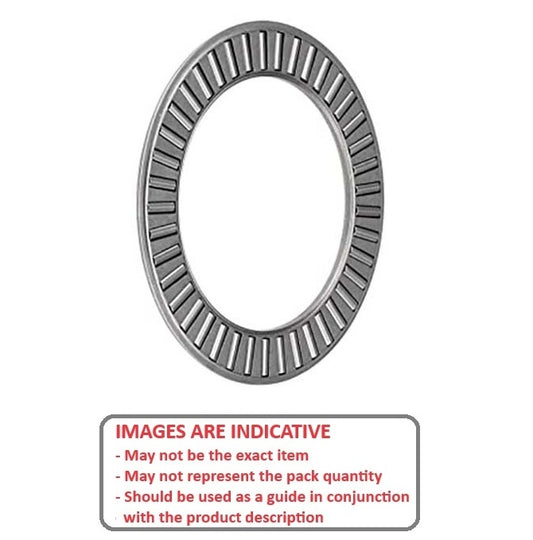

A selection of Cage and Rollers Only Thrust Roller Bearings. Washers sold separately. Match cage and roller assembly with washers from the washers category.

  • Thrust roller bearings come in two parts, a caged roller bearing, and the washers sold separately.
  • Some sizes have a range of washer thicknesses to choose from. Most applications will require two washers to each caged roller.
  • Raceway hardness 58 HRC.
  • Limiting Speeds are based on adequate oil lubrication.
  • Load ratings are a guide taking into consideration ideal operating conditions.
  • Dimensions given are nominal.
  • Select the correct washer OD. Some washers listed here are to suit thrust ball bearings.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bearings - Thrust Roller - Cage and Rollers Only category on the MBA Minibearings main store.
Bore (d Nom.) OD (D Nom.) Washer or Bearing Nom. Thickness (B Max) Basic Dyn. Load Rating Basic Stat. Load Rating Indicative
Thrust Roller Bearings - 7.92x19.05 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
7.92
mm

(Equiv. 0.312 in.)
OD (D Nom.)
19.05
mm

(Equiv. 0.75 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
469
kgf
Basic Stat. Load Rating
1121
kgf
Thrust Roller Bearings - 7.92x19.05 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 25000 RPM    Roller OD (Dr): 16.30    Roller ID (dr): 10.20    Shaft Pilot Dia. Range (d): 7.84 - 7.92 mm
Part Number: T-0079-0191-RC (Each)
306 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$7.68 AUD
$7.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 306 available can be backordered.
Bore (d Nom.) OD (D Nom.) Washer or Bearing Nom. Thickness (B Max) Indicative
Thrust Roller Bearings - 7.92x19.05 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
7.92
mm

(Equiv. 0.312 in.)
OD (D Nom.)
19.05
mm

(Equiv. 0.75 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 7.92x19.05 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 469 kgf    Basic Stat. Load Rating: 1121 kgf    Limiting Speed: 25000 RPM    Roller OD (Dr): 16.30    Roller ID (dr): 10.20    Shaft Pilot Dia. Range (d): 7.84 - 7.92 mm
Part Number: T-0079-0191-RC (Each)
306 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$7.68 AUD
$7.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

306 Available Now. Backorder if more than 306.
Thrust Roller Bearings - 9.52x20.62 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
9.52
mm

(Equiv. 0.375 in.)
OD (D Nom.)
20.62
mm

(Equiv. 0.812 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
487
kgf
Basic Stat. Load Rating
1223
kgf
Thrust Roller Bearings - 9.52x20.62 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 23000 RPM    Roller OD (Dr): 18.00    Roller ID (dr): 11.70    Shaft Pilot Dia. Range (d): 9.44 - 9.52 mm
Part Number: T-0095-0206-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$8.32 AUD
$8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 9.52x20.62 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
9.52
mm

(Equiv. 0.375 in.)
OD (D Nom.)
20.62
mm

(Equiv. 0.812 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 9.52x20.62 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 487 kgf    Basic Stat. Load Rating: 1223 kgf    Limiting Speed: 23000 RPM    Roller OD (Dr): 18.00    Roller ID (dr): 11.70    Shaft Pilot Dia. Range (d): 9.44 - 9.52 mm
Part Number: T-0095-0206-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$8.32 AUD
$8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 10x24 mm - Rollers and Cage / 2 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
10.00
mm

(Equiv. 0.394 in.)
OD (D Nom.)
24.00
mm

(Equiv. 0.945 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
2.00
mm
Basic Dyn. Load Rating
768
kgf
Basic Stat. Load Rating
2268
kgf
Thrust Roller Bearings - 10x24 mm - Rollers and Cage / 2 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 18000 RPM    Roller OD (Dr): 23.00    Roller ID (dr): 12.00    Shaft Pilot Dia. Range (d): 9.94 - 10.00 mm
Part Number: T-0100-0240-RC (PK-2)
37 units (74 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$5.41 AUD
$5.41 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 37 available can be backordered.
Thrust Roller Bearings - 10x24 mm - Rollers and Cage / 2 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
10.00
mm

(Equiv. 0.394 in.)
OD (D Nom.)
24.00
mm

(Equiv. 0.945 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
2.00
mm
Thrust Roller Bearings - 10x24 mm - Rollers and Cage / 2 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 768 kgf    Basic Stat. Load Rating: 2268 kgf    Limiting Speed: 18000 RPM    Roller OD (Dr): 23.00    Roller ID (dr): 12.00    Shaft Pilot Dia. Range (d): 9.94 - 10.00 mm
Part Number: T-0100-0240-RC (PK-2)
37 units (74 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026
$5.41 AUD
$5.41 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

37 units (74 pcs) Available Now. Backorder if more than 37.
Thrust Roller Bearings - 12.7x23.8 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
12.70
mm

(Equiv. 0.5 in.)
OD (D Nom.)
23.80
mm

(Equiv. 0.937 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
576
kgf
Basic Stat. Load Rating
1634
kgf
Thrust Roller Bearings - 12.7x23.8 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 19000 RPM    Roller OD (Dr): 21.10    Roller ID (dr): 15.00    Shaft Pilot Dia. Range (d): 12.62 - 12.70 mm
Part Number: T-0127-0238-RC (Each)
7 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$16.23 AUD
$16.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 7 available can be backordered.
Thrust Roller Bearings - 12.7x23.8 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
12.70
mm

(Equiv. 0.5 in.)
OD (D Nom.)
23.80
mm

(Equiv. 0.937 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 12.7x23.8 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 576 kgf    Basic Stat. Load Rating: 1634 kgf    Limiting Speed: 19000 RPM    Roller OD (Dr): 21.10    Roller ID (dr): 15.00    Shaft Pilot Dia. Range (d): 12.62 - 12.70 mm
Part Number: T-0127-0238-RC (Each)
7 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$16.23 AUD
$16.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

7 Available Now. Backorder if more than 7.
Thrust Roller Bearings - 14.27x25.4 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
14.27
mm

(Equiv. 0.562 in.)
OD (D Nom.)
25.40
mm

(Equiv. 1 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
621
kgf
Basic Stat. Load Rating
1835
kgf
Thrust Roller Bearings - 14.27x25.4 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 18000 RPM    Roller OD (Dr): 22.60    Roller ID (dr): 16.50    Shaft Pilot Dia. Range (d): 14.19 - 14.27 mm
Part Number: T-0143-0254-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$9.95 AUD
$9.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 14.27x25.4 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
14.27
mm

(Equiv. 0.562 in.)
OD (D Nom.)
25.40
mm

(Equiv. 1 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 14.27x25.4 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 621 kgf    Basic Stat. Load Rating: 1835 kgf    Limiting Speed: 18000 RPM    Roller OD (Dr): 22.60    Roller ID (dr): 16.50    Shaft Pilot Dia. Range (d): 14.19 - 14.27 mm
Part Number: T-0143-0254-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$9.95 AUD
$9.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 15.88x28.58 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
15.88
mm

(Equiv. 0.625 in.)
OD (D Nom.)
28.58
mm

(Equiv. 1.125 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
710
kgf
Basic Stat. Load Rating
2263
kgf
Thrust Roller Bearings - 15.88x28.58 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 16000 RPM    Roller OD (Dr): 25.90    Roller ID (dr): 18.00    Shaft Pilot Dia. Range (d): 15.80 - 15.88 mm
Part Number: T-0159-0286-RC (Each)
1 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$11.32 AUD
$11.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Thrust Roller Bearings - 15.88x28.58 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
15.88
mm

(Equiv. 0.625 in.)
OD (D Nom.)
28.58
mm

(Equiv. 1.125 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 15.88x28.58 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 710 kgf    Basic Stat. Load Rating: 2263 kgf    Limiting Speed: 16000 RPM    Roller OD (Dr): 25.90    Roller ID (dr): 18.00    Shaft Pilot Dia. Range (d): 15.80 - 15.88 mm
Part Number: T-0159-0286-RC (Each)
1 Available Now | Further orders can be expected around Wed, Jan 07, 2026
$11.32 AUD
$11.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thrust Roller Bearings - 17x30 mm - Rollers and Cage / 2 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
17.00
mm

(Equiv. 0.669 in.)
OD (D Nom.)
30.00
mm

(Equiv. 1.181 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
2.00
mm
Basic Dyn. Load Rating
897
kgf
Basic Stat. Load Rating
3089
kgf
Thrust Roller Bearings - 17x30 mm - Rollers and Cage / 2 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 14000 RPM    Roller OD (Dr): 29.00    Roller ID (dr): 19.00    Shaft Pilot Dia. Range (d): 16.93 - 17.00 mm
Part Number: T-0170-0300-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$7.77 AUD
$7.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 17x30 mm - Rollers and Cage / 2 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
17.00
mm

(Equiv. 0.669 in.)
OD (D Nom.)
30.00
mm

(Equiv. 1.181 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
2.00
mm
Thrust Roller Bearings - 17x30 mm - Rollers and Cage / 2 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 897 kgf    Basic Stat. Load Rating: 3089 kgf    Limiting Speed: 14000 RPM    Roller OD (Dr): 29.00    Roller ID (dr): 19.00    Shaft Pilot Dia. Range (d): 16.93 - 17.00 mm
Part Number: T-0170-0300-RC (Each)
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 07, 2026
$7.77 AUD
$7.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Roller Bearings - 19.05x31.75 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
19.05
mm

(Equiv. 0.75 in.)
OD (D Nom.)
31.75
mm

(Equiv. 1.25 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Basic Dyn. Load Rating
790
kgf
Basic Stat. Load Rating
2719
kgf
Thrust Roller Bearings - 19.05x31.75 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Limiting Speed: 14000 RPM    Roller OD (Dr): 29.00    Roller ID (dr): 21.30    Shaft Pilot Dia. Range (d): 18.97 - 19.05 mm
Part Number: T-0191-0318-RC (Each)
50 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$10.59 AUD
$19.22 AUD $10.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 50 available can be backordered.
Thrust Roller Bearings - 19.05x31.75 mm - Rollers and Cage / 1.98 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
19.05
mm

(Equiv. 0.75 in.)
OD (D Nom.)
31.75
mm

(Equiv. 1.25 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.98
mm
Thrust Roller Bearings - 19.05x31.75 mm - Rollers and Cage / 1.98 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel    Basic Dyn. Load Rating: 790 kgf    Basic Stat. Load Rating: 2719 kgf    Limiting Speed: 14000 RPM    Roller OD (Dr): 29.00    Roller ID (dr): 21.30    Shaft Pilot Dia. Range (d): 18.97 - 19.05 mm
Part Number: T-0191-0318-RC (Each)
50 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$10.59 AUD
$19.22 AUD $10.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

50 Available Now. Backorder if more than 50.
Thrust Roller Bearings - 50.8x69.85 mm - Rollers and Cage / 1.981 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
50.800
mm

(Equiv. 2 in.)
OD (D Nom.)
69.850
mm

(Equiv. 2.75 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.981
mm
Thrust Roller Bearings - 50.8x69.85 mm - Rollers and Cage / 1.981 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel
Part Number: T-0508-0699-RC (Each)
2 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$27.41 AUD
$27.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.

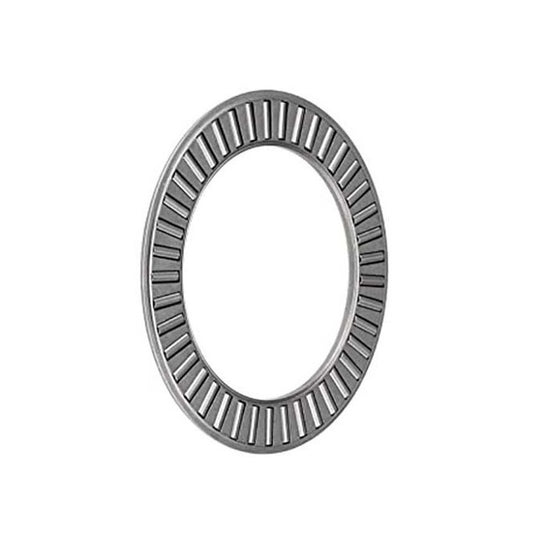

Thrust Roller Bearings - 50.8x69.85 mm - Rollers and Cage / 1.981 mm Cage and Rollers Only - Carbon Steel Bearing
Bore (d Nom.)
50.800
mm

(Equiv. 2 in.)
OD (D Nom.)
69.850
mm

(Equiv. 2.75 in.)
Washer or Bearing
Rollers and Cage

Nom. Thickness (B Max)
1.981
mm
Thrust Roller Bearings - 50.8x69.85 mm - Rollers and Cage / 1.981 mm - Carbon Steel Cage and Rollers Only
Material: Carbon Steel
Part Number: T-0508-0699-RC (Each)
2 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$27.41 AUD
$27.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
