Collection: Bearings - Thrust Ball - Grooved - Chrome Steel

Bearings (With Images)

Thrust Ball

Grooved

17 Products in this selection

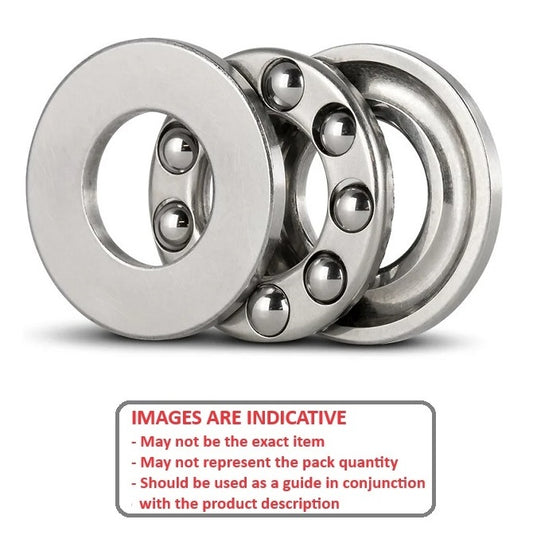

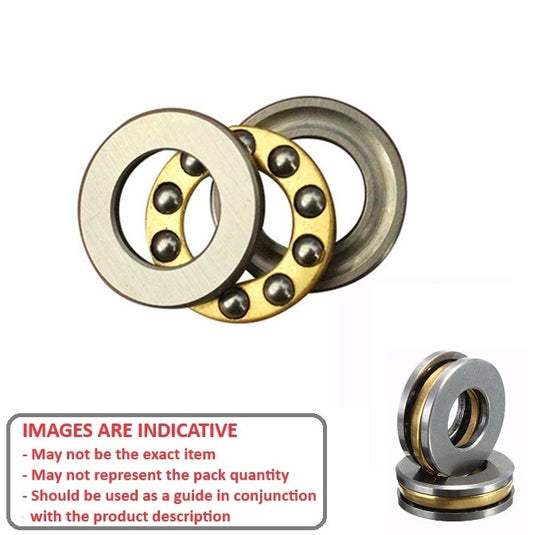

3 Piece Thrust Bearings Open Type
These bearings are designed so that when one ring turns, the other remains stationary.
Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

A more comprehensive listing may be found on the MBA Minibearings main store at Bearings - Thrust Ball - Grooved - Chrome Steel.

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
4.000 mm	9.000 mm	4.000 mm	4.200 mm	9.000 mm	83 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0040-0090-G Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
4.000 mm	9.000 mm	4.000 mm	4.200 mm
Material: Chrome Steel OD (D2): 9.000 mm Dynamic Load Capacity: 83 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0040-0090-G Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each View the product page first if you are unsure.
T-0040-0090-G --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel T-0040-0090-G --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per 4 Available Now
5.000 mm	10.000 mm	4.000 mm	5.200 mm	10.000 mm	92 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0100-G Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel 80 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
5.000 mm	10.000 mm	4.000 mm	5.200 mm
Material: Chrome Steel OD (D2): 10.000 mm Dynamic Load Capacity: 92 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0100-G Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel 80 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
T-0050-0100-G --- Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel T-0050-0100-G --- Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per 80 Available Now
6.000 mm	12.000 mm	4.500 mm	6.200 mm	12.000 mm	160 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0120-G Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
6.000 mm	12.000 mm	4.500 mm	6.200 mm
Material: Chrome Steel OD (D2): 12.000 mm Dynamic Load Capacity: 160 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0120-G Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel 4 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0120-G --- Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel T-0060-0120-G --- Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per 4 Available Now
6.000 mm	14.000 mm	5.000 mm	6.200 mm	13.800 mm	192 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0140-G-ST Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 4 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
6.000 mm	14.000 mm	5.000 mm	6.200 mm
Material: Chrome Steel OD (D2): 13.800 mm Dynamic Load Capacity: 192 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0140-G-ST Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 4 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
T-0060-0140-G-ST --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Sale T-0060-0140-G-ST --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per 4 Available Now Sale
6.000 mm	14.000 mm	5.000 mm	6.200 mm	14.000 mm	192 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0060-0140-G-BR Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 96 Available Now \| Further orders can be expected around Sun, Aug 17, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each
6.000 mm	14.000 mm	5.000 mm	6.200 mm
Material: Chrome Steel OD (D2): 14.000 mm Dynamic Load Capacity: 192 kgf Cage Type: Brass
Part Number: T-0060-0140-G-BR Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 96 Available Now \| Further orders can be expected around Sun, Aug 17, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0140-G-BR --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel T-0060-0140-G-BR --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 96 Available Now
7.000 mm	13.000 mm	4.500 mm	7.200 mm	12.800 mm	156 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0070-0130-G-BR Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel 8 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per Each
7.000 mm	13.000 mm	4.500 mm	7.200 mm
Material: Chrome Steel OD (D2): 12.800 mm Dynamic Load Capacity: 156 kgf Cage Type: Brass
Part Number: T-0070-0130-G-BR Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel 8 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per Each
T-0070-0130-G-BR --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Sale T-0070-0130-G-BR --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per 8 Available Now Sale
7.000 mm	15.000 mm	5.000 mm	7.200 mm	15.000 mm	224 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0070-0150-G-BR Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 70 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per Each
7.000 mm	15.000 mm	5.000 mm	7.200 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 224 kgf Cage Type: Brass
Part Number: T-0070-0150-G-BR Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 70 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0150-G-BR --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Sale T-0070-0150-G-BR --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per 70 Available Now Sale
7.000 mm	15.000 mm	5.000 mm	7.200 mm	15.000 mm	224 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0070-0150-G-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 53 units (106 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per Per 2
7.000 mm	15.000 mm	5.000 mm	7.200 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 224 kgf Cage Type: Steel
Part Number: T-0070-0150-G-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 53 units (106 pcs) Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per Per 2
T-0070-0150-G-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Sale T-0070-0150-G-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per 53 Available Now Sale
7.000 mm	17.000 mm	6.000 mm	7.200 mm	17.000 mm	270 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0170-G Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel 82 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each
7.000 mm	17.000 mm	6.000 mm	7.200 mm
Material: Chrome Steel OD (D2): 17.000 mm Dynamic Load Capacity: 270 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0170-G Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel 82 Available Now \| Further orders can be expected around Wed, May 28, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0170-G --- Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel Sale T-0070-0170-G --- Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per 82 Available Now Sale
8.000 mm	14.000 mm	4.000 mm	8.200 mm	14.000 mm	391 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0080-0140-G-BR-ECO Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel 182 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each
8.000 mm	14.000 mm	4.000 mm	8.200 mm
Material: Chrome Steel OD (D2): 14.000 mm Dynamic Load Capacity: 391 kgf Cage Type: Brass
Part Number: T-0080-0140-G-BR-ECO Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel 182 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0140-G-BR-ECO --- Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel T-0080-0140-G-BR-ECO --- Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per 182 Available Now
8.000 mm	16.000 mm	5.000 mm	8.200 mm	15.800 mm	391 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0080-0160-G-ST Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel 61 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each
8.000 mm	16.000 mm	5.000 mm	8.200 mm
Material: Chrome Steel OD (D2): 15.800 mm Dynamic Load Capacity: 391 kgf Cage Type: Steel
Part Number: T-0080-0160-G-ST Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel 61 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-G-ST --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Sale T-0080-0160-G-ST --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per 61 Available Now Sale
8.000 mm	19.000 mm	7.000 mm	8.200 mm	18.800 mm	347 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel OR Brass
Part Number: T-0080-0190-G Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel 41 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
8.000 mm	19.000 mm	7.000 mm	8.200 mm
Material: Chrome Steel OD (D2): 18.800 mm Dynamic Load Capacity: 347 kgf Cage Type: SAE 52100 Chrome Steel OR Brass
Part Number: T-0080-0190-G Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel 41 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0190-G --- Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel T-0080-0190-G --- Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per 41 Available Now
9.000 mm	20.000 mm	7.000 mm	9.200 mm	20.000 mm	339 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0090-0200-G-BR Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel 545 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per Each
9.000 mm	20.000 mm	7.000 mm	9.200 mm
Material: Chrome Steel OD (D2): 20.000 mm Dynamic Load Capacity: 339 kgf Cage Type: Brass
Part Number: T-0090-0200-G-BR Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel 545 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per Each
T-0090-0200-G-BR --- Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel Sale T-0090-0200-G-BR --- Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per 545 Available Now Sale
10.000 mm	18.000 mm	5.500 mm	10.200 mm	18.000 mm	193 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0100-0180-G-BR Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel 128 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each
10.000 mm	18.000 mm	5.500 mm	10.200 mm
Material: Chrome Steel OD (D2): 18.000 mm Dynamic Load Capacity: 193 kgf Cage Type: Brass
Part Number: T-0100-0180-G-BR Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel 128 Available Now \| Further orders can be expected around Fri, May 23, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each View the product page first if you are unsure.
T-0100-0180-G-BR --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel T-0100-0180-G-BR --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per 128 Available Now
12.000 mm	21.000 mm	5.000 mm	12.200 mm	21.000 mm
Material: Chrome Steel Cage Type: Steel
Part Number: T-0120-0210-G-ST-ECO (2 Pcs) Thrust Ball Bearings - 12x21x5 mm / 12.2 mm - Chrome Steel 31 units (62 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 2
12.000 mm	21.000 mm	5.000 mm	12.200 mm
Material: Chrome Steel OD (D2): 21.000 mm Cage Type: Steel
Part Number: T-0120-0210-G-ST-ECO (2 Pcs) Thrust Ball Bearings - 12x21x5 mm / 12.2 mm - Chrome Steel 31 units (62 pcs) Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 2 View the product page first if you are unsure.
T-0120-0210-G-ST-ECO (2 Pcs) --- Thrust Ball Bearings - 12x21x5 mm / 12.2 mm - Chrome Steel T-0120-0210-G-ST-ECO (2 Pcs) --- Thrust Ball Bearings - 12x21x5 mm / 12.2 mm - Chrome Steel Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per 31 Available Now
20.000 mm	40.000 mm	14.000 mm	22.000 mm	40.000 mm	1998 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0200-0400-G-51204-ECO Thrust Ball Bearings - 20x40x14 mm / 22 mm - Chrome Steel 88 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per Each
20.000 mm	40.000 mm	14.000 mm	22.000 mm
Material: Chrome Steel OD (D2): 40.000 mm Dynamic Load Capacity: 1998 kgf Cage Type: Steel
Part Number: T-0200-0400-G-51204-ECO Thrust Ball Bearings - 20x40x14 mm / 22 mm - Chrome Steel 88 Available Now \| Further orders can be expected around Sat, May 17, 2025 Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per Each View the product page first if you are unsure.
T-0200-0400-G-51204-ECO --- Thrust Ball Bearings - 20x40x14 mm / 22 mm - Chrome Steel Sale T-0200-0400-G-51204-ECO --- Thrust Ball Bearings - 20x40x14 mm / 22 mm - Chrome Steel Regular price $3.86 AUD Regular price ~~$4.64 AUD~~ Sale price $3.86 AUD Unit price per 88 Available Now Sale
30.000 mm	47.000 mm	11.000 mm	32.000 mm	47.000 mm	430 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0300-0470-G-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Chrome Steel 1 Available Now \| Further orders can be expected around Wed, Apr 30, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Each
30.000 mm	47.000 mm	11.000 mm	32.000 mm
Material: Chrome Steel OD (D2): 47.000 mm Dynamic Load Capacity: 430 kgf Cage Type: Steel
Part Number: T-0300-0470-G-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Chrome Steel 1 Available Now \| Further orders can be expected around Wed, Apr 30, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Each View the product page first if you are unsure.
T-0300-0470-G-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Chrome Steel T-0300-0470-G-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Chrome Steel Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per 1 Available Now
