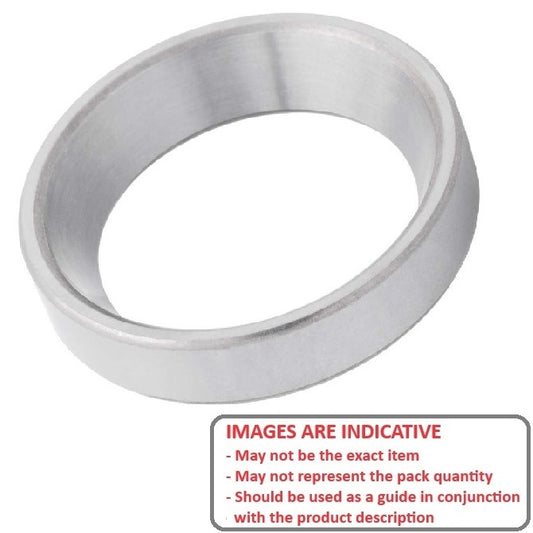

Bearings - Tapered Roller Cup

5 Products in this selection
  • Replacements for existing tapered roller cups (outer part). Match with part number on your existing bearing. It is recommended that you change both cup and cone whenever possible.
Additional resources:
Tapered Roller Cones
Tapered Roller Imperial Sets
Tapered Roller Metric Sets
Outside Diameter Cup Width Matching Cones rs1 min rs2 min Indicative
49.225
mm 		17.462
mm 		09067, 09074, 09078
 1.300
mm 		1.500
mm 		1161111 | 09196 --- Bearings - 49.225 mm x 17.462 mm 09067, 09074, 09078
Material: Chrome Steel Cup    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09196 Bearings - 49.225 mm x 17.462 mm 09067, 09074, 09078
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$25.14 AUD
$25.14 AUD
Each
Outside Diameter Cup Width Matching Cones Indicative
49.225
mm 		17.462
mm 		09067, 09074, 09078
 1161111 | 09196 --- Bearings - 49.225 mm x 17.462 mm 09067, 09074, 09078
Material: Chrome Steel Cup    rs1 min: 1.300 mm    rs2 min: 1.500 mm    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09196 Bearings - 49.225 mm x 17.462 mm 09067, 09074, 09078
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$25.14 AUD
$25.14 AUD
Each
93.264
mm 		23.812
mm 		3.500
mm 		3.300
mm 		1185102 | 3720 --- Bearings - 93.264 mm x 23.812 mm
Material: Chrome Steel Cup    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3720 Bearings - 93.264 mm x 23.812 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$36.05 AUD
$36.05 AUD
Each
93.264
mm 		23.812
mm 		1185102 | 3720 --- Bearings - 93.264 mm x 23.812 mm
Material: Chrome Steel Cup    rs1 min: 3.500 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3720 Bearings - 93.264 mm x 23.812 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$36.05 AUD
$36.05 AUD
Each
122.238
mm 		29.718
mm 		HM212047
 7.000
mm 		3.300
mm 		1194582 | HM212011 --- Bearings - 122.238 mm x 29.718 mm HM212047
Material: Chrome Steel Cup    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212011 Bearings - 122.238 mm x 29.718 mm HM212047
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$55.32 AUD
$55.32 AUD
Each
122.238
mm 		29.718
mm 		HM212047
 1194582 | HM212011 --- Bearings - 122.238 mm x 29.718 mm HM212047
Material: Chrome Steel Cup    rs1 min: 7.000 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212011 Bearings - 122.238 mm x 29.718 mm HM212047
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$55.32 AUD
$55.32 AUD
Each
146.050
mm 		31.750
mm 		655, 661, 663
 3.500
mm 		3.300

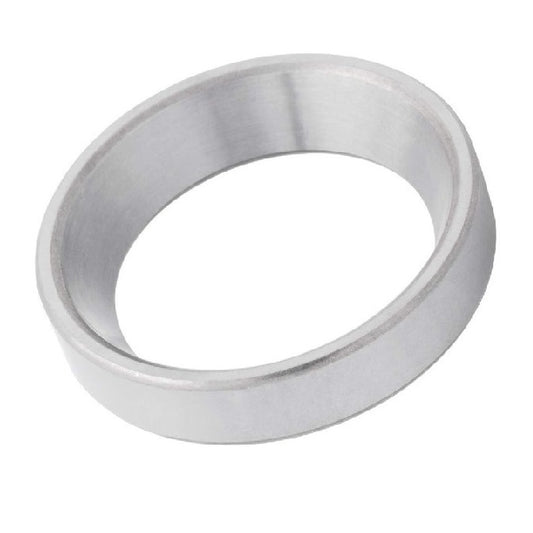

mm 		1200050 | 653 --- Bearings - 146.05 mm x 31.75 mm 655, 661, 663
Material: Chrome Steel Cup    Basic Dynamic Load Rating: 188000 Cr (N)    Basic Static Load Rating: 260000 Cor (N)    Limiting Speed with Grease: 2500 RPM
Part Number: 653 Bearings - 146.05 mm x 31.75 mm 655, 661, 663
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$90.50 AUD
$90.50 AUD
Each
146.050
mm 		31.750
mm 		655, 661, 663
 1200050 | 653 --- Bearings - 146.05 mm x 31.75 mm 655, 661, 663
Material: Chrome Steel Cup    rs1 min: 3.500 mm    rs2 min: 3.300 mm    Basic Dynamic Load Rating: 188000 Cr (N)    Basic Static Load Rating: 260000 Cor (N)    Limiting Speed with Grease: 2500 RPM
Part Number: 653 Bearings - 146.05 mm x 31.75 mm 655, 661, 663
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$90.50 AUD
$90.50 AUD
Each
147.000
mm 		32.500
mm 		HM218248
 7.000
mm 		3.500
mm 		1200096 | HM218210 --- Bearings - 147 mm x 32.5 mm HM218248
Material: Chrome Steel Cup    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218210 Bearings - 147 mm x 32.5 mm HM218248
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$77.14 AUD
$77.14 AUD
Each
147.000
mm 		32.500
mm 		HM218248
 1200096 | HM218210 --- Bearings - 147 mm x 32.5 mm HM218248
Material: Chrome Steel Cup    rs1 min: 7.000 mm    rs2 min: 3.500 mm    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218210 Bearings - 147 mm x 32.5 mm HM218248
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$77.14 AUD
$77.14 AUD
Each
